Appendix c (standard drawings) – Exide Technologies Section 94.30 User Manual
Page 84
APPENDIX C (Standard Drawings)
80

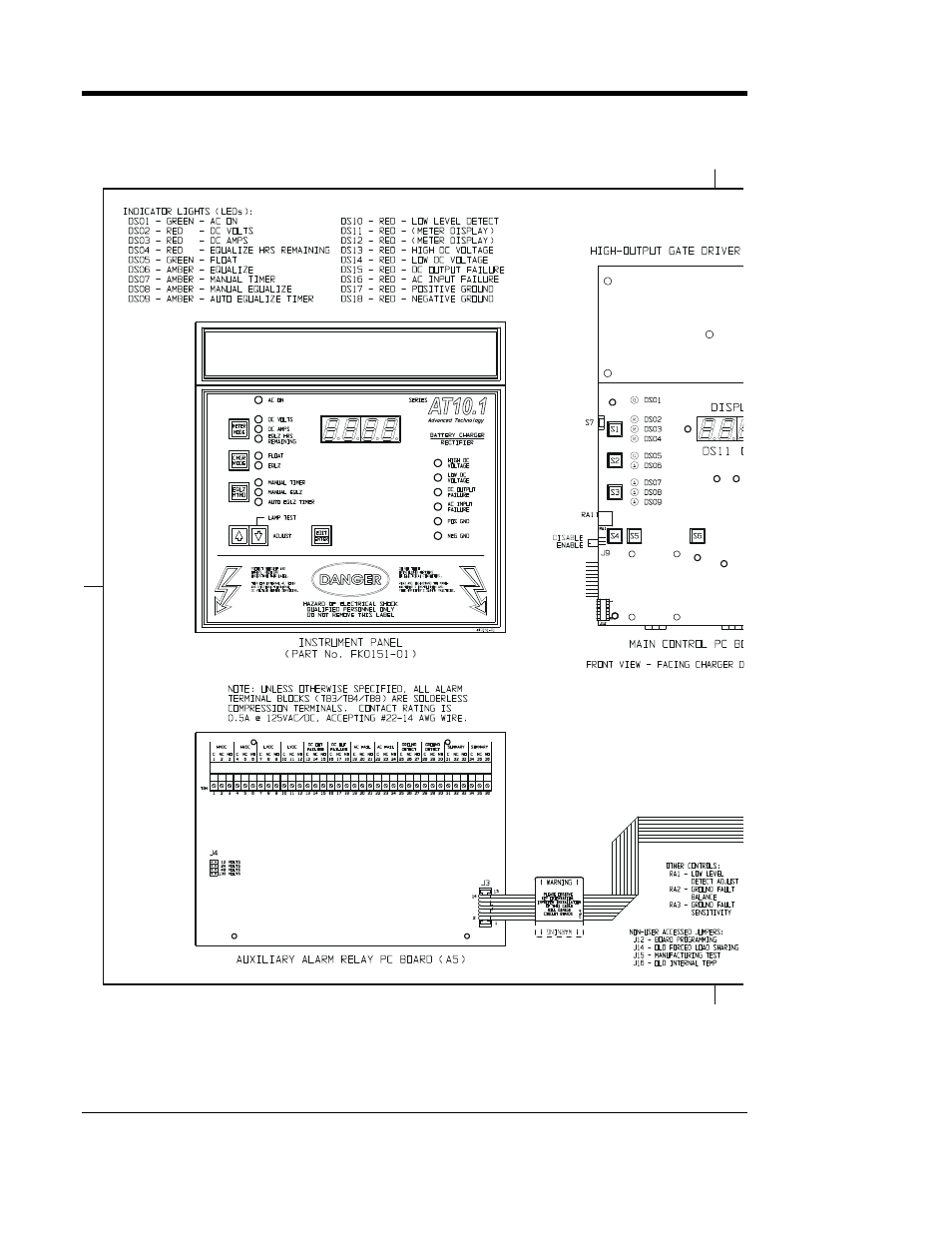

Instrument Panel / PC Board Detail: AT10.1 Group II Battery Charger
w/Optional Auxiliary Alarm Relay Board (
JE5030-29)
Note: This instrument panel drawing (
JE5030-29) depicts the optional Auxiliary Alarm Relay
PC Board (A5), which provides two (2) sets of individual form-c contacts (TB4) for all alarm
conditions. Standard AT10.1 battery chargers feature one (1) set of form-c summary (common)
alarm contacts (TB3).
