4 E-flite Super Cub 25e ARF Assembly Manual

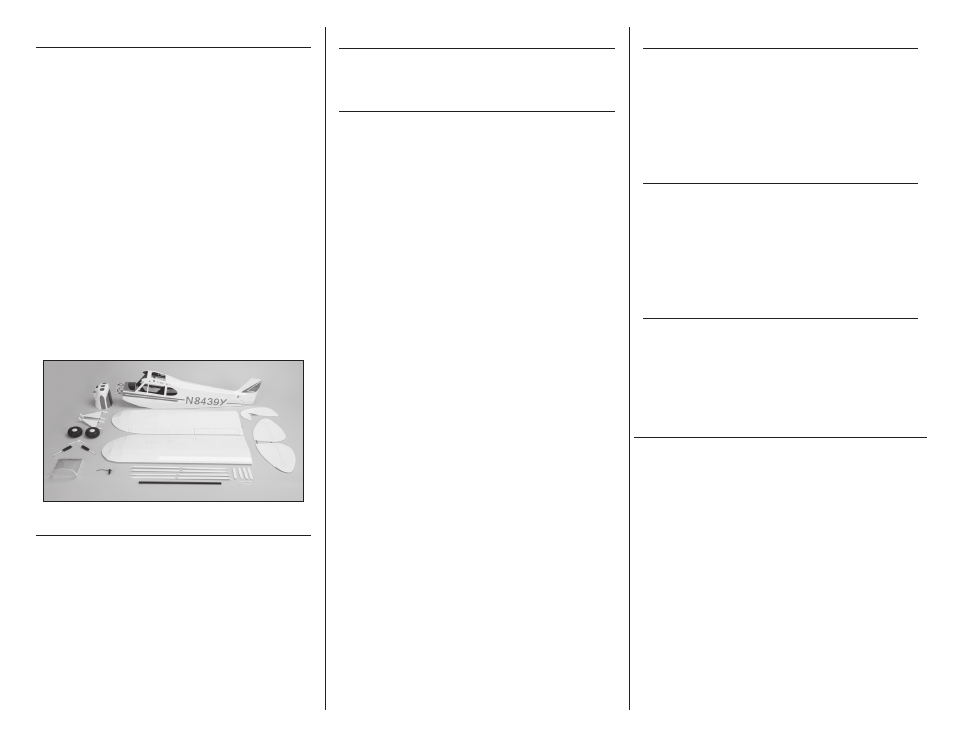

Contents of Kit/parts Layout
Replacement parts
EFL460001 Wing Set
EFL460002 Fuselage
EFL460003 Tail Set
EFL460004 Rudder
EFL460005 Cowling
EFL460006 Windshield
EFL460007 Top Window
EFL460008 Window Set
EFL460009 Wing Tube
EFL460010 Wheel Set
EFL460011 Tail Wheel
EFL460012 Pushrod Set
EFL460013 Seat Set
EFL460014 Strut Set
EFL460015 Accessory Set
EFL460016 Landing Gear
EFL460017 Hardware Set
EFL460019 Fuselage Hatch
EFL460020 Servo Hatch
Covering Colors
White HANU870
True Red HANU866
hardware/Accessory Sizes
Wheel diameter 3.35-inch (85mm)
Wing bolts 1/4-20 x 5/8-inch
Recommended Radio Equipment
You will need a minimum 5-channel transmitter,
receiver and six servos. You can choose to purchase
a complete radio system, or if you are using an
existing transmitter, purchase the other required
equipment separately. We recommend the crystal-free,
interference-free Spektrum ™ DX8 2.4GHz DSM2 ™ /
DSMX ™ 8-channel system.
If you own the Spektrum DX8 radio or are using a
different DSM2 ™ /DSMX ™ radio, just add the AR7010
7-channel DSMX receiver and six Spektrum A5030
mini digital servos.
Complete Radio System
SPM8800 DX8 DSMX 8CH system
Or purchase Separately
SPMAR7010 AR7010 7CH DSMX ™ Receiver
SPMSA5030 A5030 Mini Digital Aircraft
Servo (6)
SPMA3051 6-inch (152mm)
Servo Extension (2)
(Aileron wing extensions)
SPMA3052 9-inch (229mm)
Servo Extension
(ESC extension)
SPMA3053 12-inch (305mm)
Servo Extension (2)
(Aileron to fuse extensions)
SPMA3050 3-inch (152mm) Servo
Extension
(Bind plug extension)
SPMA3058 Standard Y-Harness
(Receiver to flap fuselage
extension)
power 25 Motor Setup
EFLM4025A Power 25 BL Outrunner
Motor, 870Kv
EFLA1060L 60-Amp Pro Switch-Mode
BEC Brushless ESC
EFLB32004S30 3200mAh 4S 14.8V 30C Li-Po,
12AWG EC3
APC13065E 13 x 6.5E Electric Propeller
power 32 Motor Setup
EFLM4032A Power 32 Brushless Outrunner
Motor, 770Kv
EFLA1060 60-Amp Pro Switch-Mode BEC
Brushless ESC
EFLB32004S30 3200mAh 4S 14.8V 30C Li-Po,
12AWG EC3
APC13065E 13 x 6.5E Electric Propeller
Optional Accessories
EFLA110 Power Meter
EFLC3020 Celectra ™ 200W DC Multi-
Chemistry Battery Charger
EFLSP200 2-inch Aluminum Spinner with
4mm and 5mm Collets
EFL460018 Cockpit Kit
LIGhTING KIT
EFLA600 Universal Light Kit Controller
EFLA602 Clear LED Solid (2ea) (2)
EFLA604 Green LED Solid (2ea)
EFLA601 Red LED Solid (2ea)
EFLA620 Extension 36-inch (2ea)
EFLA619 Extension 24-inch (2ea)
EFLA618 Extension 18-inch (2ea) (2)
EFLA617 Y-Harness Heavy Duty 6-inch
DUB435 DuBro 1/16-inch Shrinkwrap
