28 E-flite Super Cub 25e ARF Assembly Manual

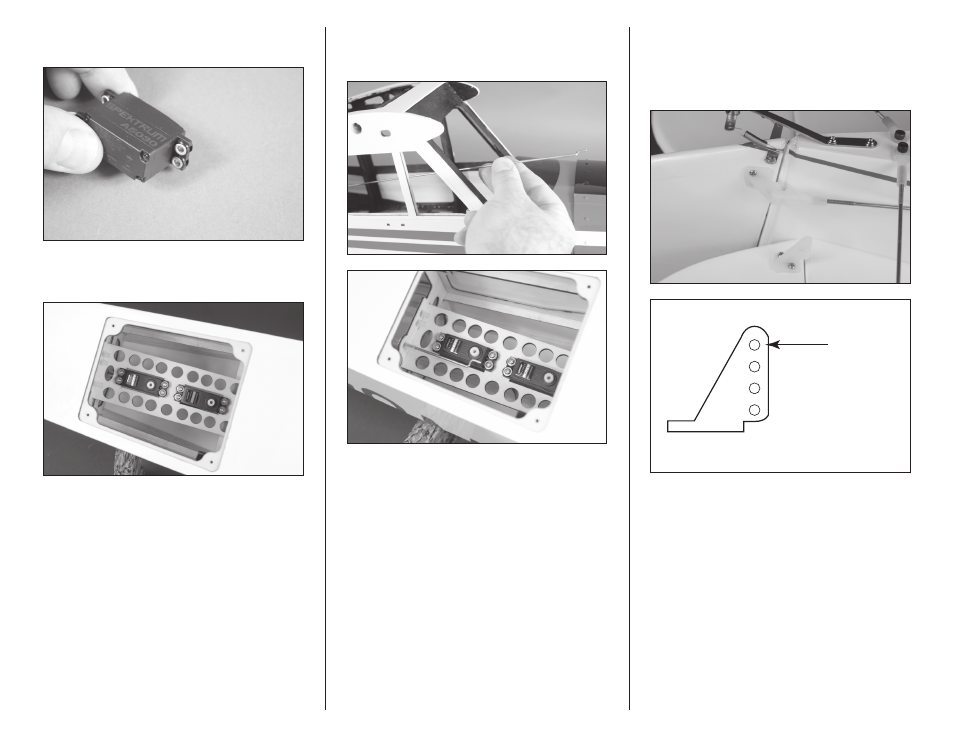

 4. Prepare the rudder and elevator servo by
installing the servo grommets and brass eyelets.
 5. Install the rudder and elevator servos using eight
servo mounting screws and a #1 Phillips screwdriver.
 6. Insert the rudder pushrod into the tube in the
fuselage. It is easiest to start from outside the
fuselage when inserting the pushrod.
 7. Slide the small piece of tubing in a nylon clevis.
Thread the clevis 12-turns on the rudder pushrod
wire. This will provide enough thread in the clevis to
be secure and allow for adjustment of the linkage.
Connect the clevis to the hole shown in the drawing.
Drawing not to scale
Rudder
Attach clevis
to the
outer hole
