10 E-flite Super Cub 25e ARF Assembly Manual

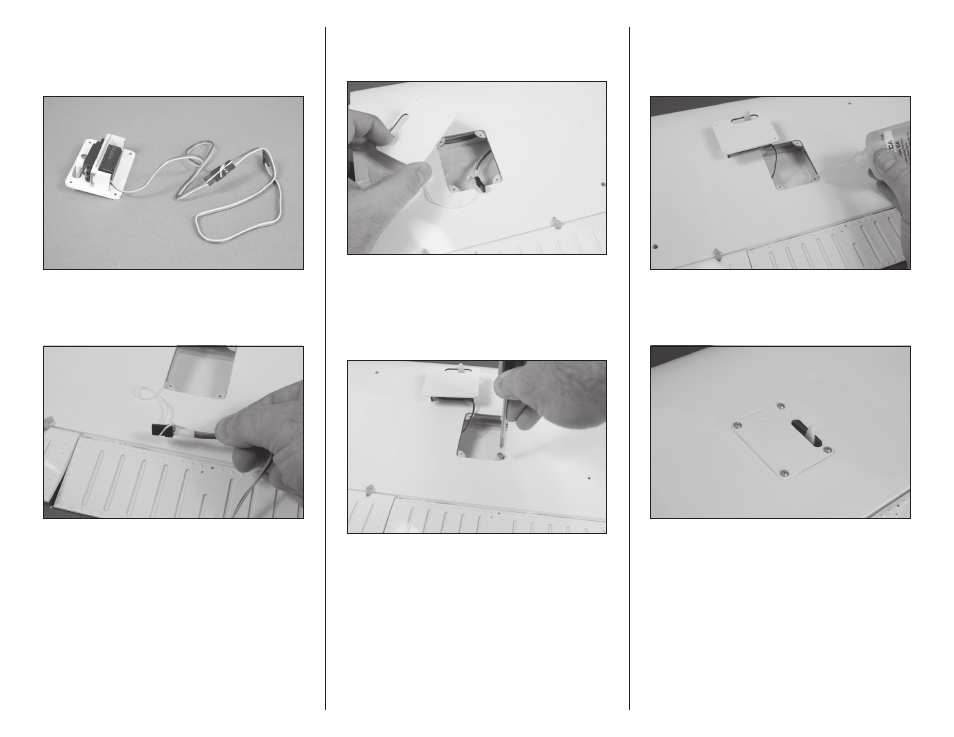

 9. Connect a 6-inch (152mm) servo extension to
the servo lead. Use a string or piece of dental floss
to secure the leads so they do not accidentally
disconnect inside the wing.
 10. A string is located in the wing to pull the servo
lead through the wing. Tie the string to the end of
the servo lead as shown.
 11. Remove the flap servo cover and use the string
to pull the aileron extension through the area of the
hatch for the flap servo.
 12. Use a #1 Phillips screwdriver to thread
a 2mm x 8mm washer-head self-tapping screw
into each of the holes to cut threads in the
surrounding wood. Remove the screw before
moving to the next step.
 13. Apply 2–3 drops of thin CA in each of
the holes to harden the surrounding wood. This will
harden the threads so the screws do not easily strip
the surrounding wood.
 14. Install the servo cover using four 2mm x
8mm washer-head, self-tapping screws and a #1
Phillips screwdriver.
