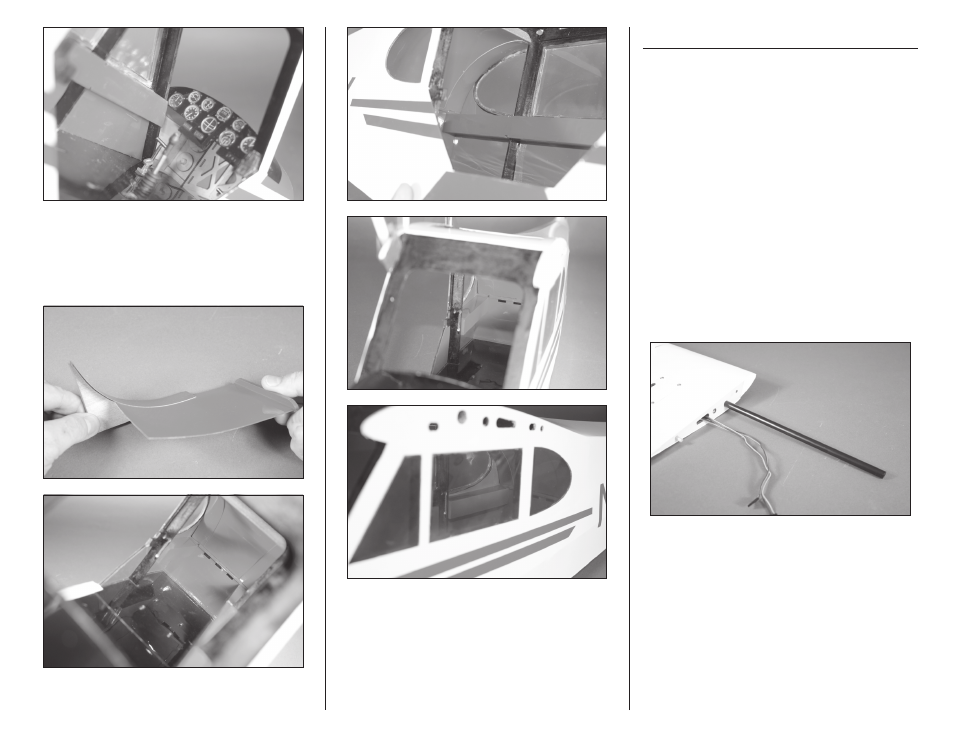

 2. When installing the upper rear pieces, note that
the piece that fits in the center will slide into the
groove on the side pieces. Make sure the position of
the side pieces is such that the center piece can be
installed.
Wing and Wing Strut Installation
Required parts
Wing panel (right and left)
Fuselage assembly
Nylon wing bolt (2) Wing strut, front (right and left)
Jury strut fitting (4) Wing strut, rear (right and left)
Jury strut, front (2) Jury strut, rear (2)
Jury strut brace (2) Aluminum wing tube
4-40 lock nut (12) #4 washer (16)
4-40 x 1/2-inch socket head cap screw (4)
4-40 x 3/8-inch socket head cap screw (12)
Required Tools and Adhesives
Hex wrench: 3/32-inch Nut driver: 1/4-inch
 1. Slide the aluminum wing tube into the socket in
the wing panel. The tube socket has a cap on it,
so do not force the tube in any farther than it will
easily slide.
