31 E-flite Super Cub 25e ARF Assembly Manual
Servo hatch Cover Installation
Required parts
Fuselage assembly Servo hatch cover
2.5mm x 8mm washer-head self-tapping screw (4)
Required Tools and Adhesives
Thin CA Phillips screwdriver: #1

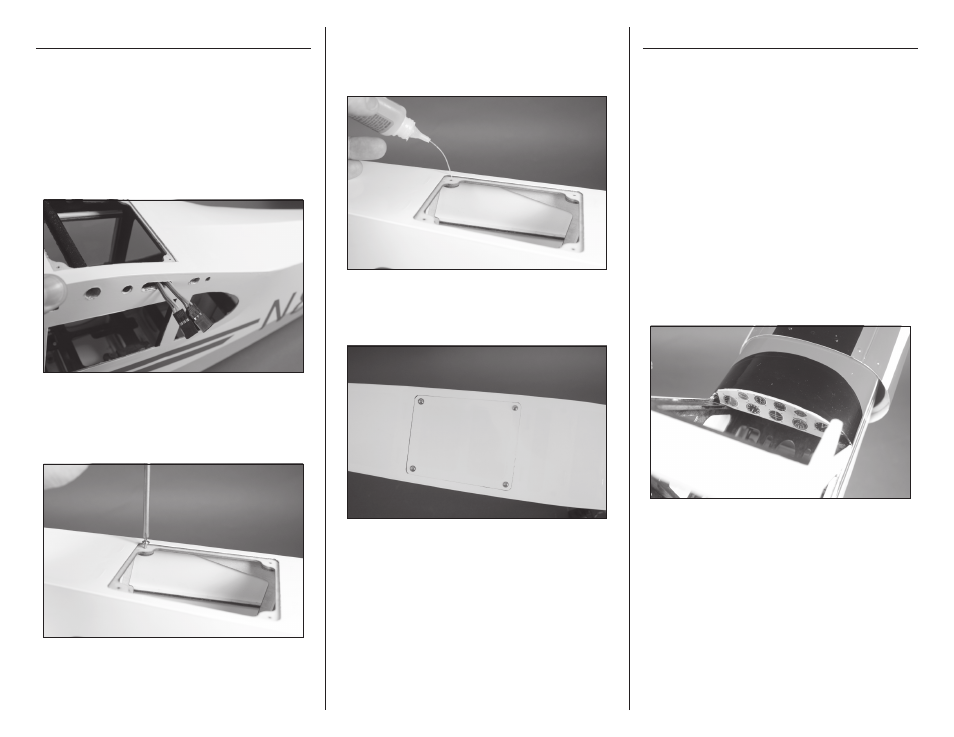

 1. Route the servo leads for the ailerons and
flaps outside the fuselage as shown.
 2. Use a #1 Phillips screwdriver to thread a 2.5mm x
8mm washer-head self-tapping screw into each of the
holes to cut threads in the surrounding wood. Remove
the screw before moving to the next step.
 3. Apply 2–3 drops of thin CA in each of the holes
to harden the surrounding wood. This will harden
the threads so the screws do not easily strip the
surrounding wood.
 4. Install the servo cover using four 2.5mm x
8mm washer-head self-tapping screws and a
#1 Phillips screwdriver.
Window and Seat Installation
Required parts
Fuselage assembly Instrument panel decal
Windscreen
Upper window
Seat base (2) Seat (2)
2mm x 8mm self-tapping screw (4)
Side window, front (right and left)
Side window, center (right and left)
Side window, rear (right and left)
Hardwood windscreen support (2)
Required Tools and Adhesives
Thin CA Phillips screwdriver: #1
Medium CA Canopy glue
Scissors
 1. Use scissors to cut the instrument panel from the
decal sheet. Apply the decal in the fuselage.
If you are installing the optional cockpit kit
(EFL460018), you can skip step 1.
