29

5.2

Vortec Cooled XDS Process Analytics Instrument

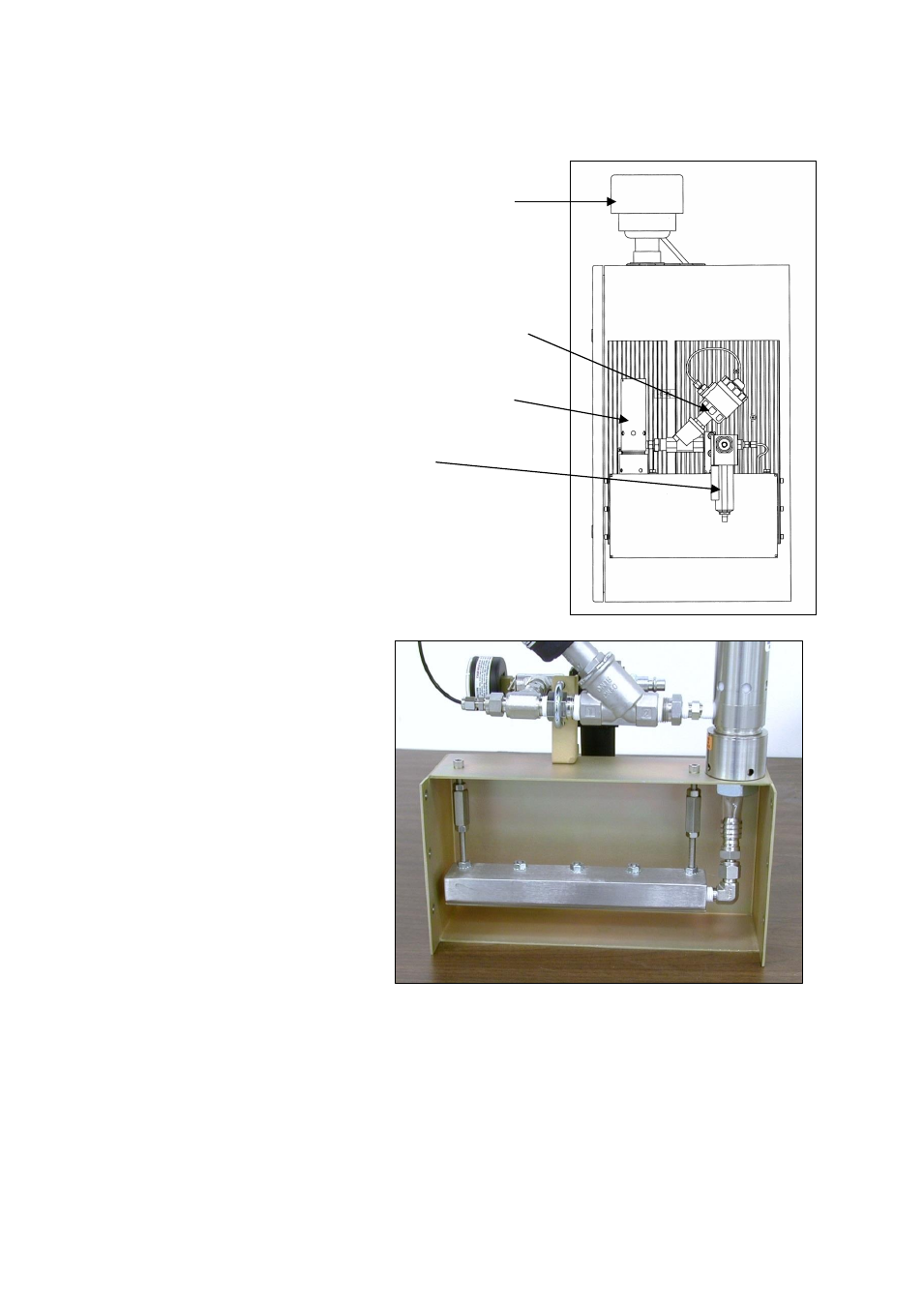

The Vortec cooled instrument has a
Vortec assembly on the right side,
attached to the heat sink. An air
curtain (inside the horizontal
housing) directs the cooling flow
over the full width of the heat sink.

This instrument also has the vent for
the purge system, mounted on top
of the cabinet.

Vent Housing

Actuation Valve

Vortec Cooler

Filter

This photo shows the inside of the
Vortec cooler, where the air curtain
is released.

The air curtain blows over the full
width of the heat sink, to provide
maximum cooling capacity.
