©2014 DJI. All Rights Reserved. 44 |

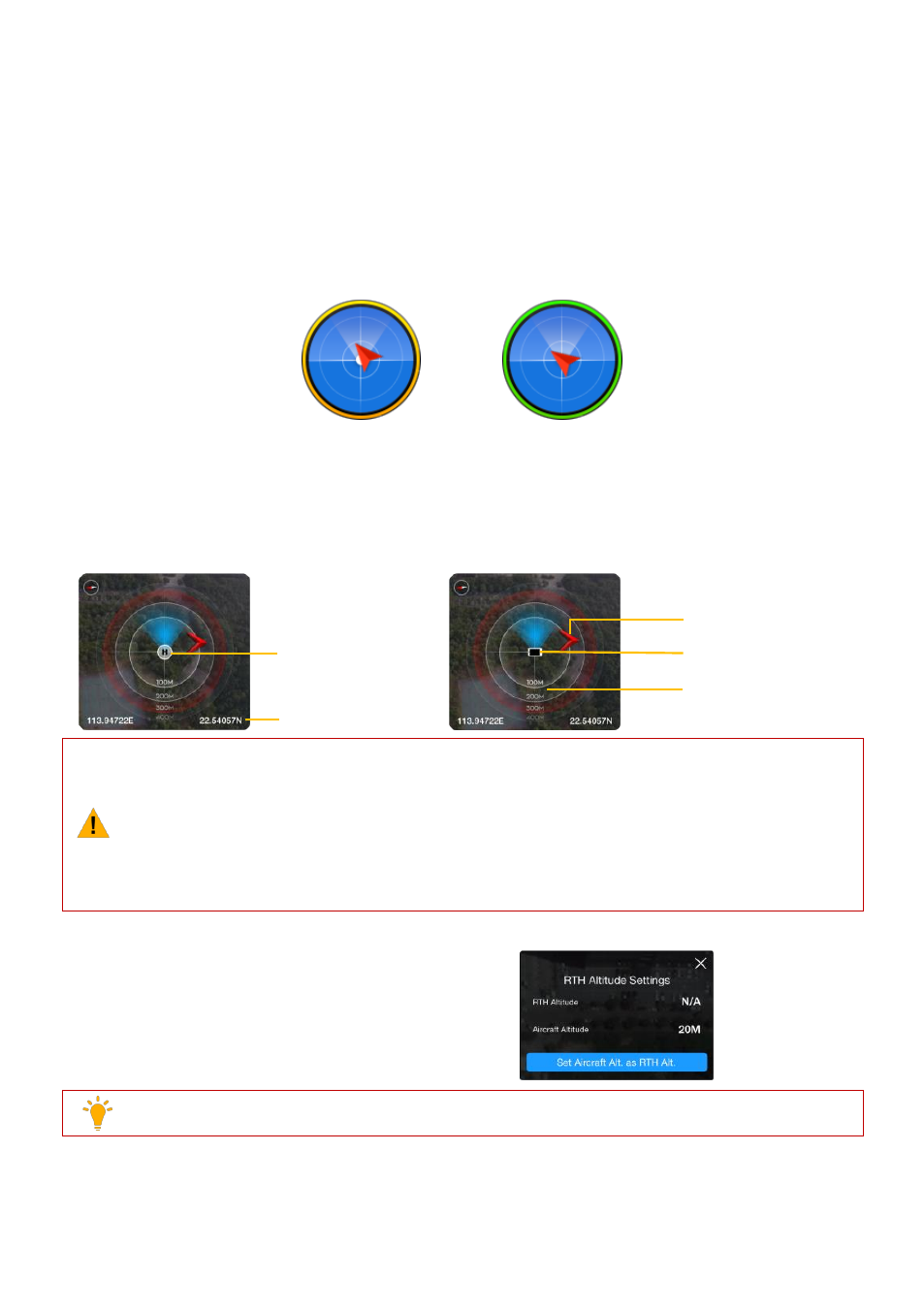

[3] Flight Attitude and Radar Function
Flight attitude is indicated by the flight attitude icon.
(1) The red arrow shows which direction the PHANTOM 2 VISION is facing.
(2) Light blue and dark blue areas indicate pitch.
(3) Pitching of the boundary between light blue and dark blue area shows roll angle.
(4) An orange circle around the radar indicates that the dynamic home point is not available.
A green circle around the radar indicates that the dynamic home point is available and a new home point has been set.
Tap the flight attitude icon to turn on the radar function. Home is located in the center of the radar and the red
icon indicates the PHANTOM 2 VISION’s current heading, direction, and approximate distance from home.
The current longitude and latitude of the aircraft is displayed on the bottom of the radar. Tap the flight attitude
icon again to disable the radar.
(1)
(2)
By default, the center of the radar indicates the home point that has been recorded by the
PHANTOM 2 VISION. Tap the center of the radar to switch the center to your mobile device's
current location.
If your mobile device contains a compass, the top portion of the Radar is the direction you are
pointing. If not, the radar will be oriented due north.
[4] Flight Parameters
Tap to set return home (RTH) altitude.
Distance: Horizontal distance from home point.
Altitude: Vertical distance from home point.
Speed: Horizontal flying speed.
Distance will appear as N/A if the PHANTOM 2 VISION is not Ready to Fly.
[5] Wi-Fi Signal Intensity
Indicates camera is connected to your mobile device and Wi-Fi is working normally.
PHANTOM 2 VISION
Mobile Device Location
Distance
Home Point
Longitude & Latitude
