FS2 v2.1r1 www.aja.com 92

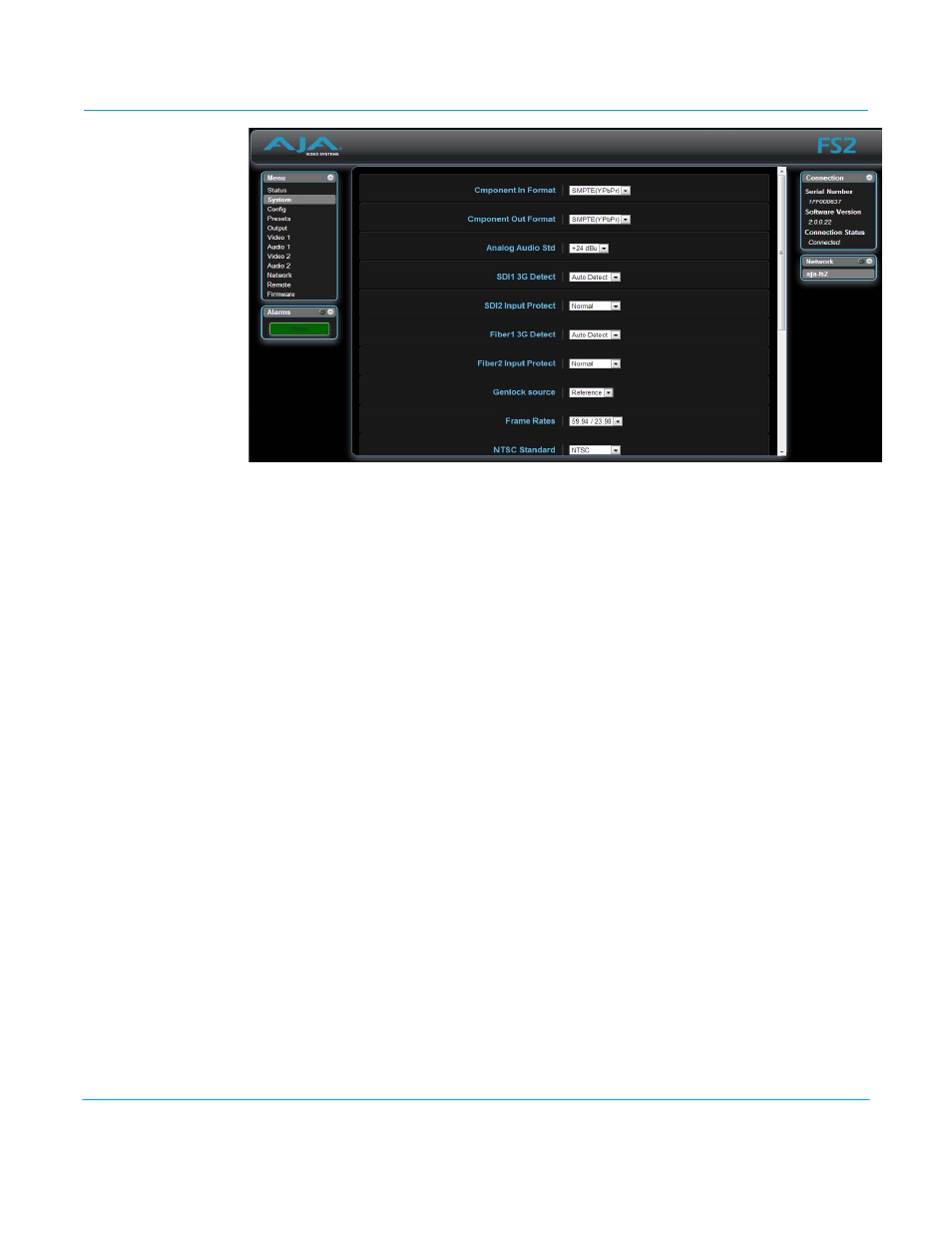

System Screen
The SYSTEM web interface screen includes parameters for setting up various FS2 system
related features (video formats, audio level standards, etc.).
The System screen parameters are identical to those available on the FS2 front panel.
These include:
• Component In Format (see “1 Component In Format” on page 53 )
• Component Out Format (see “2 Component Out Format” on page 54 )
• Analog Audio Std (see “3 Analog Audio Std” on page 54 )
• SDI1 3G Detect (see “4 SDI1 3G Detect” on page 54 )
• SDI2 Input Protect (see “5 SDI2 Input Protect” on page 55 )
• Fiber1 3G Detect (see “6 Fiber1 3G Detect” on page 56 )
• Fiber2 Input Protect (see “7 Fiber2 Input Protect” on page 56 )
• Genlock Source (see “8 Genlock Source” on page 56 )
• Frame Rates (see “9 Frame Rates” on page 56 )
• NTSC Standard (see “10 NTSC Standard” on page 57 )
• Composite Downconv (see “11 Composite Downconv” on page 57 )
• HDMI RGB Range (see “12 HDMI RGB Range” on page 57 )
• AES/EBU SRC Mode (see “14.0 AES/EBU SRC Mode” on page 57 )
• AES/EBU SRC (see “14.1–14.8 AES/EBU SRC” on page 58 )
• Dolby Decoder Input (see “15 Dolby Decoder Input” on page 59 )
• Dolby Decoder Mode (see “16 Dolby Decoder Mode” on page 59 )
• Dolby Decoder Aux Out (see “17 Dolby Decoder Aux Out” on page 59 )
• Dolby Decoder Aux Mode (see “18 Dolby Decoder Aux Mode” on page 60 )
