FS2 v2.1r1 www.aja.com 90

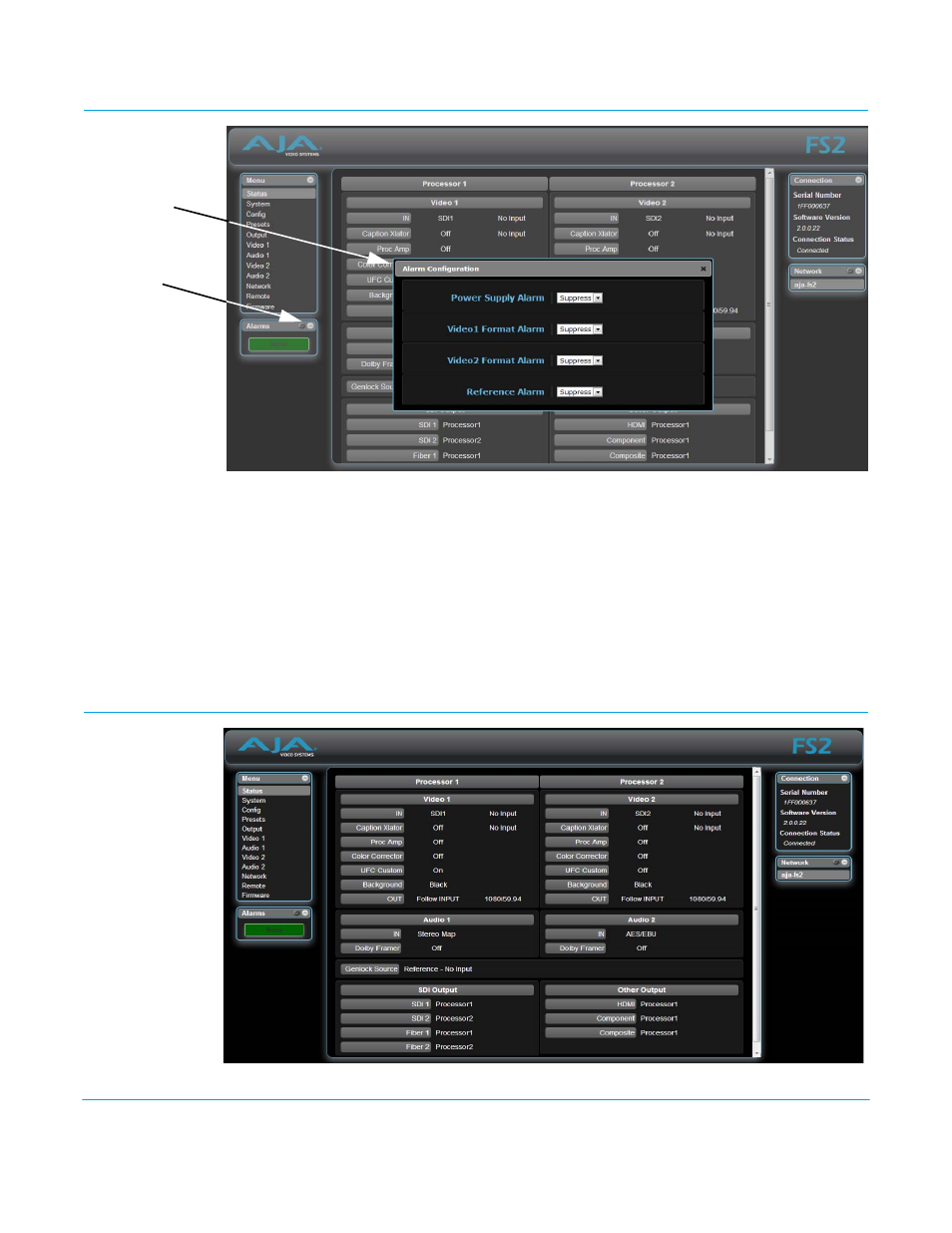

Alarm Configuration Screen
You can pop open the Alarm Configuration display at any time and on any screen by
clicking the display button in the upper right corner of the Alarms panel.
To close the window, press the ESC key, or click the X in the upper right corner.
The Alarm Configuration display provides control over these alarm settings:
• Power Supply Alarm (see “5 Power Supply Alarm” on page 51 )
• Video 1 and Video 2 Format Alarm (see “6.1 Vid1 Format Alarm” on page 51 )
• Reference Alarm (see “7 Reference Alarm” on page 51 )
Status Screen
FS2 Alarms
Alarm Configuration
popup display
display button
(gear icon)
