7 Downconvert Mode This parameter selects the type of Downconversion performed by the Video Processor on
the selected HD source input. See the following Downconvert Illustrations for
Downconversion examples. This parameter is in effect only when the input is HD (720p,
1080i, or 1080p) and the output format is SD (525i or 625i), or when the input is 2K (2048
x 1080)and the output is HD (720p, 1080i, or 1080p). When downconverting from 2K, the

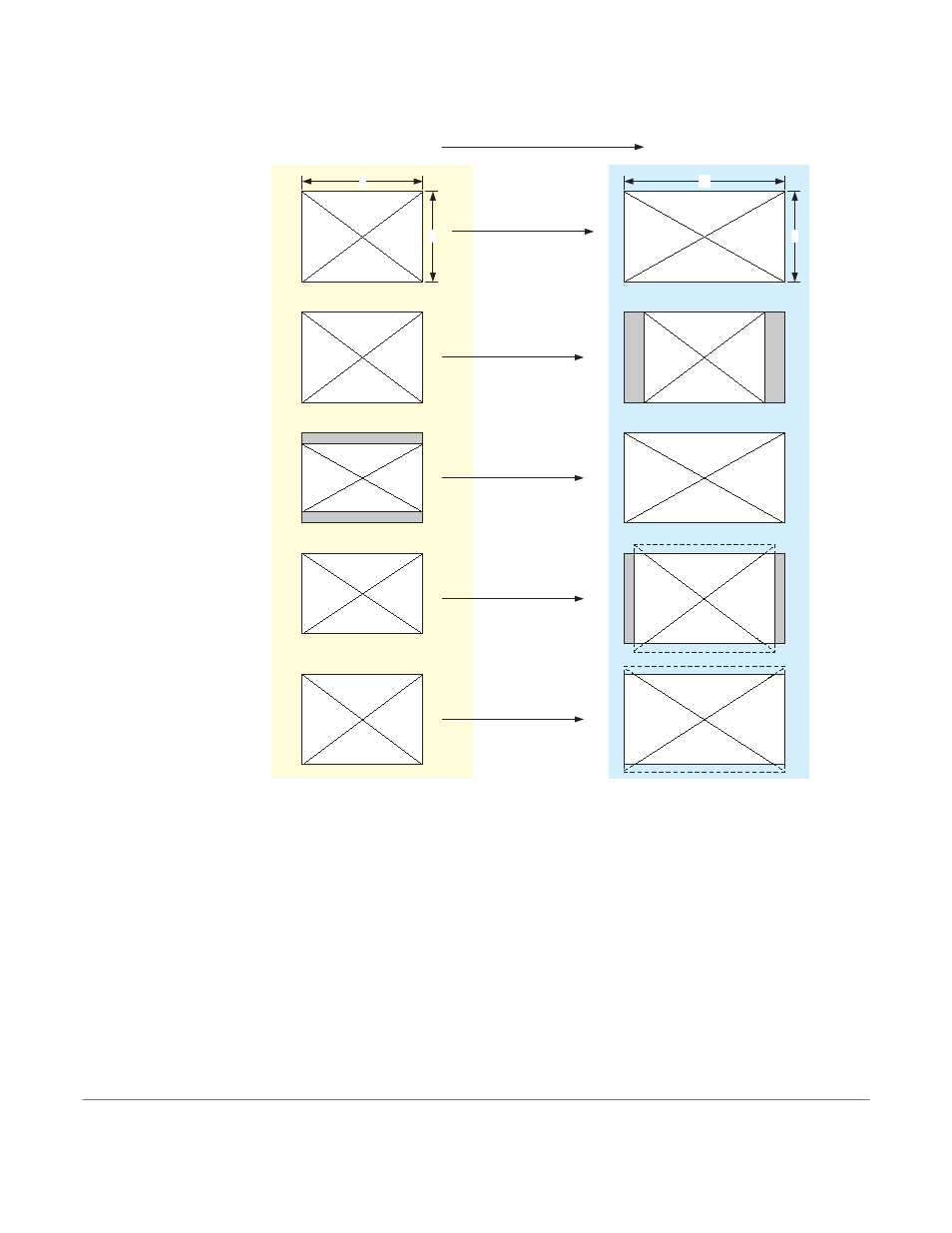

Upconvert Illustrations
Full Screen
4:3 Pillar
LB to Full
14:9 Pillar
Wide Zoom
1 6
9
4
3
4:3 Upconverts To These displays on 16:9
