switch. LANs may be divided into zones separated by software or hardware routers.
Routers may also be used to connect the LAN to an outside wide area network (WAN)
such as the internet.
Devices on a LAN have IP addresses which may be fixed and permanent or dynamically
assigned by the network (DHCP). When attaching the FS2 to a LAN, talk to your network
administrator to find out how they want it connected (static IP or DHCP). Your IT
department will be able to supply the information you need to install the FS2 on a LAN.
The following illustration shows a network connection example; your installation may
differ.

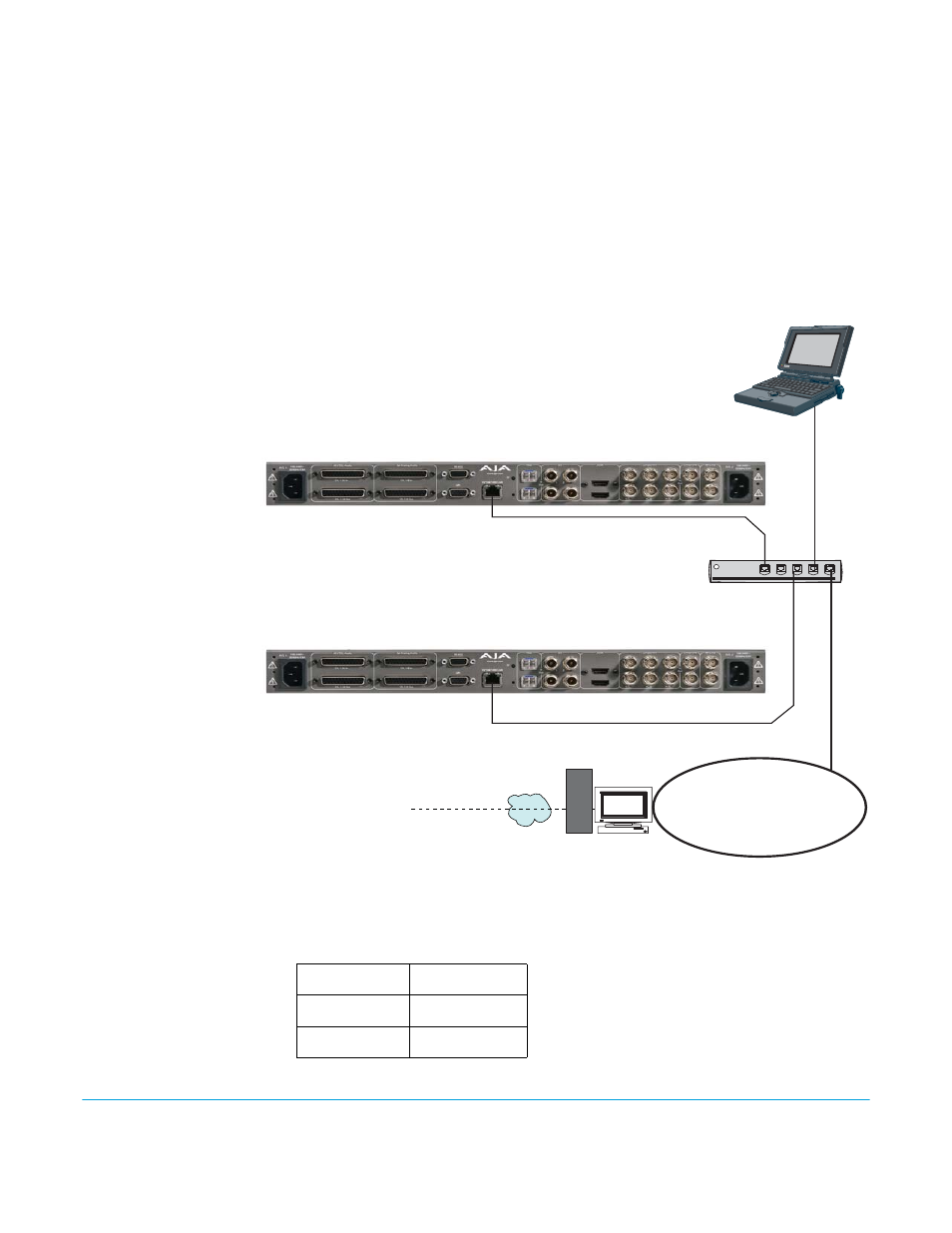

Figure 5. FS2 Network Example, Two FS2s on a LAN, with Laptop for Remote Control
FS2 Default
Network Settings
The FS2 ships from the factory set for DHCP networking, and can be manually reset to the
following default network settings:
10/100/1000 Base-T
Laptop
w/Web Browser
for FS2 Remote
Control
Firewall
& Router
WAN/ISP
Hub or Switch
10/100/1000 Base-T
LAN
IP Address 192.168.0.2
Subnet Mask 255.255.255.0
Gateway 192.168.0.1
