FS2 v2.1r1 www.aja.com 13
Technical Description
The FS2 features an incredibly flexible architecture offering two identical Video/Audio
processing units, both of which can access any input or drive any output. For Video
processing, each processor can also access the other video processor for sidebar keying
or other functions that involve both video signals. For audio processing, each audio
processor has access to any audio input for full channel mapping capability, and each
audio processor outputs a 16-channel group that can be embedded in the SDI/HDMI/
Fiber outputs and/or sent to the AES or Analog outputs.

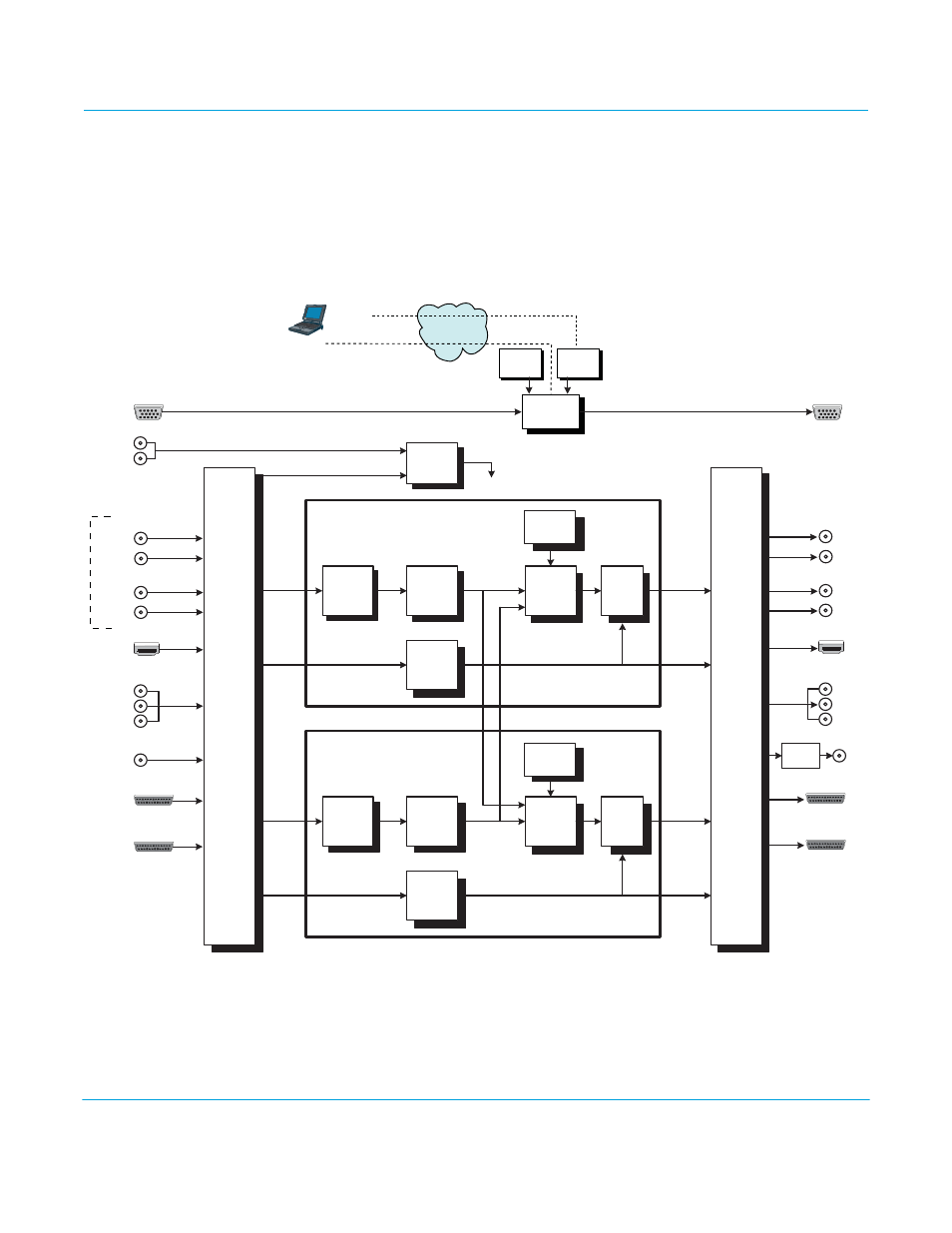

Figure 1. FS2 Simplified Block Diagram
Video Processors
The two Video Processors are identical and perform format conversion, frame
synchronization, signal processing, and keying operations. Each video processor has
access to any video input from the Input Crosspoint Matrix.
FS2 CPU
Inputs
Passive
Reference
Loops
Embedded
Web
Server
Panel
Control
LAN or WAN
Ethernet
GPI Inputs (4)
Optional
Fiber In 1
Optional
Fiber In 2
Embedded
Audio
SDI In 1
SDI In 2
HDMI In
Component
YCbCr/RGB
or
Composite (v1.1)
In
Composite In
AES/EBU
Digital Audio In
16 Channels
Analog Audio In
8 Channels
(Tascam-style Cable)
GPI
Outputs (4)
Optional
Fiber Out 1
Optional
Fiber Out 2
SDI Out 1
SDI Out 2
HDMI Out
Component
YCbCr/RGB
or
Composite (v1.1)
Out
AES/EBU
Digital
Audio Out
16 Channels
Analog
Audio Out
8 Channels
(Tascam
Cable)
Down
Converter
Composite
Out
Video
Converter
and
Framesync
Video Proc
Amp
Color
Corrector
Audio
Processor
Remote Web
Browser
Control
SNMP Control
via command line
Still Store
Frame Buffer
Still Store
Frame Buffer
Genlock
Outputs Processing
PROCESSOR 1
PROCESSOR 2
Video
Sidebar
Keyer
Audio
Embedder
Video
Converter
and
Framesync
Video Proc
Amp
Color
Corrector
Video
Sidebar
Keyer
Audio
Processor
Audio
Embedder
Video
and
Audio
Output
Crosspoint
Matrix
Video
and
Audio
Output
Crosspoint
Matrix
Video
Audio
Video
Audio
Video 1
Audio 1
Video 2
Audio 2
