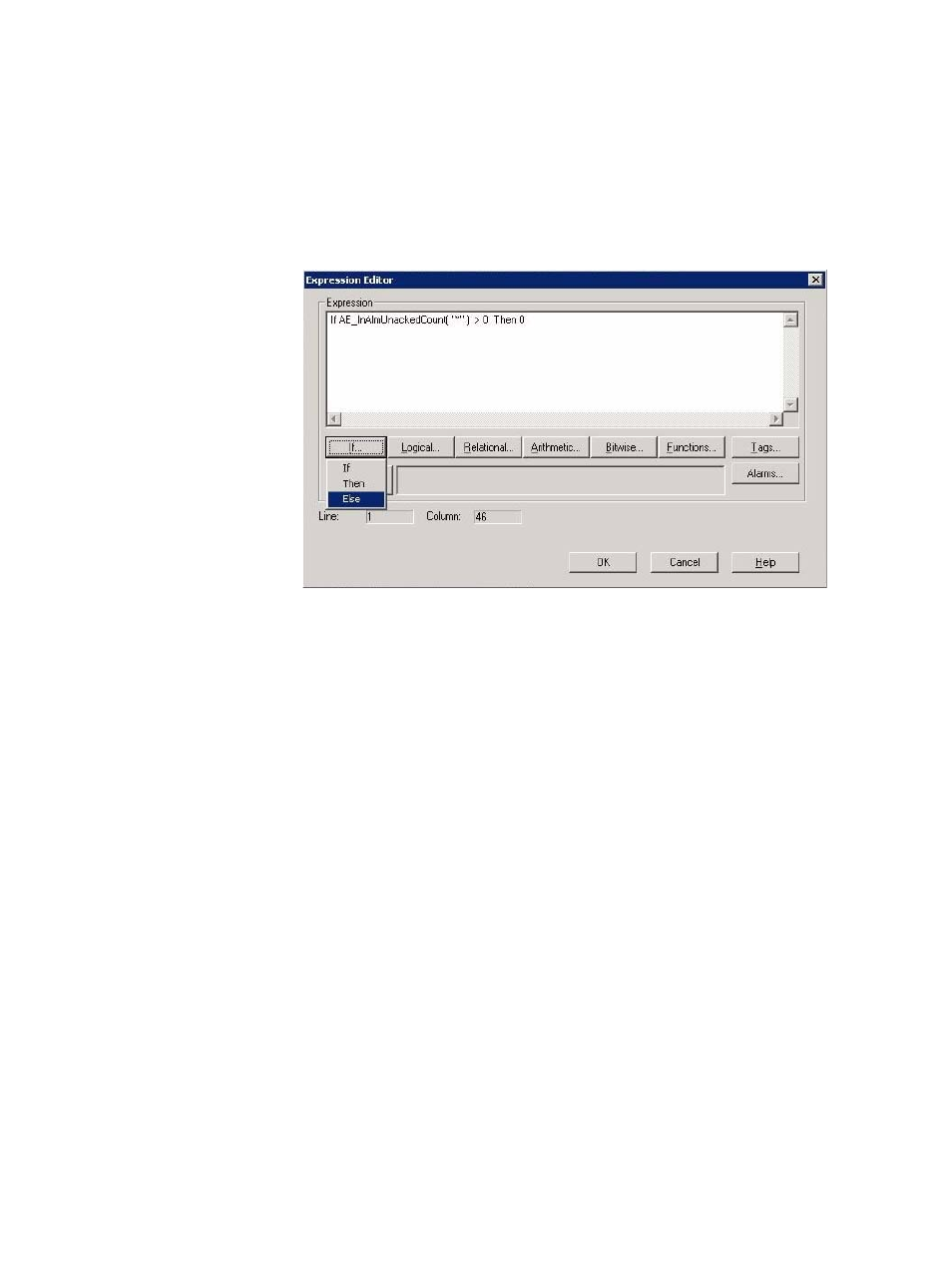

10. In the Expression box, type 0, click If and then click Else to add an ELSE
condition.
This completes the THEN condition: “If the number of In Alarm,
Unacknowledged alarms is greater than 0, then animate the rectangle to show the
colors for state 0.”
11. Follow the same process, substituting the necessary selections to add the
remaining two expressions, and then click OK.
If AE_InAlmAckedCount( "*" ) > 0 Then 1 Else (animates the rectangle to show
the colors for state 1)
If AE_NormalUnackedCount( "*" ) > 0 Then 2 Else 3 (animates the rectangle to
show the colors for state 2. If none of the conditions are true, the expression
animates the rectangle to show the colors for state 3.)
