Set up historical alarm and event logging

• •
• •

•

129

Step 4: Configure the properties of the graphic display

1. On the Edit menu, click Display Settings.

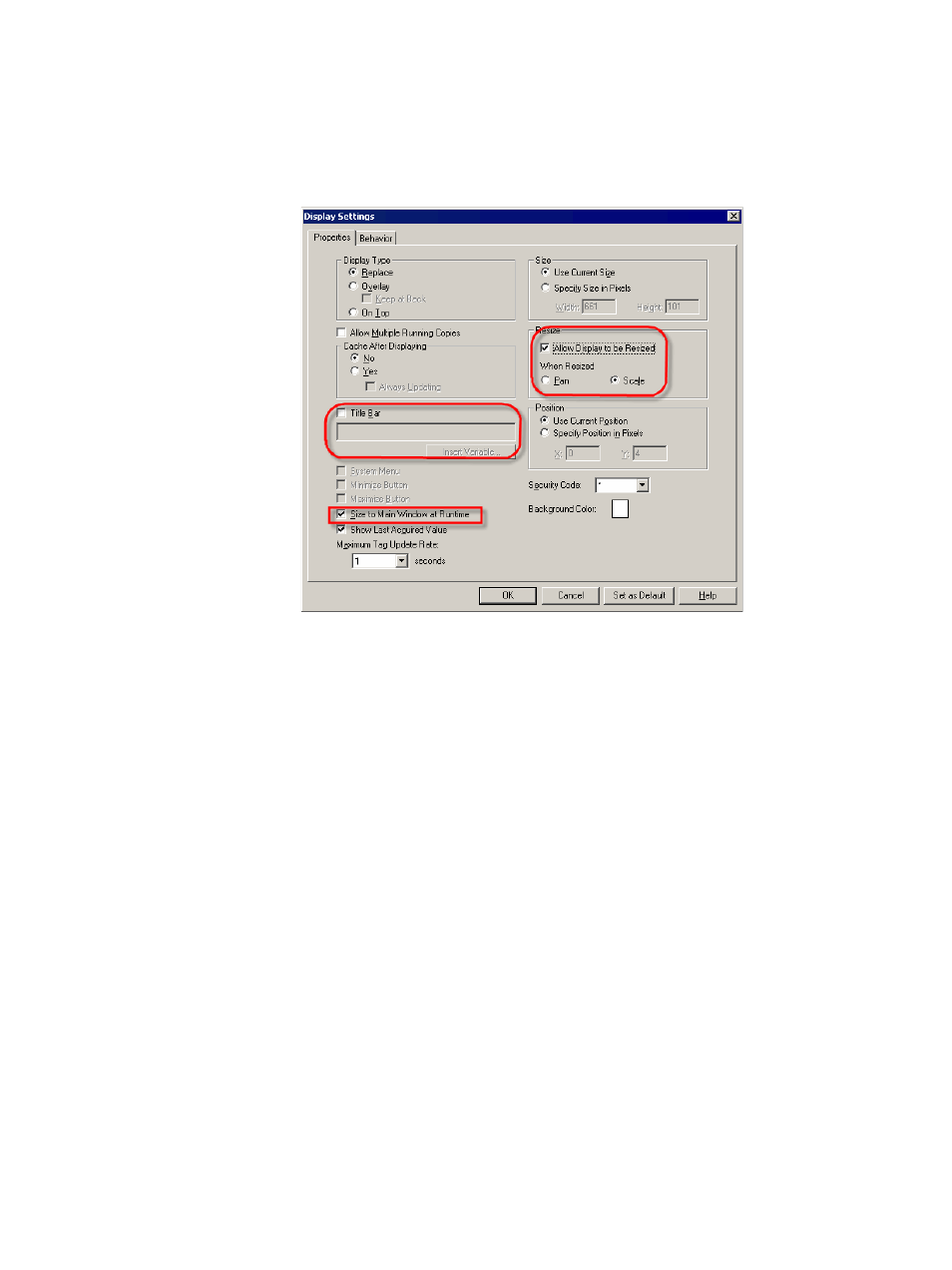

2. In the Display Settings dialog box, make the following changes on the Properties

tab, and then click OK:

Clear the Title Bar check box.

Select the Size to Main Window at Runtime check box.

Select the Allow Display to be Resized check box.

Under When Resized, select Scale option if it is not already selected.

Step 5: Save the graphic display

1. On the File menu, click Save.

2. In the Save dialog box, type a name for the new graphic display, and then click

OK.

In this example, we used

Menu Bar

for the name of the graphic display.

Create a startup macro for the Menu Bar display

This section shows you how to modify the startup macro you created in Chapter 7,
“Set up graphic displays”. This example shows you how to add commands to the
startup macro that will open the button display you just created and dock it to the top
of the client window.
