4. Resize the graphic display so that the Banner fills the graphic display (do not
leave white space). We do this because the Banner displays no more than five
alarms at a time.
Step 3: Configure the properties of the Alarm and Event Banner

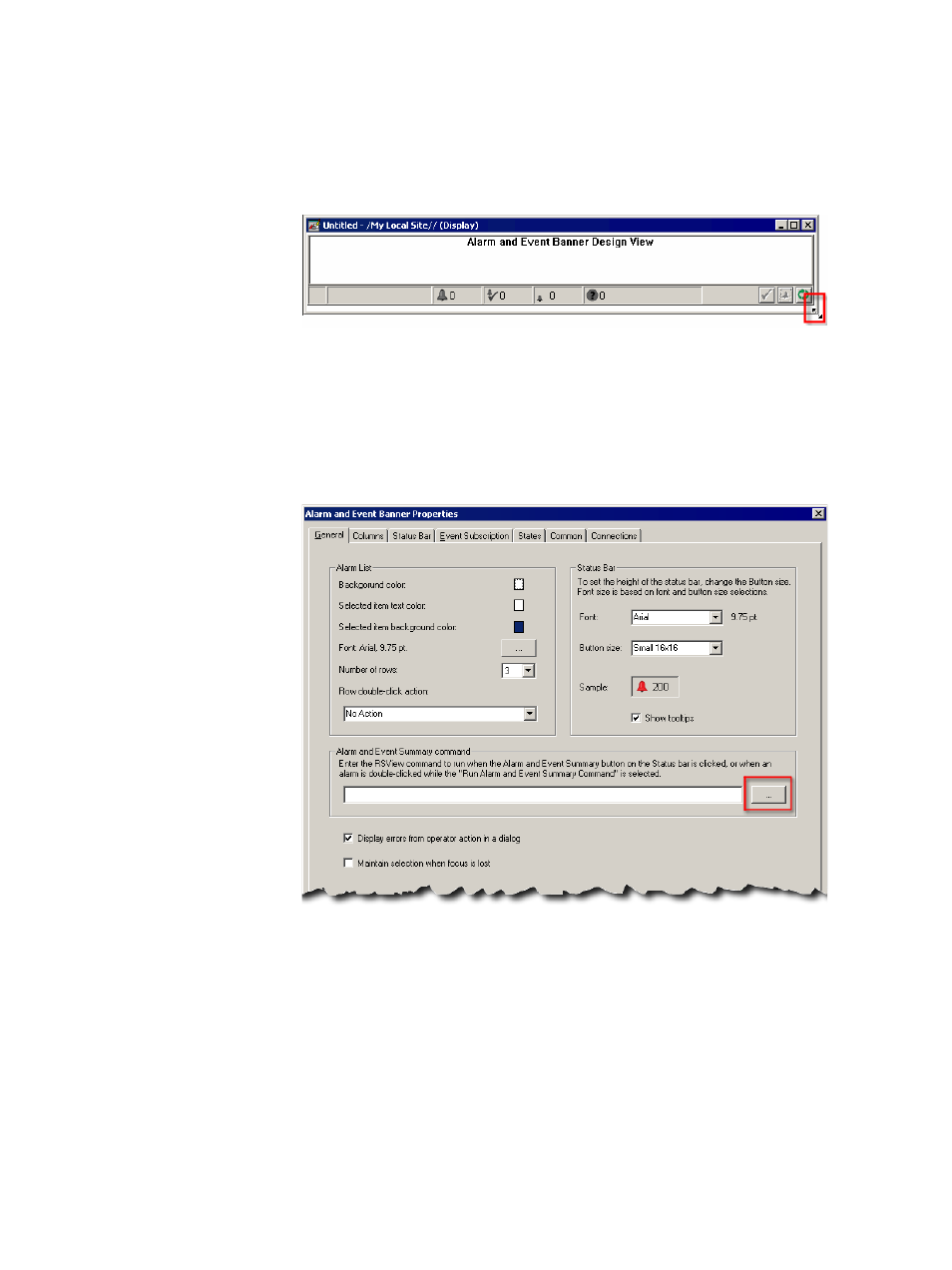

1. To open the Alarm and Event Banner Properties dialog box, double-click the
Alarm and Event Banner object. For details about all of the properties in the
dialog box, click Help in the dialog box.
2. On the General tab, click the browse button under Alarm and Event Summary
command.
This opens the Command Wizard where you will create a command to start the
Alarm and Event Summary graphic display from the Alarm and Event Banner.
