MobileView Guard G750 19
Publication 2727-QS002E-MU-P
MobileView Terminal
This section provides details on:
• How to remove the back cover of the MobileView terminal
• Ethernet connection
• Using the PC Card slot

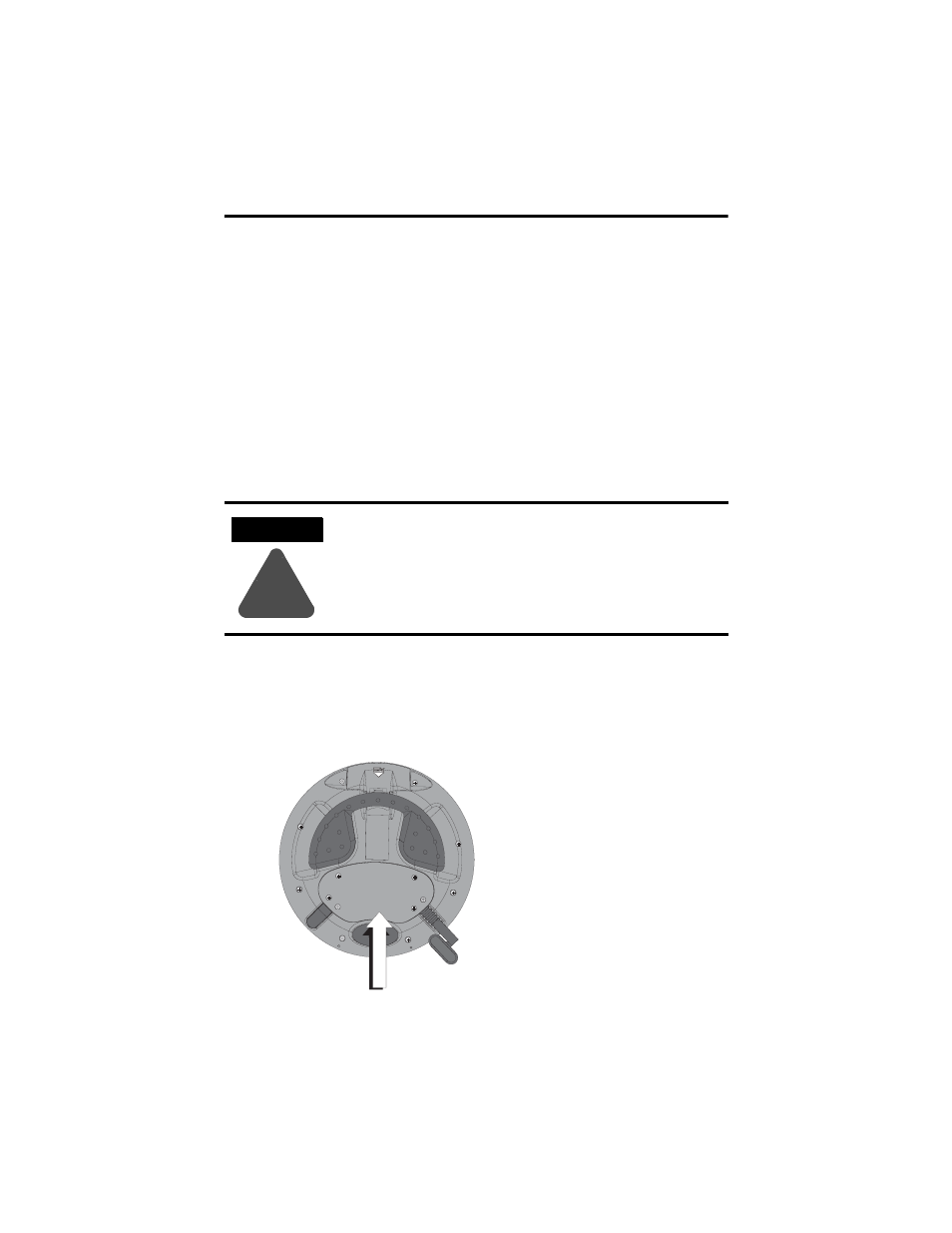

Removing the Back Cover
This section shows how to remove the back cover of the MobileView terminal.
Once the back cover is removed you have access to the area which contains all of
the connectors.
1. Place the terminal on a stable, flat surface.
2. Remove the 6 screws that secure the back cover to the terminal.
3. Carefully lift off the back cover and set aside.
ATTENTION
!
Turn off the power supply before removing the back cover of
the MobileView terminal.
When the back cover is removed, the MobileView terminal is
sensitive to electrostatic discharge.
Back Cover
