Page 132
132
Rockwell Automation Publication 7000A-UM200C-EN-P - June 2014
Chapter 3
Component Definition and Maintenance

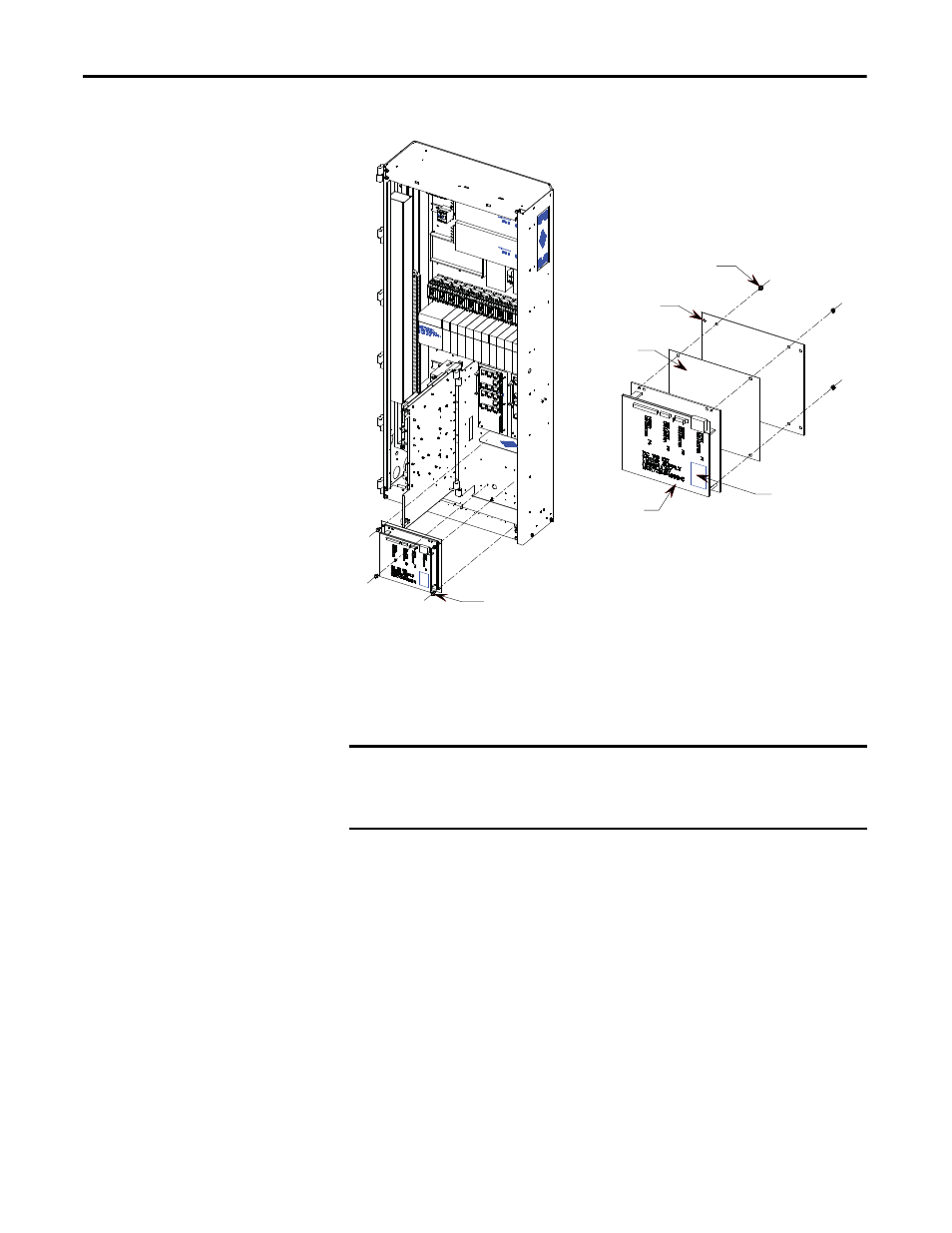

Figure 109 - Replacement of DC/DC power supply
Printed Circuit Board
Replacement
The replacement of printed circuit boards should be handled in a careful manner.
There are no direct screw/terminal connections on any of the Low Voltage circuit
boards. All wire/terminal connections are made with plugs that plug into the
circuit boards. This means that changing boards only requires the removal of the
plugs, minimizing the chance of mistakes when reconnecting all of the wiring.
M4 (P.H.M.S.) and
nylon shoulder washer
Mounting plate
Black insulation
Part ID label
DC/DC
Power Supply
M6 (H.H.T.R.S.)
VIEW “1”
VIEW “2”
IMPORTANT
Remove all power to the drive.
Do not remove the replacement board from the anti-static bag until necessary.
Use anti-static wrist strap, grounded in the Low Voltage Control Section.
