Configuration for udfb 1: ra_hscplugin – Rockwell Automation 2080 Micro800 Digital and Analog Plug-in Modules User Manual
Page 93

Rockwell Automation Publication 2080-UM004B-EN-E - December 2013
85
Quickstart Appendix B
Configuration for UDFB 1: RA_HSCPlugIn
1.
Launch Connected Components Workbench. Open the sample project
you have downloaded from the Sample Code Library.
2.

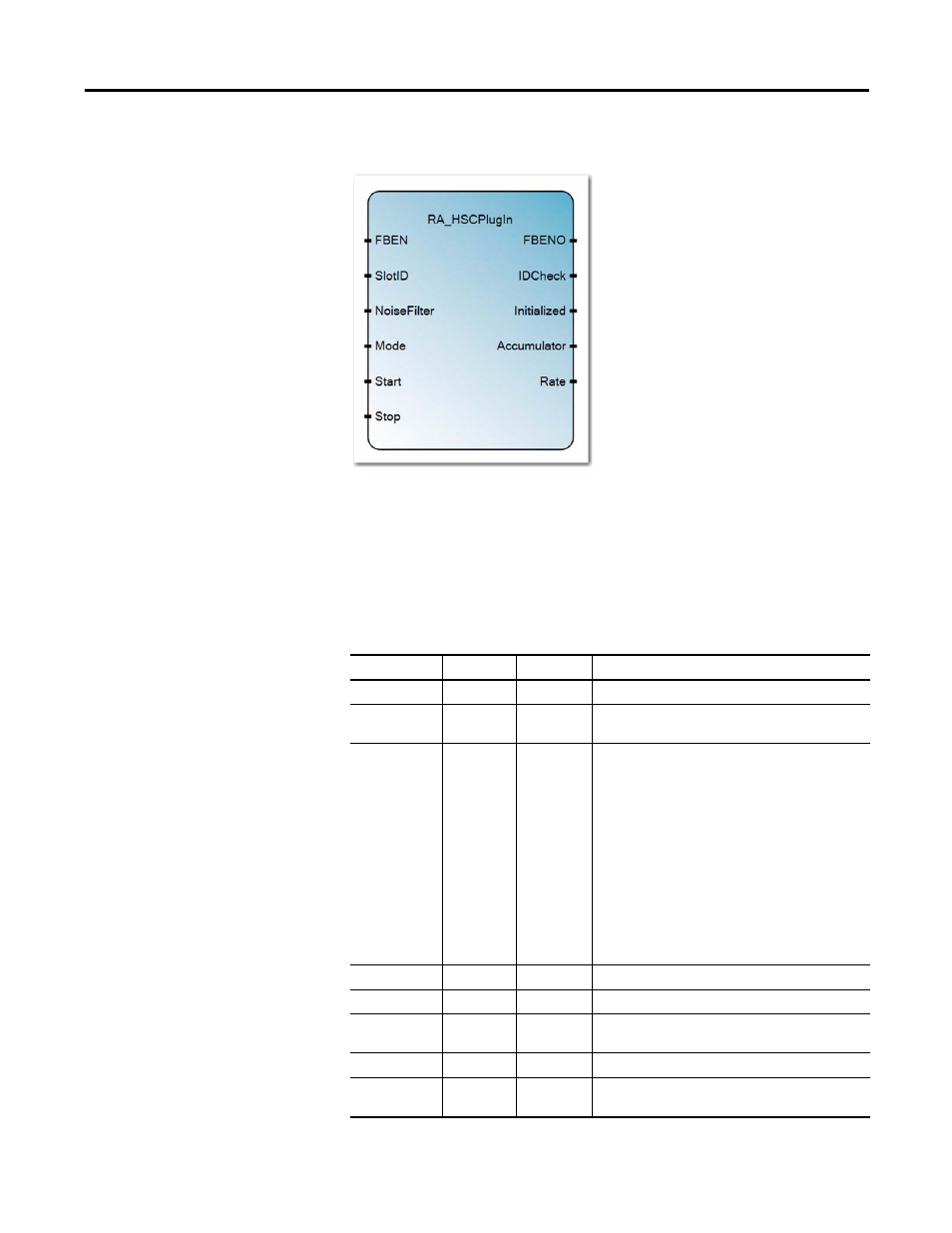

Import the RA_HSCPlugIn UDFB you have downloaded into this
project. Note that the sample project will have the following input and
output parameters.
NOTE: The purpose of this UDFB is to get
high speed counter accumulator value and
current pulse frequency.
Input and Output Parameters
Parameter
Type
Data Type
Description
FBEN
INPUT
BOOL
Function block Enable input
SlotID
INPUT
UINT
Plug-in slot number.
Slot ID = 1…5 (starting with the far left slot 1)
NoiseFilter
INPUT
USINT
00: No filter
01: 250 kHz
02: 200 kHz
03: 80 kHz
04: 40 kHz
05: 13.3 kHz
06: 10 kHz
07: 4 kHz
08: 2 kHz
09: 1 kHz
10: 500 Hz
11: 250 Hz
12: 125 Hz
13: 63.5 Hz
14: 31.25 Hz
HSCMode
INPUT
USINT
0, 2 , 4, 6, 8, 10, 12
Start
INPUT
BOOL
Start counter.
Stop
INPUT
BOOL
Stop the counter and clear “MaxDPos” and
“MaxDSpd” value.
FBENO
OUTPUT
BOOL
Function block Enable output
IDCHeck
OUTPUT
BOOL
TRUE: HSC plug-in is at selected slot.
FALSE: Wrong plug-in or no plug-in at selected slot.
