42 Rockwell Automation Publication 2080-UM004B-EN-E - December 2013
Appendix 5 DeviceNet Plug-in – 2080-DNET20
Power Supply
The plug-in module gets its power from the Micro800 backplane. However, the
DeviceNet interface is isolated from the Micro800 system. Therefore, network
power to operate the DeviceNet transceiver on the plug-in module is supplied by
an external DeviceNet power supply.
If using a single power supply in the network, calculate the total current
requirement of all devices in the network and add +10% for current surge.
Recommended power supply is 1606-XLSDNET4.
If two or more power supplies are connected to the Kwinklink lite media (trunk
cable) V+ should be broken between the two power supplies.
IMPORTANT For most applications, Rockwell Automation recommends that you use
default node and baud rate settings. The DeviceNet scanner plug-in will
be at node 0 and the devices will be at nodes 1...20. The baud rate will
be at 500k baud and the maximum trunkline length will be 75 m
(KwikLink Lite).
Power Supply Cable Dropline Length
Dropline Length Allowable Current
1.5 m (5 ft) 3 A
2 m (6 ft) 2 A
3 m (10 ft) 1.5 A
4.5 m (15 ft) 1 A
6 m (20 ft) 0.75 A

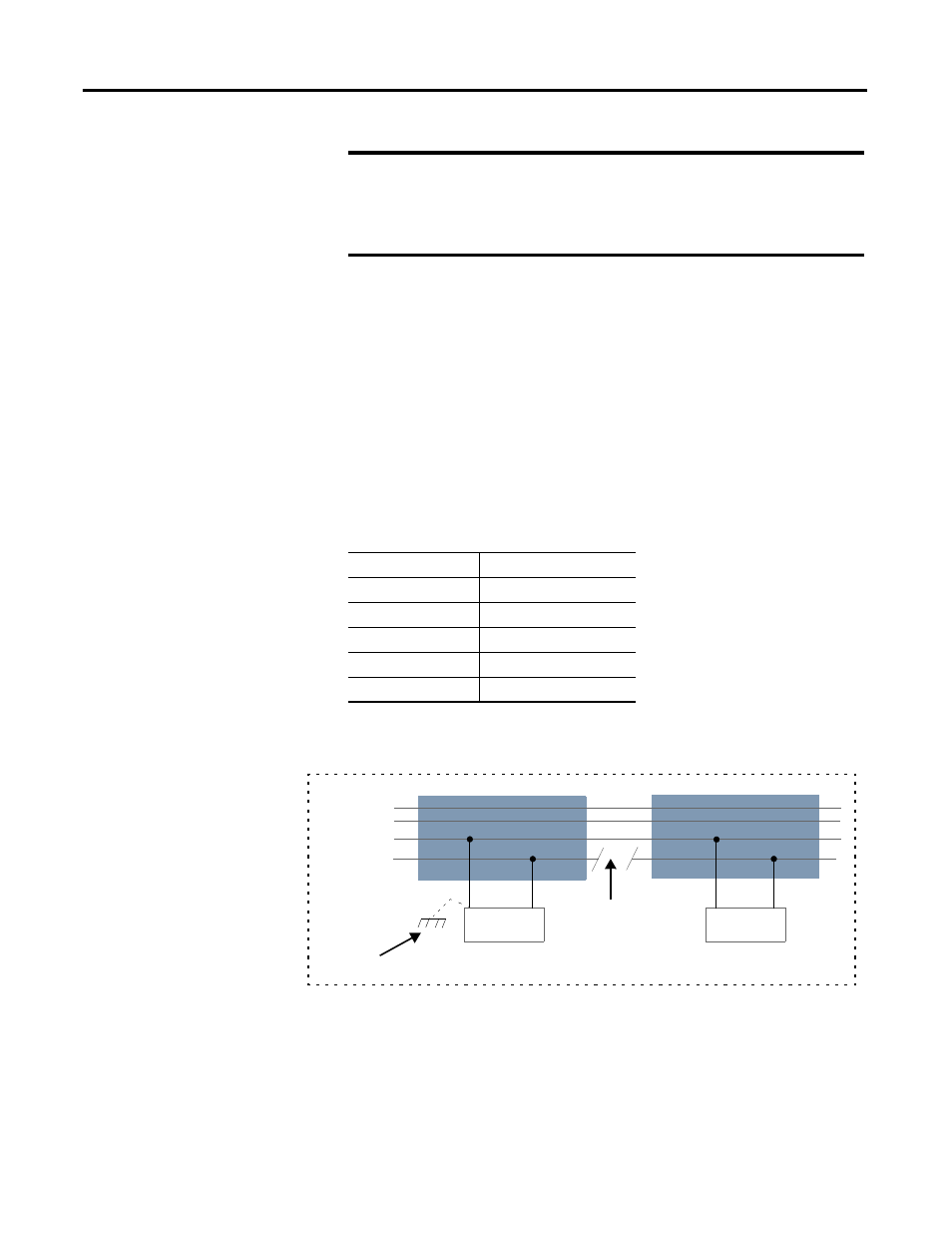

V-
Power Supply V+
CAN_H
CAN_L
V-
V+
V+ broken between
power supplies
only one ground
V+
Power Supply V-
Enclosure
TIP Grounding the network
If grounding at only one location, it is recommended that you ground at the
center of the network.
