Appendix 5 DeviceNet Plug-in – 2080-DNET20
Upon powerup, the scanner should be in IDLE Mode for the autoscan to start.
Wait until the autoscan process is complete before turning the scanner to RUN
Mode (that is, Run bit is TRUE).
Sample Code

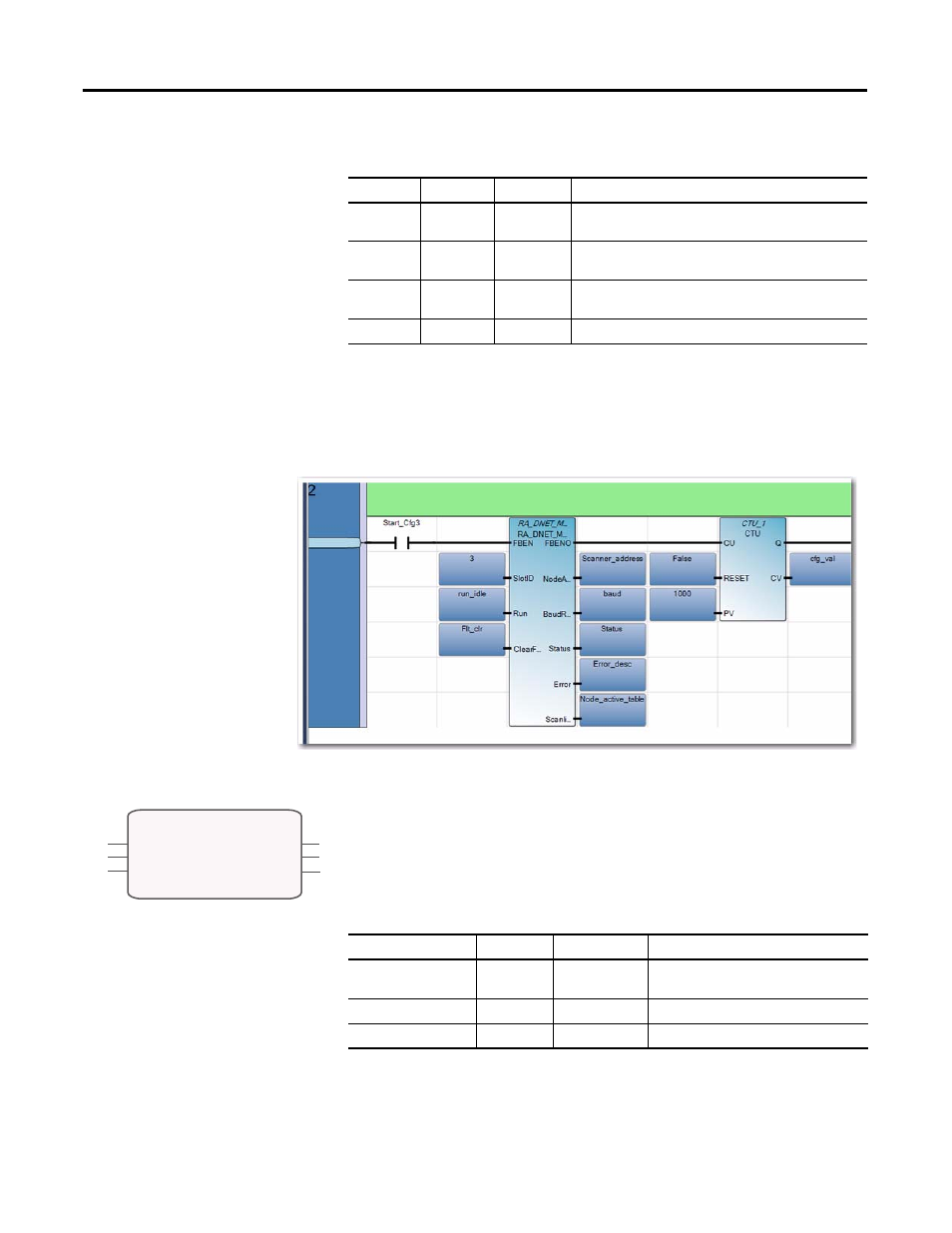

RA_DNET_NODE_STATUS
This UDFB is used to read the node status of slave nodes in a DeviceNet network
where the 2080-DNET20 scanner is connected.
Sequence of Operation: RA_DNET_MASTER
Sequence
Run
Autoscan
Description
1
False
False
Reinitializes scan list from the plug-in scanner if
FBEN = TRUE.
2
False
True
Triggers autoscan to scan the network after clearing
scan list.
3
False
False
Puts scanner to IDLE mode by disabling autoscan if
active node number = number of nodes in network.
4
True
False
Puts scanner to RUN mode.
RA_DNET_NODE_STATUS: Input and Output Parameters
Variable Name
Type
Data Type
Description
FBEN
INPUT
BOOL
Function block enable input.
TRUE to enable the function.
SlotID
INPUT
UINT
Plug-in slot number (1…5)
NodeID
INPUT
USINT
Slave node address.
FBEN
SlotID
NodeID
FBENO
RA_DNET_NODE_STATUS
Status
Error
