Chapter 9
Configuration and Operation of the
DDMC32 System
9-2
From the Configure menu, you can set the output for your marquee and/or
banner, select the type of instructions to be displayed, and enable auto-start
for several options.
Configuring Marquees
1.
From the Configure menu, choose Output Devices.
The Configure Output Devices screen appears.

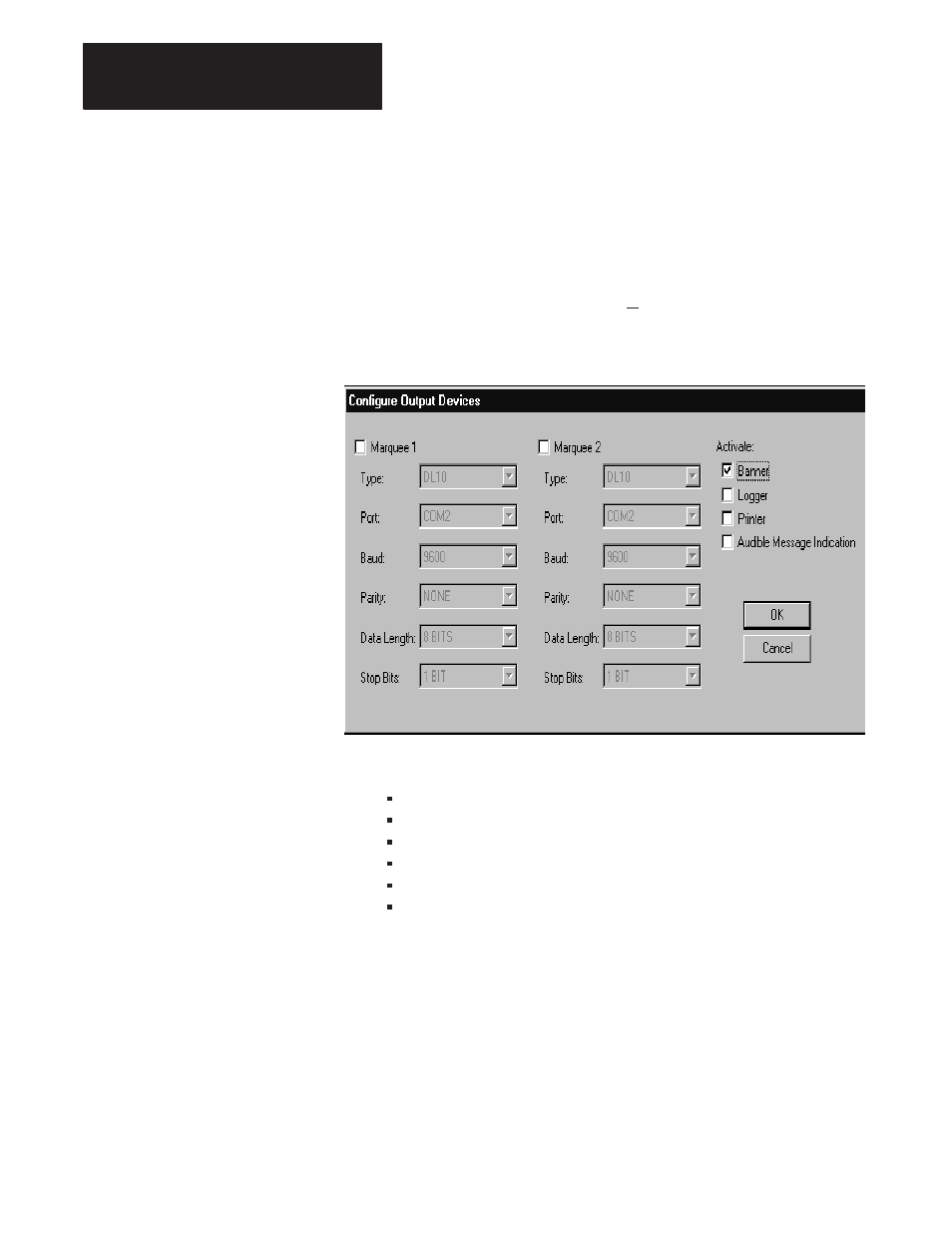

Configure Output Devices screen
2.
For each marquee, enter the following information:
Type
Port
Baud
Parity
Data Length
Stop Bits
3.
Click on OK.
A message box appears, notifying you that your changes will take
effect the next time the DDMC32 software is restarted.
Activating the Banner, Logger, Printer, and Audible Message Options
From the Configure Output Devices screen, you can activate the Banner,
Logger, Printer, and Audible Message options by clicking on their
corresponding checkboxes. Once you have chosen the appropriate options,
click on OK to close the Configure Output Devices screen.
Configuring Output Devices
