2-6 Installing the Interface Module
Important: Make sure you carefully align the pins and holes before
you press the connector header into the processor. If you improperly
align them, you will bend the connector header pins when you press
them together.
Do not use excessive force on the connector header when seating it
into the processor.
You do not need to key the connector.
Connect the Interface Module to the Processor
Lay the processor on a flat surface and follow these steps to connect
the interface module to the processor:
Important: Make sure you carefully align the pins and holes before
you press the interface module into the connector header. If you
improperly align them, you will bend the connector header pins.
Install the Processor/Interface Module into the Chassis
To install the attached modules into the 1771 I/O chassis, follow
these steps:

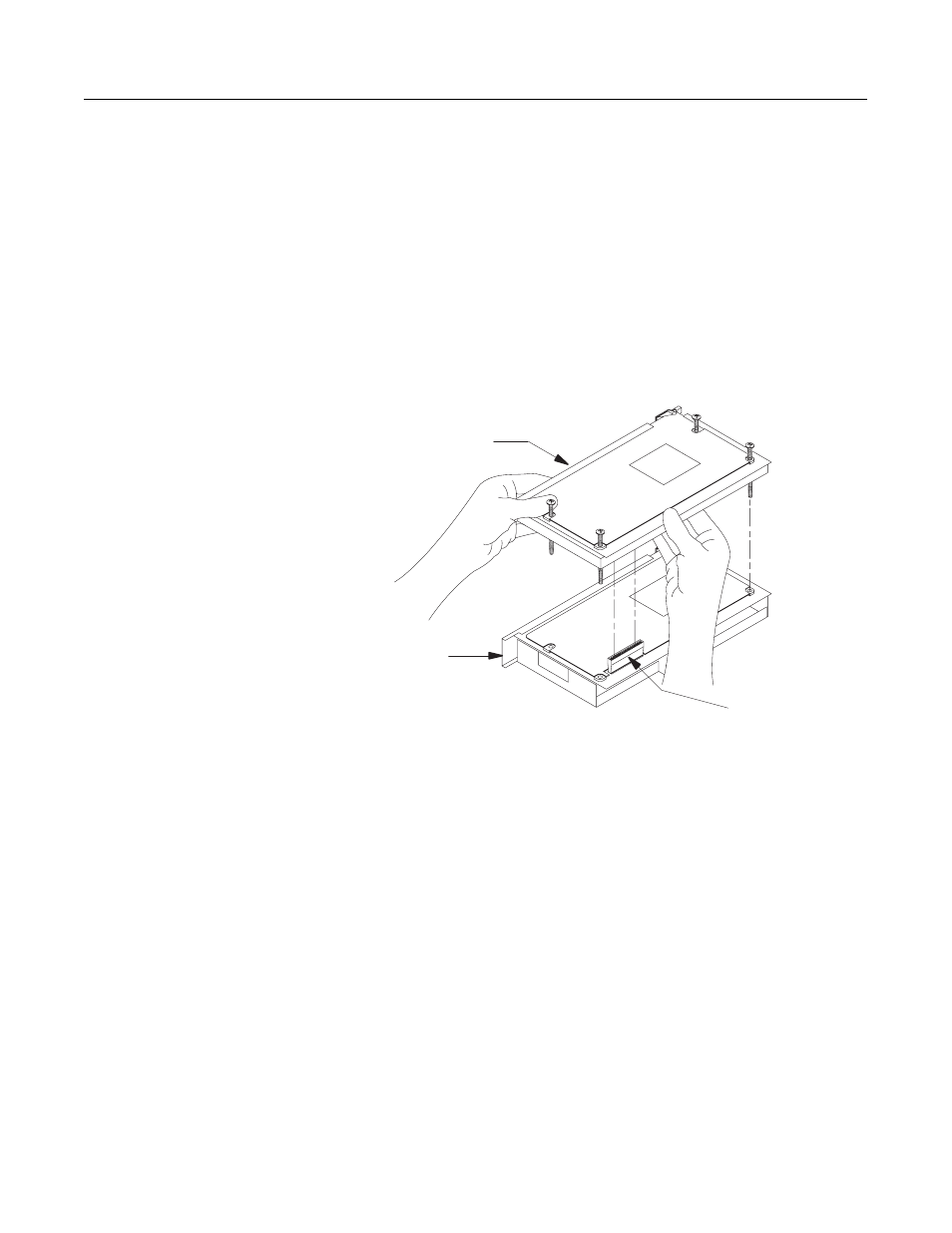

Front of the PLC-5 processor
Front of the interface module
Installed connector
header
20597
Align the pins and holes of the
interface module to those on
the connector header.
1.
Press the interface module into
the connector header.
2.
Tighten the screws.
3.
