1785-6.5.19 November 1998
Chapter
2
Installing the Interface Module
Using This Chapter Read this chapter to:
• connect your Ethernet interface module to a PLC-5 processor
• install the processor and interface module combination in a 1771
I/O chassis.
The PLC-5 Ethernet Interface Module is a single-slot module that
attaches to the side of any enhanced PLC-5 series B or later processor
to provide Ethernet connectivity for the attached processor.

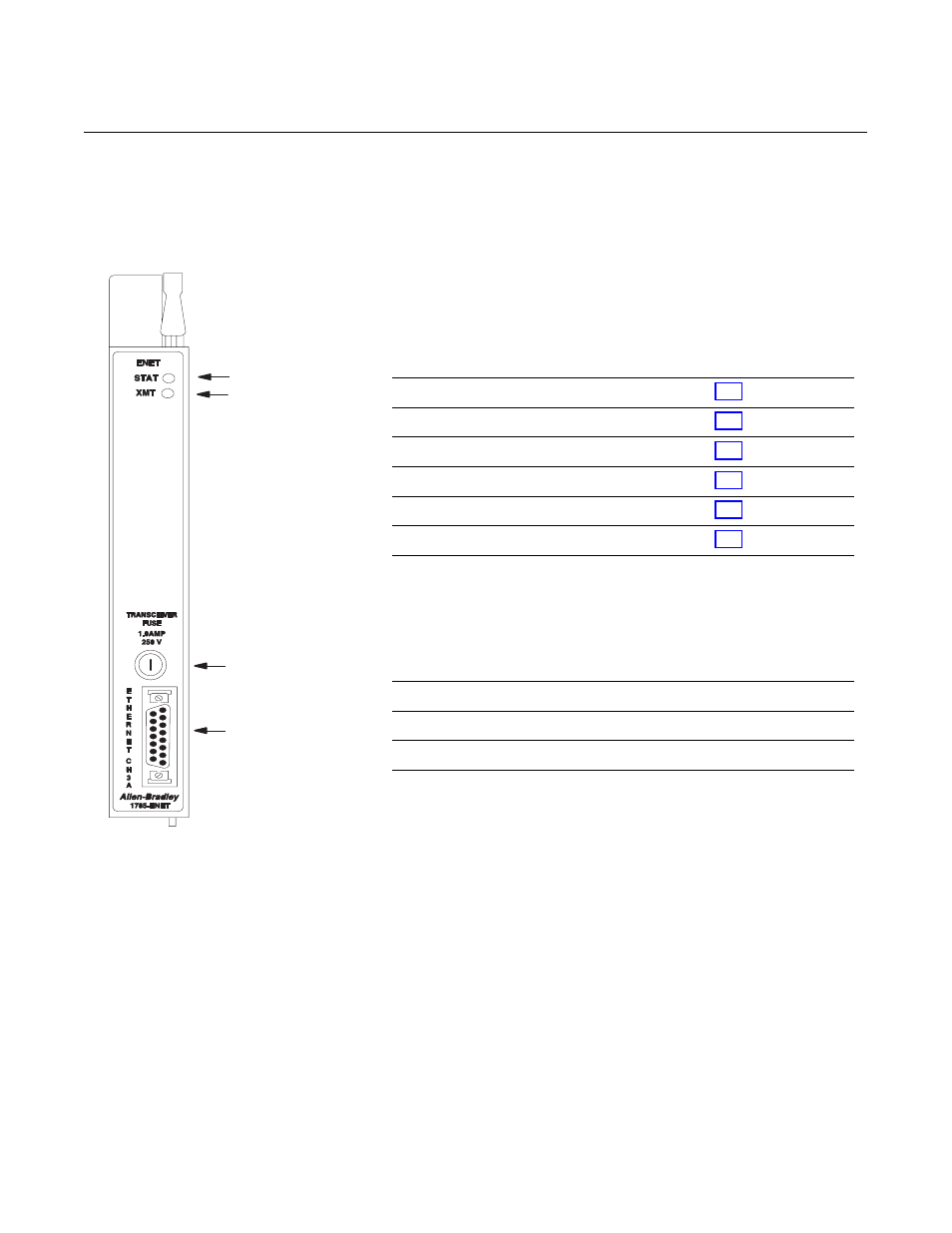

20611±M
Status
indicator
External
transceiver
fuse
Transmit
indicator
Channel 3A:
15-pin AUI
connector port
For information about: See page:
Checking the 1785-ENET package before you begin 2-2
Equipment you must provide 2-3
Preventing electrostatic discharge (ESD) damage 2-4
Complying with the European Union Directive 2-4
Installing the Ethernet interface module 2-5
Removing the Ethernet interface module 2-8
When used with The interface module provides
Enhanced PLC-5 processor Ethernet connectivity without sacrificing DH+/RIO ports
ControlNet PLC-5 processor Ethernet connectivity
Ethernet PLC-5 processor the ability to operate dual Ethernet links
