1785-6.5.19 November 1998

Quick Start

1-3

Important: Make sure you carefully align the pins and holes before
you press the connector header into the processor. If you improperly
align them, you will bend the connector header pins when you press
them together. Do not use excessive force on the connector header
when seating it into the processor. You do not need to key the
connector.

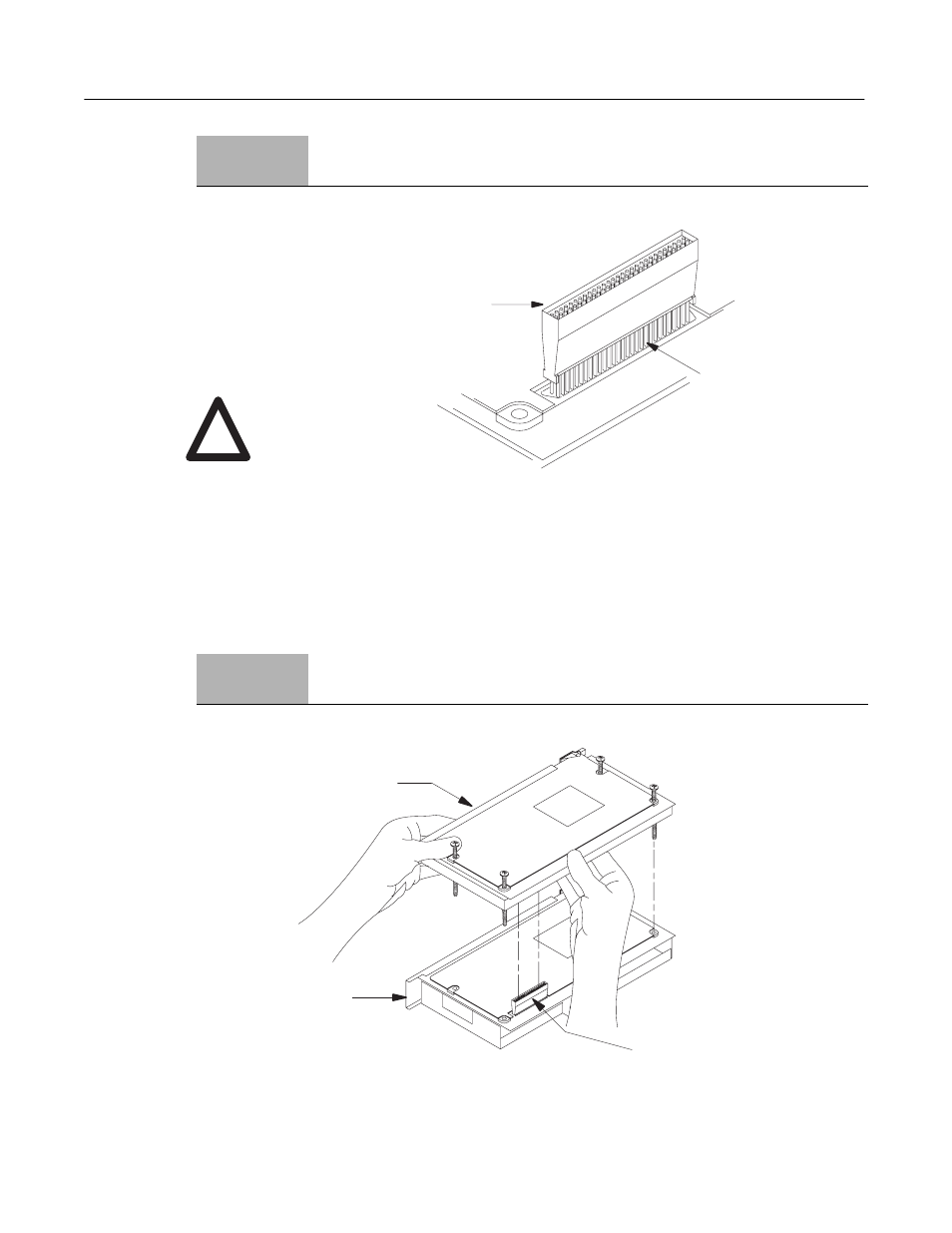

Step 3

Attach the connector header to the processor

See Chapter 2

Installing the Interface Module

19379

Attach the interface
module to this end.

connector
header

Push the exposed pins
into the holes on the
PLC-5 processor.

!

Wear a grounding wrist
strap to guard against ESD.

Step 4

Use the captive screws to connect the interface module to
the processor.

See Chapter 2

Installing the Interface Module

Front of the PLC-5 processor

Front of the interface module

Installed connector
header

20597±M
