I/o data supported by each module – Rockwell Automation 1791ES-IB16 Guard I/O EtherNet/IP Safety Modules User Manual
Page 81

Rockwell Automation Publication 1791ES-UM001D-EN-P - May 2013
81
Get Diagnostic Status from Modules by Using Explicit Messaging
Appendix A
The first 32 bits of the instance are in IB16MSGdata[0].0…31, and the
final 24 bits are in IB16MSGdata[1].0…23. Map these 56 bits according to

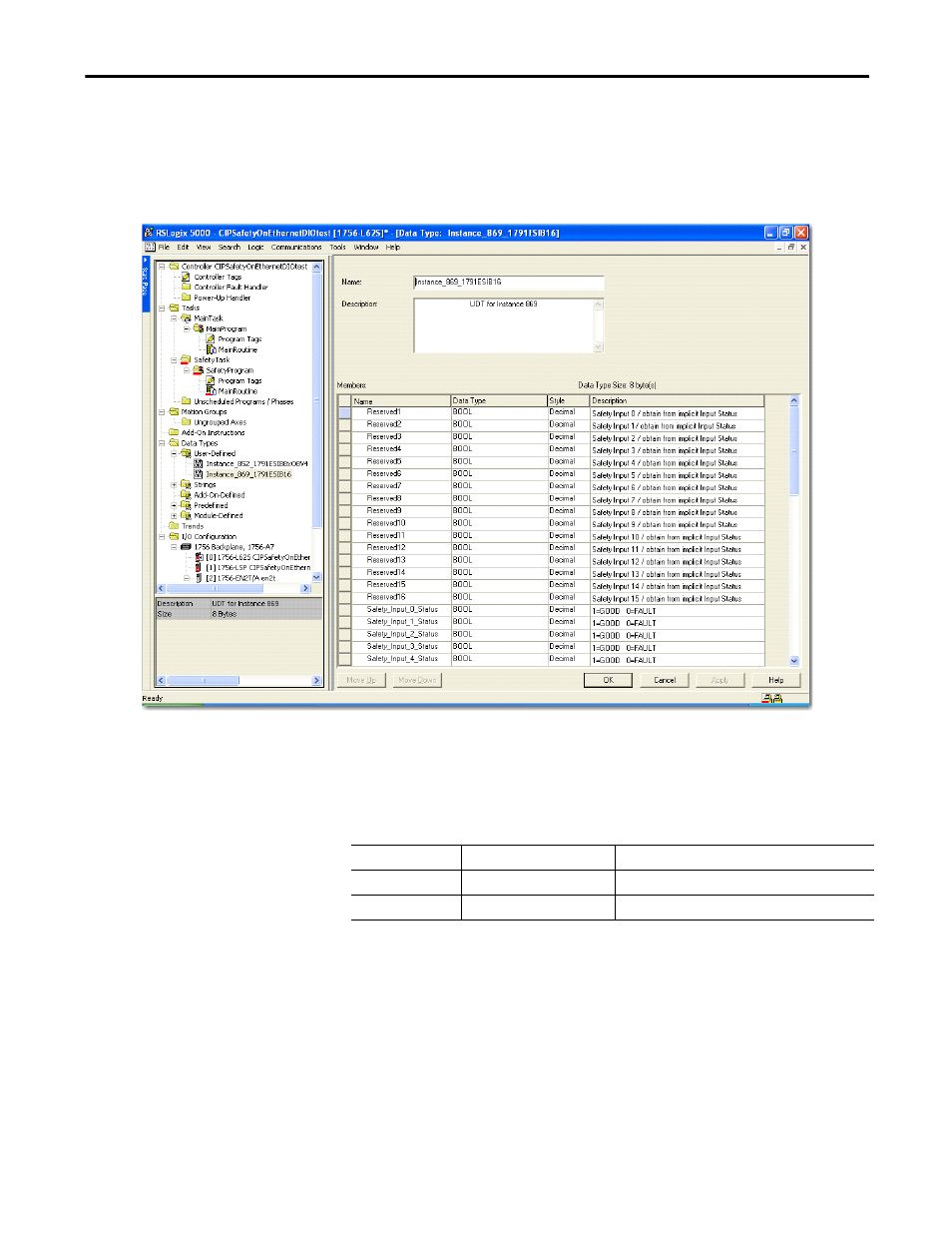

Instance 869. An easy method to do this mapping is to create a user
defined tag (UDT) for Instance 869. Once you complete this, it appears
as follows.
I/O Data Supported by Each
Module
See the table that shows a summary of default I/O data by module.
The tables show the I/O data supported by each module. Refer to I/O Assembly
Data for data arrangements.
Table 17 -Default I/O Data
Safety Connection
Assembly Instance (Hex)
1791ES-IB16
Safety
225 and 23
1791ES-IB8XOBV4
Safety
204 and 234
