A connection status tag exists for every connection.
If the RPI and CRTL for the network are set appropriately, then this status
tag must always remain HI. Monitor all connection status bits to verify
that they are not going LO intermittently due to timeouts.
Configuration Ownership - Reset Ownership
The connection between the owner and the Guard I/O module is based on the
following:
• Guard I/O EtherNet IP address
• Guard I/O safety network number
• GuardLogix slot number
• GuardLogix safety network number
• Path from GuardLogix controller to Guard I/O module
• Configuration signature
If any of these change, the connection between the GuardLogix controller and
the Guard I/O module is lost, and the yellow yield in the project tree appears.
Reset ownership to reestablish the connection by using this procedure.
1. Open the safety I/O module properties.
2. Choose the Safety tab.
3. From the dialog box, choose Reset ownership.

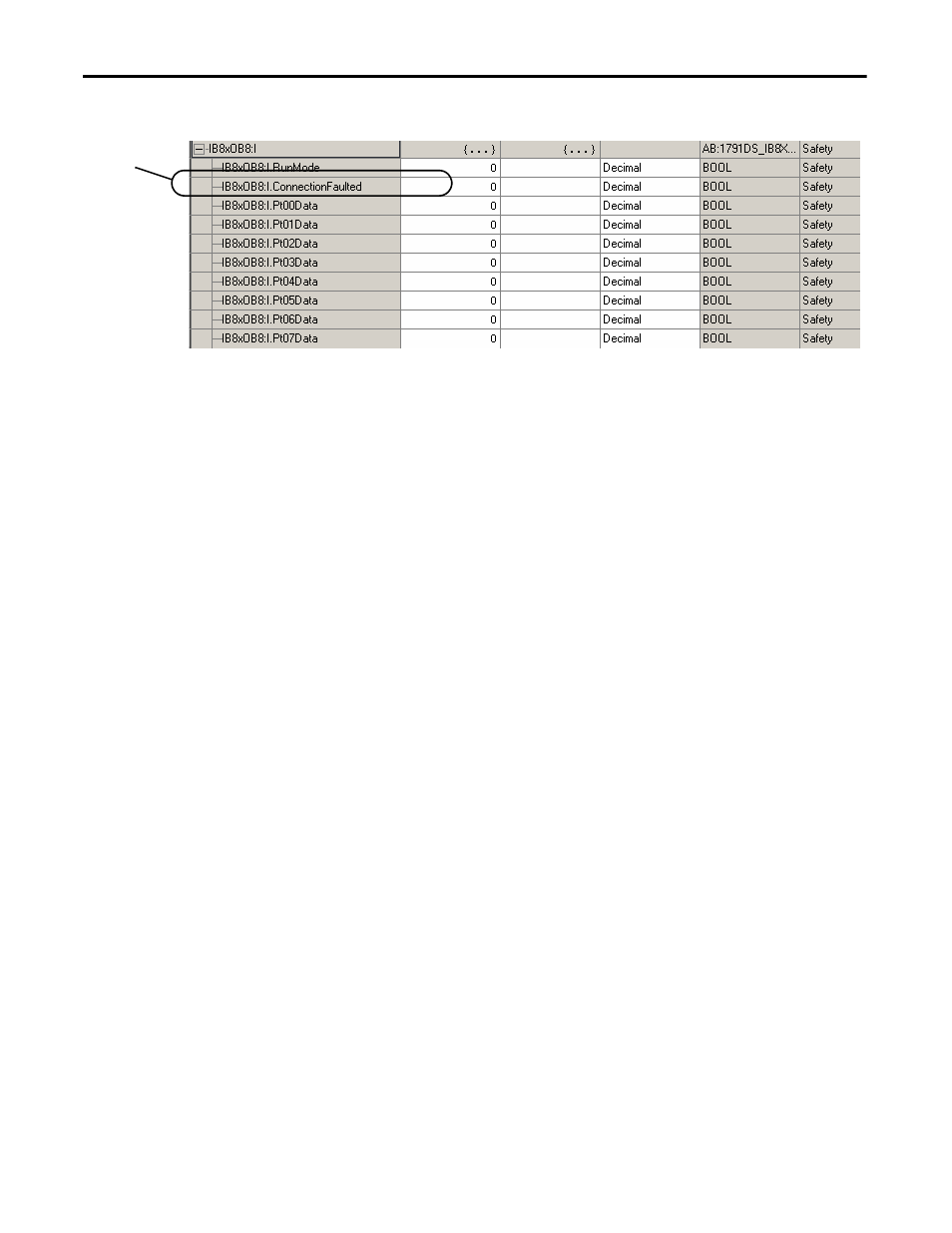

Connection
Faulted
