Appendix A
Get Diagnostic Status from Modules by Using Explicit Messaging
Another choice is to obtain overall status implicitly from the Module Definition
dialog box by choosing Combined Status from the Input Status pull-down menu.
If the Combined Status changes, use explicit messaging to obtain the point level
status.
Work with 1791ES-IB8XOBV4
Modules
To work with 1791ES-IB8XOBV4 modules, follow this procedure.

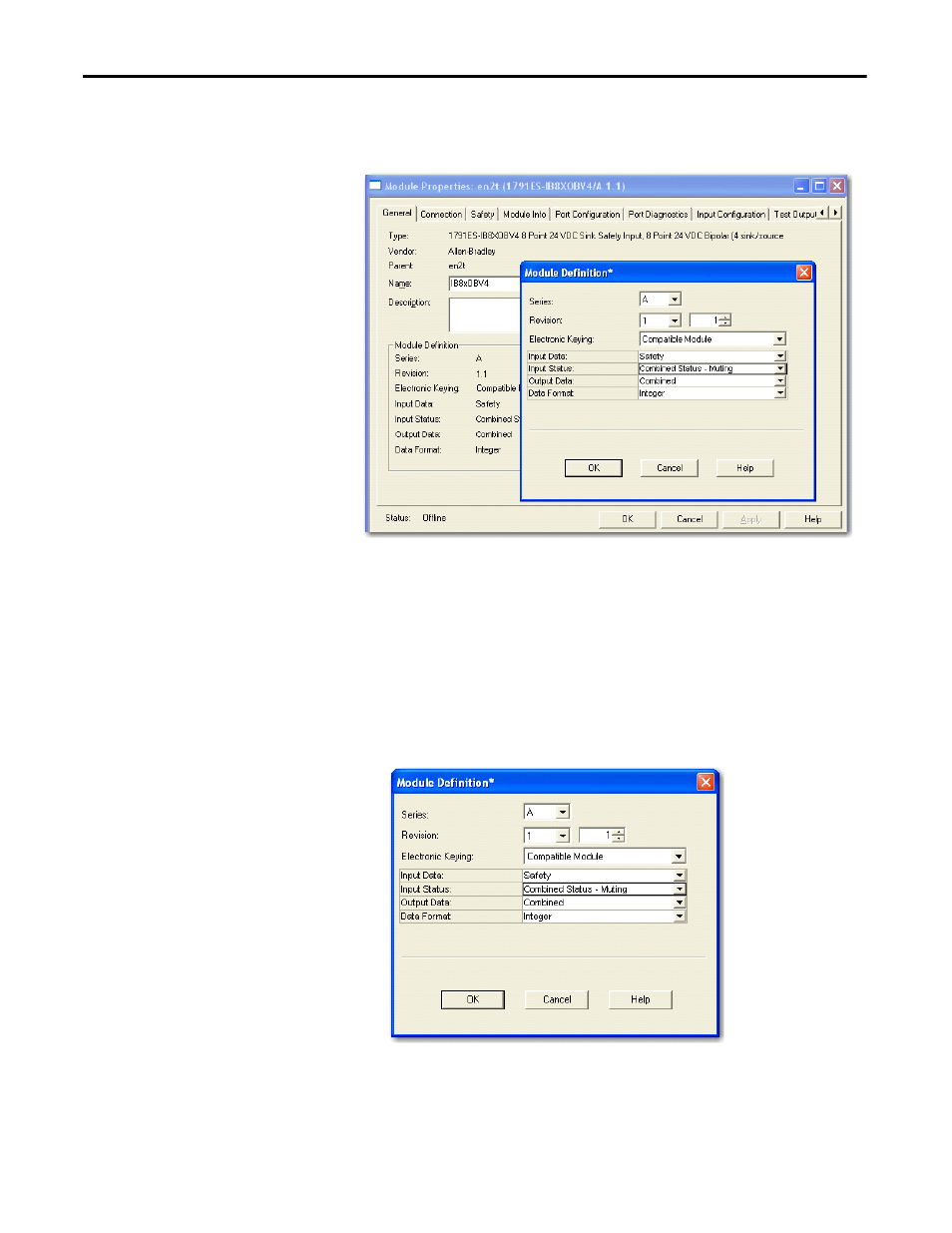

1. In the Module Definition dialog box, from the Input Status pull-down
menu, choose Combined Status.
