Page 50

50
Rockwell Automation Publication 1791ES-UM001D-EN-P - May 2013
Chapter 5
Configure the I/O Modules by Using the Logix Designer Application
c. For Description, if desired, type a description.
For a detailed explanation of the safety network number (SNN), see the
GuardLogix Controller Systems Safety Reference Manual listed in the
Additional Resources on
page
, noting that in most cases, you use the
default provided by the Logix Designer application.

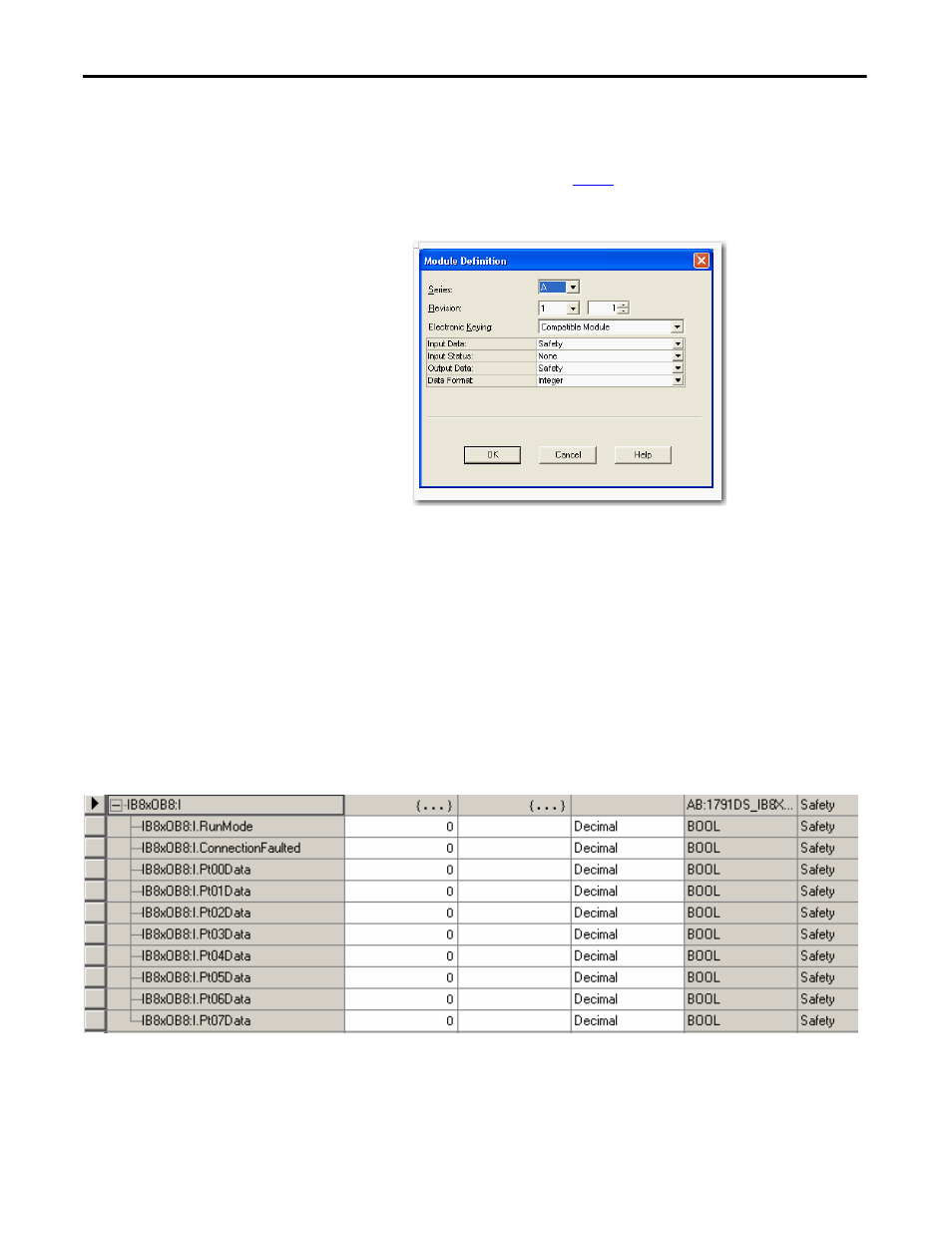

d. Click Change to see the Module Definition dialog box.
e. From the Module Definition dialog box, select values to configure what
data and status tags to generate implicitly for the safety module, noting
that you can configure Input Data, Input Status, and Output Data.
Input Data Options
Choose from these options:
• Safety - Selecting Safety creates these tags for the target module:
– RunMode: Module mode
– ConnectionFaulted: Communication status
– Safety Data: Safety inputs from module
