Connecting wiring – Rockwell Automation 1771-N SERIES High Resolution Analog Module User Manual User Manual

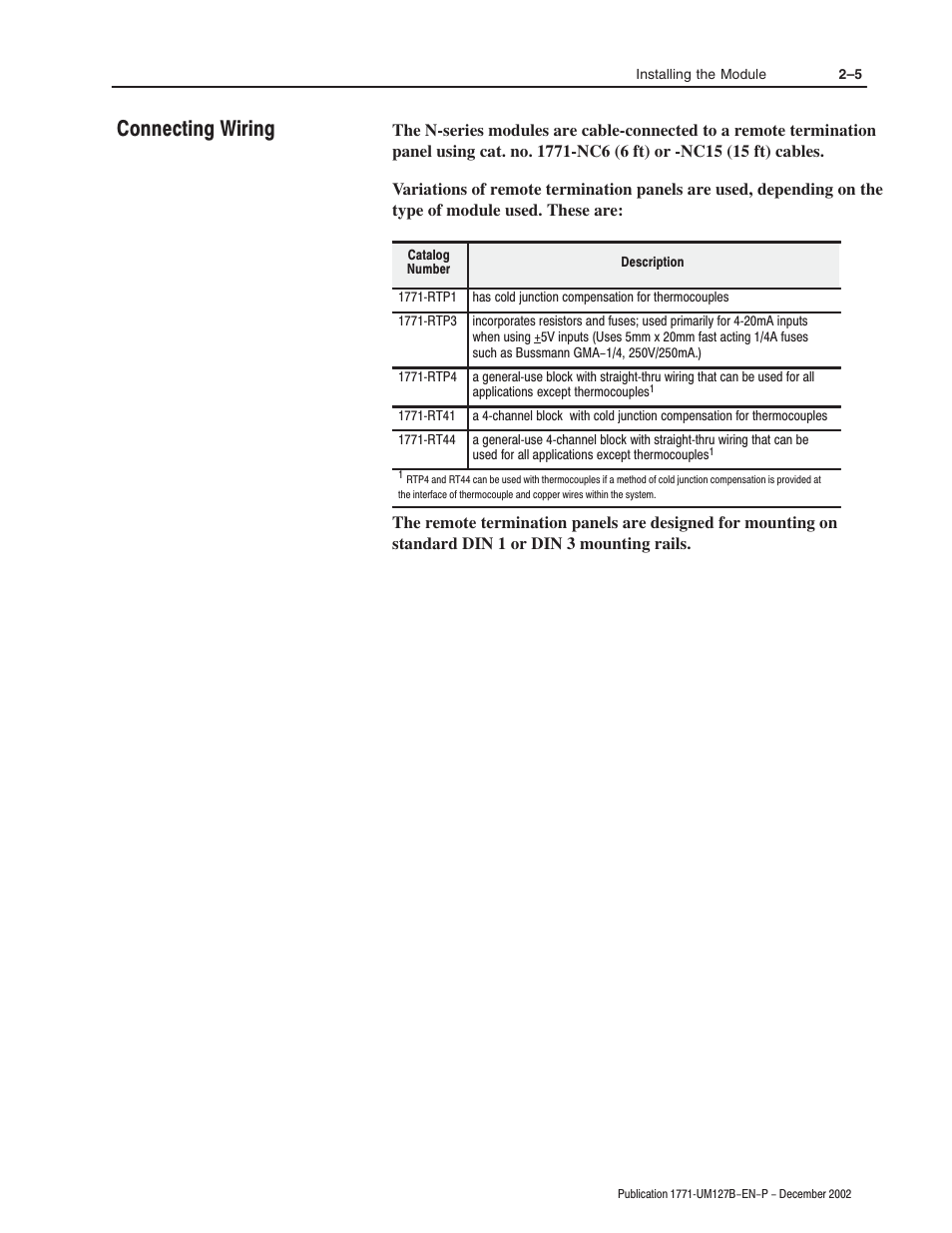

Page 23
