66 Rockwell Automation Publication 20B-IN014H-EN-P - June 2013
PowerFlex 700 Adjustable Frequency AC Drive – Frames 7…10

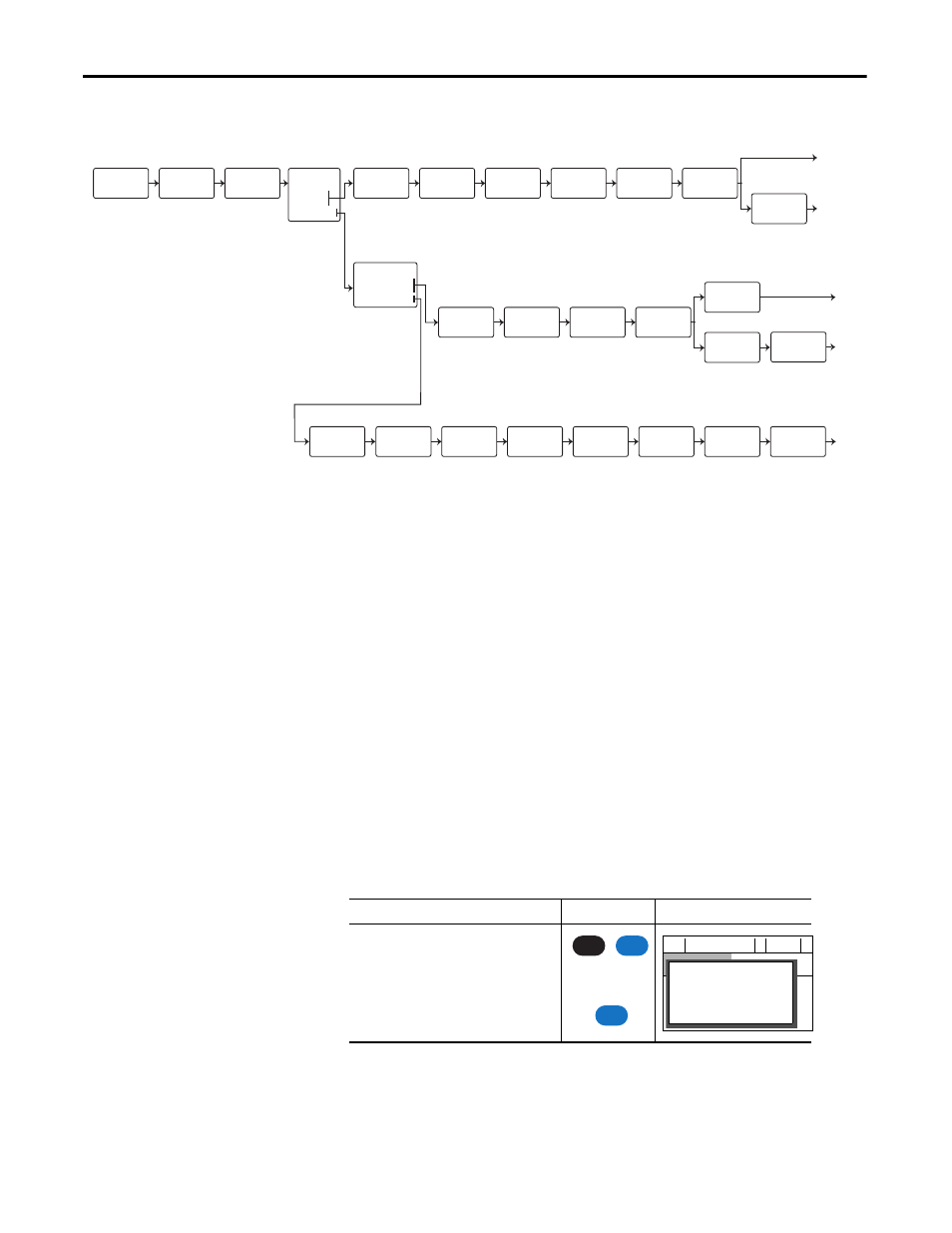

Start Up Menu
Running S.M.A.R.T. Start
During a Start Up, the majority of applications require changes to only a few
parameters. The LCD HIM on a PowerFlex 700 drive offers S.M.A.R.T. start,
which displays the most commonly changed parameters. With these parameters,
you can set the following functions:
S - Start Mode and Stop Mode
M - Minimum and Maximum Speed
A - Accel Time 1 and Decel Time 1
R - Reference Source
T - Thermal Motor Overload
To run a S.M.A.R.T. start routine:
Configures
Motor Control
Method
Motor Control
Select
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Motor Data and
Ramp Times
Optimize Torque
and
Verify Direction
Motor Tests
(1)
Set Min/Max
Speed and
Direction Control
Speed Limits
Configure
Source, Value
and Scale for
Speed References
Speed/Torque
Control
Start/Stop/I/O
Configure
Control Method
(2 Wire/3 Wire),
I/O, Digital I/O
& Analog Outputs
Configure for a
Specific Application
such as; Auto Restart,
Flying Start, etc.
Basic
Start-Up Continue
Start Over
Intro
Configures
Motor Control
Method
Motor Control
Select
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Motor Data and
Ramp Times
Optimize Torque
and
Verify Direction
Motor Tests
Set Min/Max
Speed and
Direction Control
Speed Limits
Configure
Source, Value
and Scale for
Speed References
Speed/Torque
Control
Done /
Exit Pos/Spd Profile
Pos/Spd Profile
Done /
Exit Torq Proving
Torq Proving
Detailed
Done /
Exit Done /
Exit Application
Selection:
1. SMART
2. Basic
3. Detailed
4. Application
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Enter Pump
Data
Motor Data and
Ramp Times
Well Pump
Type
Optimize Torque
and
Verify Direction
Motor Tests Pump Data Start/Stop/I/O
Configure
Control Method
(2 Wire/3 Wire),
I/O, Digital I/O
& Analog Outputs
Configure
Source, Value
and Scale for
Speed References
Speed/Torque
Control
Torque Alarm Process Display Done /
Exit
Selection:
1. Torq Prove
2. Pos/Spd Profile
3. Oil Well Pumps
Done /
Exit
(1) During Motor Tests and tuning procedures, the drive can modify certain parameter values for proper Start Up operation. These values are then reset to their original values when Start Up is complete.
The affected parameters are: 053, 080, 276, 278 and 361…366. If power is removed from the drive during the tests without aborting the auto-tune procedure, these parameters cannot be reset to
their original value. If this situation occurs, reset the drive to factory defaults and repeat the Start Up procedure.
Step Key(s) Example LCD Displays
1. Press ALT and then Esc (S.M.A.R.T). The
S.M.A.R.T. start screen appears.
2. View and change parameter values as
desired. For HIM information, see
Appendix B in the User Manual.
3. Press Esc to exit the S.M.A.R.T. start.
Esc
Esc
ALT F-> Stopped Auto
0.0 Hz
Main Menu:
Diagnostics
Parameter
SMART List:
Digital In2 Sel
Stop Mode A
Minimum Speed
