Page 47
Rockwell Automation Publication 20B-IN014H-EN-P - June 2013
47
PowerFlex 700 Adjustable Frequency AC Drive – Frames 7…10

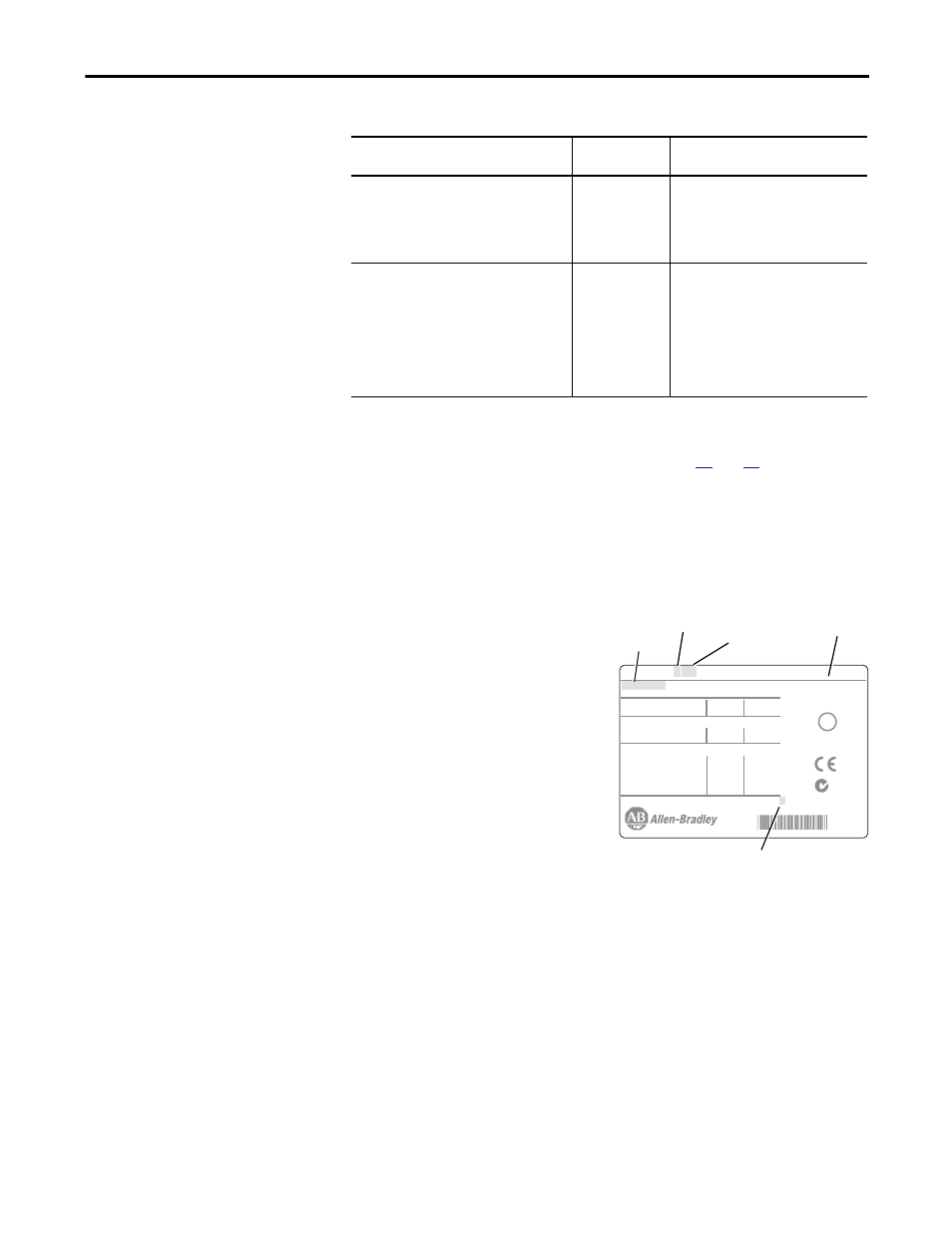

Table 5 - Recommended Power Jumper Configurations
To connect or disconnect these devices, refer to pages
.
On an ungrounded distribution system where the line-to-ground voltages on any
phase could exceed 125% of the nominal line-to-line voltage, install an isolation
transformer. See Wiring and Grounding Guidelines for PWM AC Drives,
publication DRIVES-IN001 for more information on impedance grounded and
ungrounded systems.
Drive Identification
Refer to the drive nameplate and locate
the “Voltage Code,” “Current Rating,”
and “Frame.” Use this information to
find the proper procedure in the
following tables.
Power Source Type
(1)
(1) It is highly recommended to accurately determine the power source type and then configure appropriately.
MOV/Input Filter
Caps
(2)
(2) When MOVs are disconnected, the power system must have its own transient protection to ensure known and controlled voltages.
Benefits of Correct Configuration on
Power Source Type
Solid Ground
• AC fed, solidly grounded
• DC fed from passive rectifier which has an AC
source and solid ground
Connected
• Reduced electrical noise,
• Most stable operation,
• EMC compliance,
• Reduced voltage stress on components
and motor bearings.
Non-Solid Ground
• AC fed ungrounded
• Impedance grounded
• High resistive ground
• B phase ground
• Regenerative unit such as common DC bus
supply & brake
• DC fed from an active converter
Disconnected
• Helps avoid severe equipment damage
when ground fault occurs.
Cat No. 20B
D xxx
x x xxxxxxx
Made in the USA (TAC 1J)
Rockwell Automation, Mequon WI 53092-4400
UL TYPE 1/IP20
Mfd. in 2007 on Aug 1
Frame:
3
Serial Number: xxxxxxx
Series: B
I/O: 24VAC/DC (Standard)
Original Firmware V. x.xxx
Listed
Ind. Cont
Eq. 966X
U
c
US
L
®
Normal Duty Power
Heavy Duty Power
AC Voltage Range
Amps
Input: 3 Phase, 47-63Hz
Output: 3 Phase, 0-400 Hz
AC Voltage Range
Base Hz (default)
Continuous Amps
1 Min Overload Amps
3 Sec Overload Amps
xxx kW
xxx kW
342-440
xxx
0-400
50 Hz
xxx
xxx
xxx
xxx kW
xxx kW
432-528
xxx
400V
480V
0-460
60 Hz
xxx
xxx
xxx
N223
Voltage Code
Frame
Current Rating
UL Type
Series
