Rockwell Automation Publication 20B-IN014H-EN-P - June 2013 11
PowerFlex 700 Adjustable Frequency AC Drive – Frames 7…10

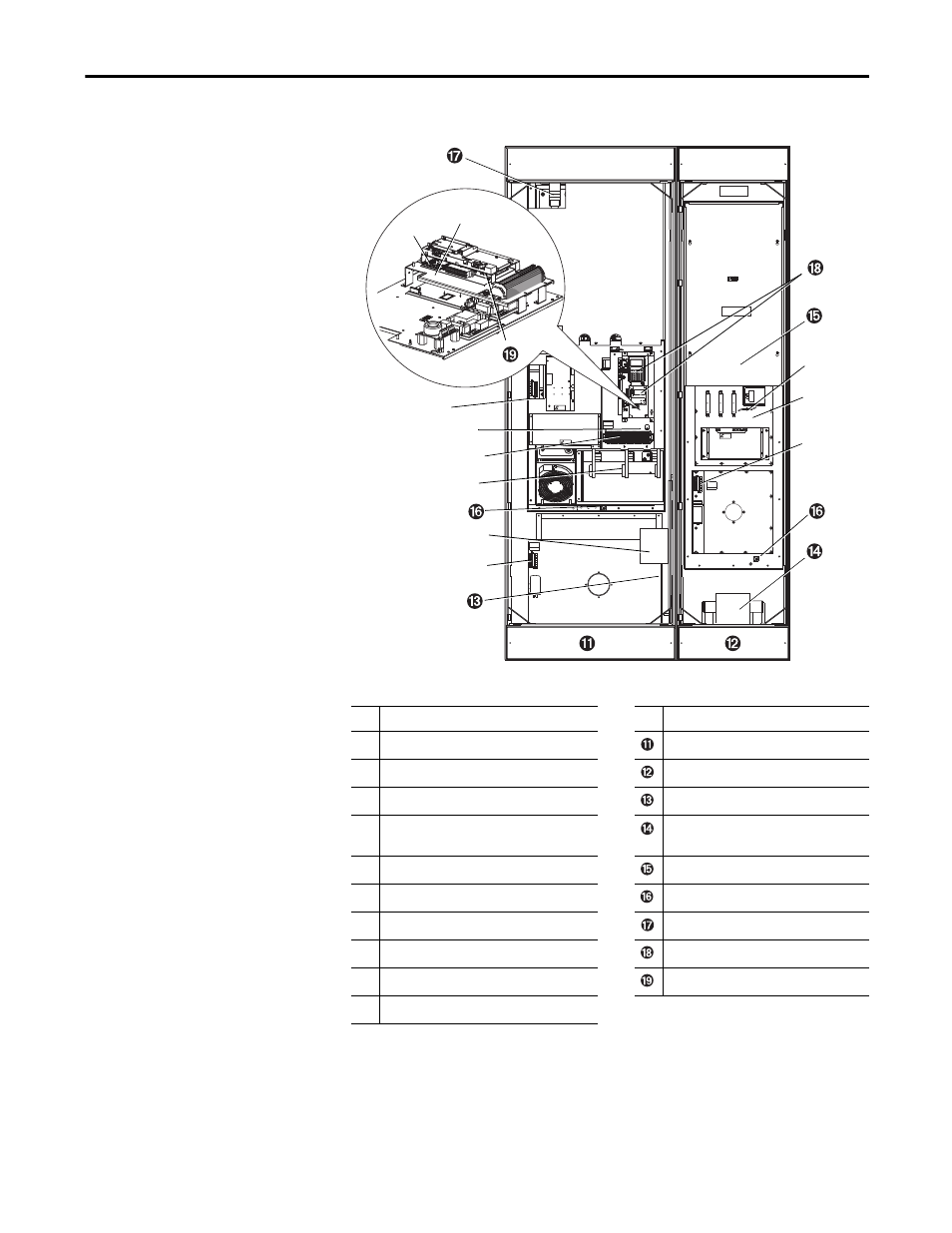

Frame 10
AC Input drive is shown. For DC Input drives, reference the left Inverter section.
No. Component No. Component
➊ Motor Terminal Block Inverter Section
➋ PE Ground Converter Section
➌ I/O & Auxiliary Control Voltage - TB11 PE Bus Bar (IP20 Only)
➍ Fan Terminal Block - TB9
(Capacitor Assembly Fan) DC Link Choke
(AC input only, supplied loose for IP00)
➎ Fan Transformer (IP20 Only) AC Input Terminals (Behind Shield)
➏ Fan Terminal Block - TB10 (Heatsink Fan) PE Connection Point (IP00)
➐ Nameplate DC Bus/Brake Terminals
➑ Main Control Board HIM/Comm Module (Optional)
➒ MOV Jumper Encoder Feedback Board (Optional)
➓ Fan Terminal Block - TB12 (Heatsink Fan)
120
IN1 120
IN2 3 4 5 6
DC+
DANGER
DANGER
TB9 8 AMPERES RMS MAXIMUM
120
IN1 120
IN2 3 4 5 6
V W U
TB11 PE 25 AMPERES RMS MAXIMUM
GND
RISK OF SHOCK
REPLACE AFTER SERVICING ! DANGER
RISK OF SHOCK
REPLACE AFTER SERVICING ! DANGER
RISK OF SHOCK
REPLACE AFTER SERVICING ! DANGER
TB10 8 AMPERES RMS MAXIMUM
DANGER
120
IN1 120
IN2 3 4 5 6
TB10 8 AMPERES RMS MAXIMUM
GND
RISK OF SHOCK
REPLACE AFTER SERVICING ! DANGER
➋
➍
➎
➒
➐
➏
➑
➌
➓
➊
➐
