Jumper settings and locations – Rockwell Automation 20D PowerFlex 700 Installation Instructions - Frames 7…10 User Manual
Page 48

48
Rockwell Automation Publication 20B-IN014H-EN-P - June 2013
PowerFlex 700 Adjustable Frequency AC Drive – Frames 7…10

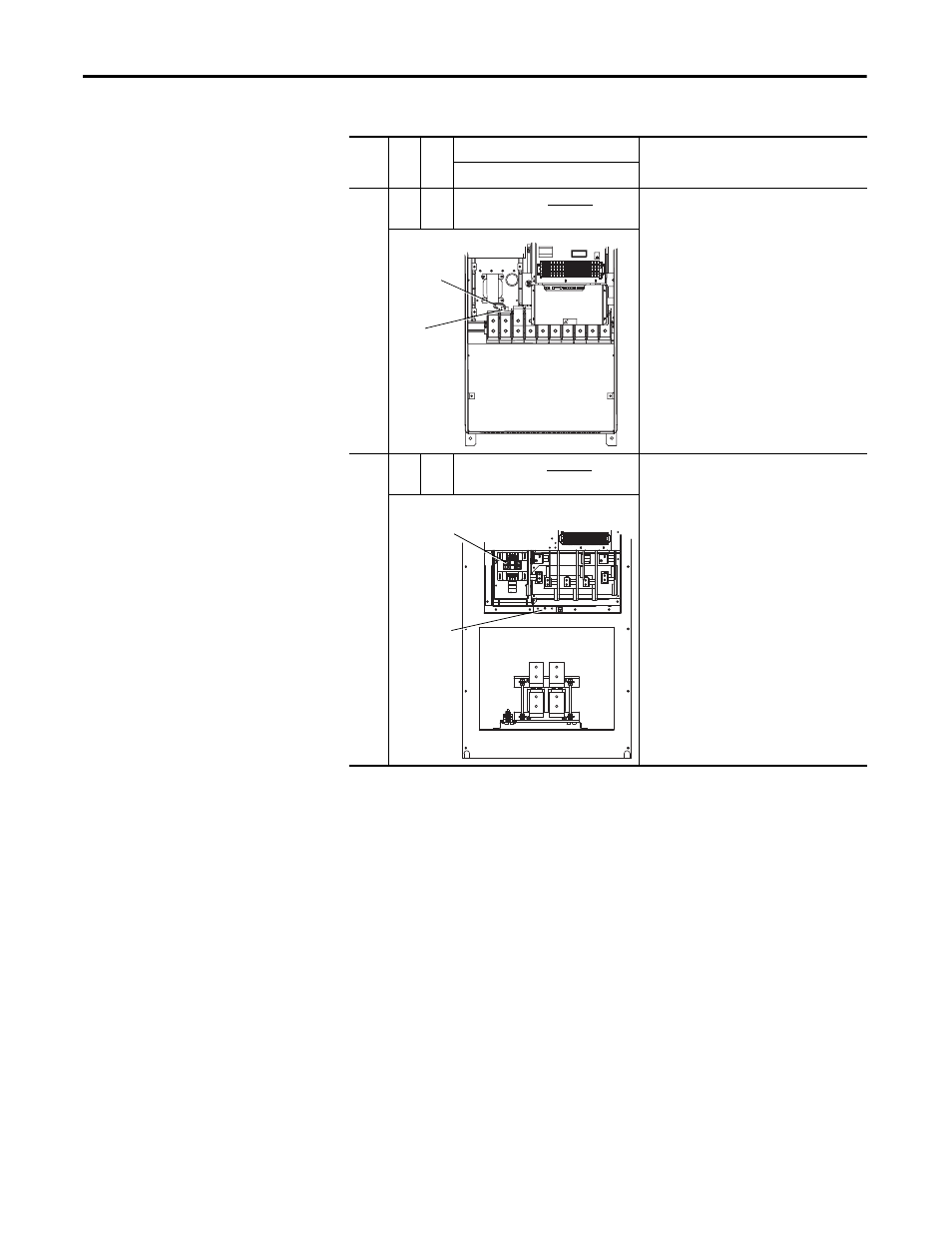

Jumper Settings and Locations
Fram
e
Vo
lt
ag
e
Code
Current
Ra
ti
ng
Factory Default Jumper Settings
Power Source Type
MOV
(1) (2)
7
All
All
A green/yellow wire connected to a
ground stud on the drive chassis.
Solid Ground
Connect the green/yellow MOV jumper wire to the
ground stud on the drive chassis.
Non-Solid Ground
The green/yellow MOV jumper wire must be
insulated from ground. If necessary, remove the
wire from the stud on the drive chassis. Insulate/
secure the wire to guard against unintentional
contact with the chassis or components.
8…9
All
All
A green/yellow wire connected to the PE
bus bar.
Solid Ground
Connect the green/yellow MOV jumper wire to
“PE.”
Non-Solid Ground
Remove the green/yellow MOV jumper wire from
the PE bus bar. Insulate/secure the wire to guard
against unintentional contact with the chassis or
components.
+DC
USE 75
°
COPPER WIRE ONLY
TORQUE LARGE TERMINALS TO 10 N-m (87LB-IN)
-DC
PE
PE
R-L1
T-L3
RISK OF SHOCK
REPLACE AFTER
SERVICING
!
DANGER
U-M1
V-M2
W-M3
S-L2
TB11
25 AMPERES RMS
MAXIMUM
ALLEN-BRADLEY
MADE IN U.S.A.
PE
MOV
Ground
Stud
V
W
U
R
S
T
DC-
DC+
GND
MOV
(under boards)
PE Bus
Bar
