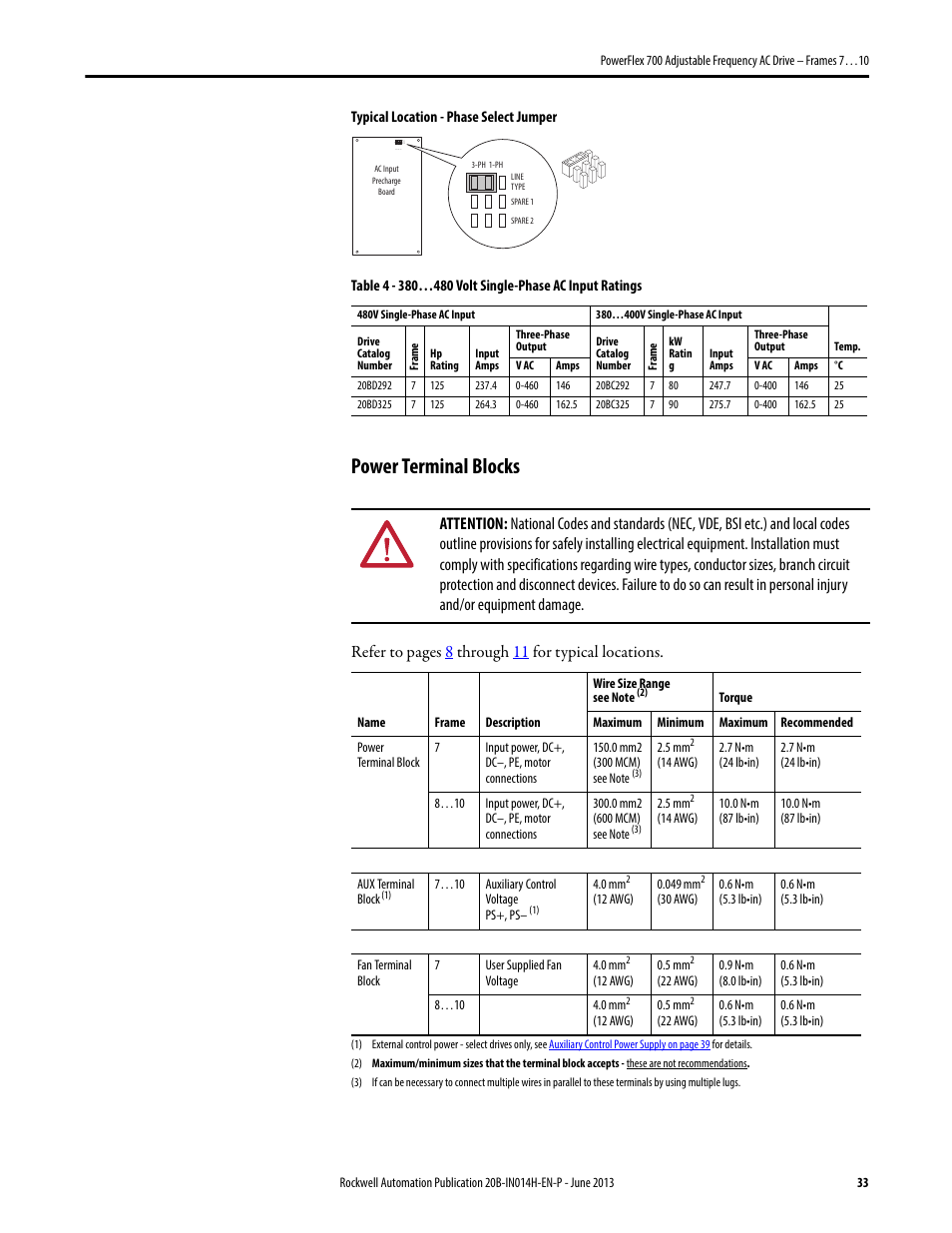

Power terminal blocks, Table 4, Refer to pag es 8 through 11 for typical locations – Rockwell Automation 20D PowerFlex 700 Installation Instructions - Frames 7…10 User Manual
Page 33
