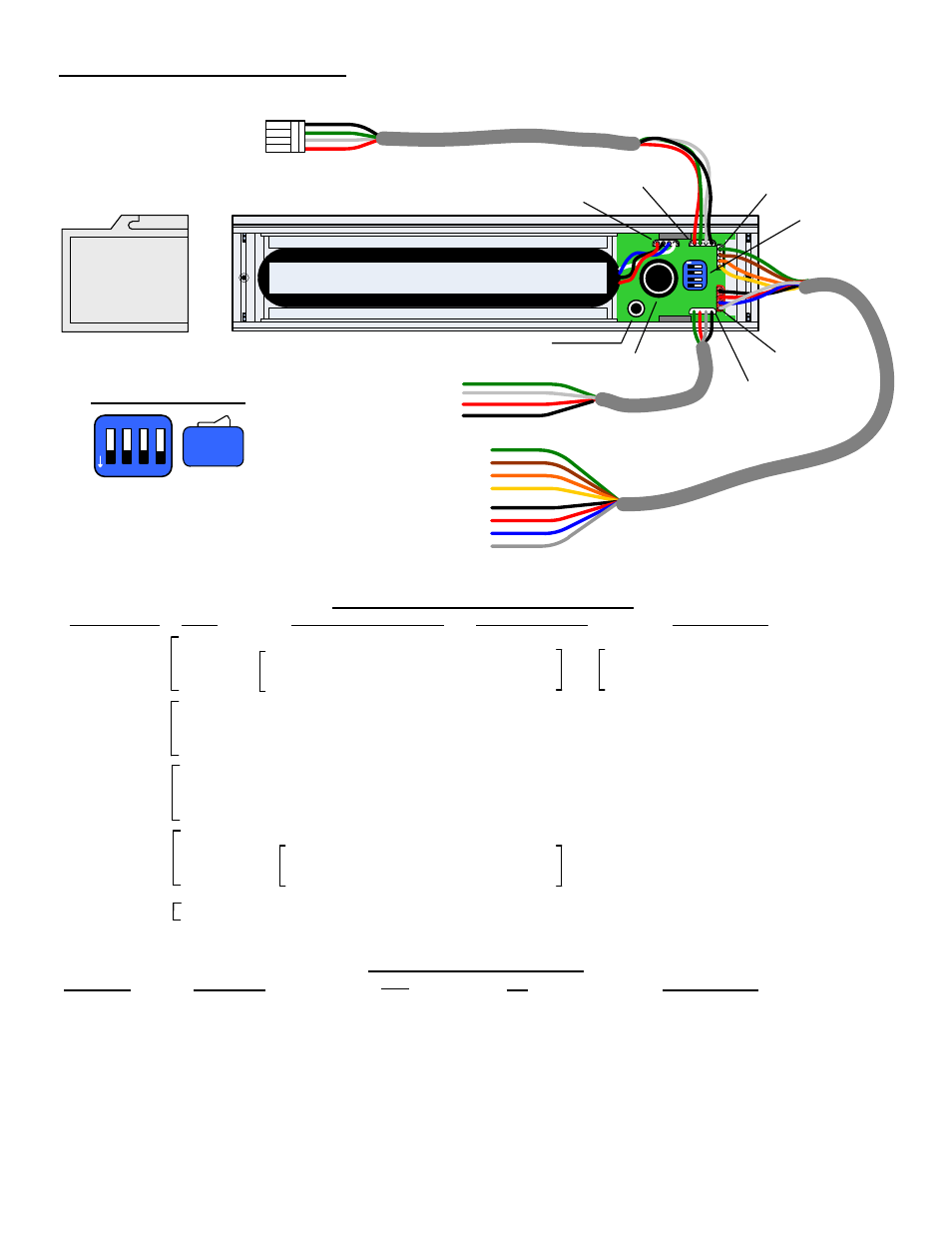

WIRING DETAILS & FUNCTIONS (ALL OPTIONS SHOWN)
ROCKER SWITCH SETTINGS
1
REX TIME
1 SECOND
10 SECONDS
INTERNAL RELOCK TIME DELAY WHEN USING
REMOTE REX CONTROLS
2
POWER-UP OPTION **
DISABLED **
ENABLED
MANUAL RESET ON POWER-UP REQUIRED WHEN
DISABLED & AUTO RESET ON POWER-UP WHEN ENABLED**
3
REMOTE TRIGGER
DISABLED
ENABLED
ENABLES REMOTE TRIGGER FOR EXTERNAL
ACTIVATION OF DELAYED EGRESS ALARM
4
MASTER / SLAVE
MASTER
SLAVE
DESIGNATES LOCK AS MASTER OR SLAVE FOR
TANDEM APPLICATION – CABLE REQUIRED
** auto reset not available on some versions
SWITCH #
DESCRIPTION
ON
OFF
FUNCTION
WIRING & CABLE CONNECTIONS
P:\INSTALLATION INST\Delayed Egress\INST-1581S\INST-1581S.vsd REV D7 03-13 Page 8
1
2
3
4
O
F
F
R
O
C
K
E
R
D
O
W
N
J
1
B
J
1
A
ROCKER SWITCHES
TRIGGER SENSOR
LOCK COIL CONNECTOR
TANDEM CABLE (OPTIONAL)
J1B CONNECTOR
J1A CONNECTOR
MASTER/SLAVE
CONNECTOR
TO MASTER/SLAVE
CONNECTOR ON
SECOND 1581S
GREEN
BROWN
ORANGE
YELLOW
BLACK
RED
BLUE
WHITE
DPS OUT
DPS CONNECTOR
CONNECTOR
INPUT / OUTPUT
GREEN
REMOTE TRIGGER
INPUT
MOM GROUND TO (-) POWER USING DRY CONTACT
BROWN
RELAY – COMMON
OUTPUT
ORANGE
RELAY – N/C WHEN IN ALARM
OUTPUT
YELLOW
RELAY – N/O WHEN SECURE
OUTPUT
BLACK
POWER (-)
INPUT
REGULATED 12/24 VDC (-) POWER
RED
POWER (+)
INPUT
REGULATED 12/24 VDC (+) POWER
BLUE
RESET
INPUT
MOM GROUND TO (-) POWER - DRY CONTACT
WHITE
REQUEST TO EXIT (REX) & CONT. BYPASS
INPUT
(REX) MOM GROUND TO (-) POWER - DRY CONTACT
(CONT. BYPASS) AA GROUND TO (-) POWER – DRY CONTACT
RED
GREEN
WHITE
BLACK
SPDT DRY CONTACT OUTPUT TO REMOTE
CONTROL ANNUNCIATOR, LED OR ALARM SYSTEM
MONITOR – RATING: 1 Amp @ 30 VOLTS RESISTIVE
DESCRIPTION
CONTROL / FUNCTION
J1B
CONNECTOR
J1A
CONNECTOR
WIRE
M/SL
CONNECTOR
CABLE FOR TANDEM LOCK
CONNECTION
(OPTIONAL)
INTERCONNECT
INTERCONNECT CABLE INTERFACING TWO
1581S UNITS (MASTER & SLAVE) FOR PAIRS
OF DOORS. (CABLE MUST BE ORDERED
SEPARATELY).
DPS OPTION
CONNECTOR
GREEN
WHITE
RED
BLACK
SWITCH – COMMON
OUTPUT
SWITCH – N/C
OUTPUT
SWITCH – N/O
OUTPUT
RATING: .250 mA @ 30 VOLTS RESISTIVE
GREEN
WHITE
RED
BLACK
SPARE
-
DPS SENSOR (OPTIONAL)
DPS OPTION
CABLE
BAS OPTION
INTERNALLY WIRED SENSOR. WILL TRIGGER ALARM IF HOLDING FORCE IS BELOW NORMAL.
MAIN
CABLE
1
2
3
4
O
F
F
ROCKER DOWN
ROCKER SWITCH DETAIL
ON
OFF
SHOWN SWITCHED TO
OFF CONDITION
