SDC LR100IDCK ELECTRIC LATCH RETRACTION DEVICE KIT User Manual
Step 1, Step 2
INSTALLATION INSTRUCTIONS LR100IDCK
ELECTRIC LATCH RETRACTION DEVICE KIT
P:\INSTALLATION INST\SWITCH KITS\INST-LR100SDC.vsd REV -
08-11 Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email [email protected]

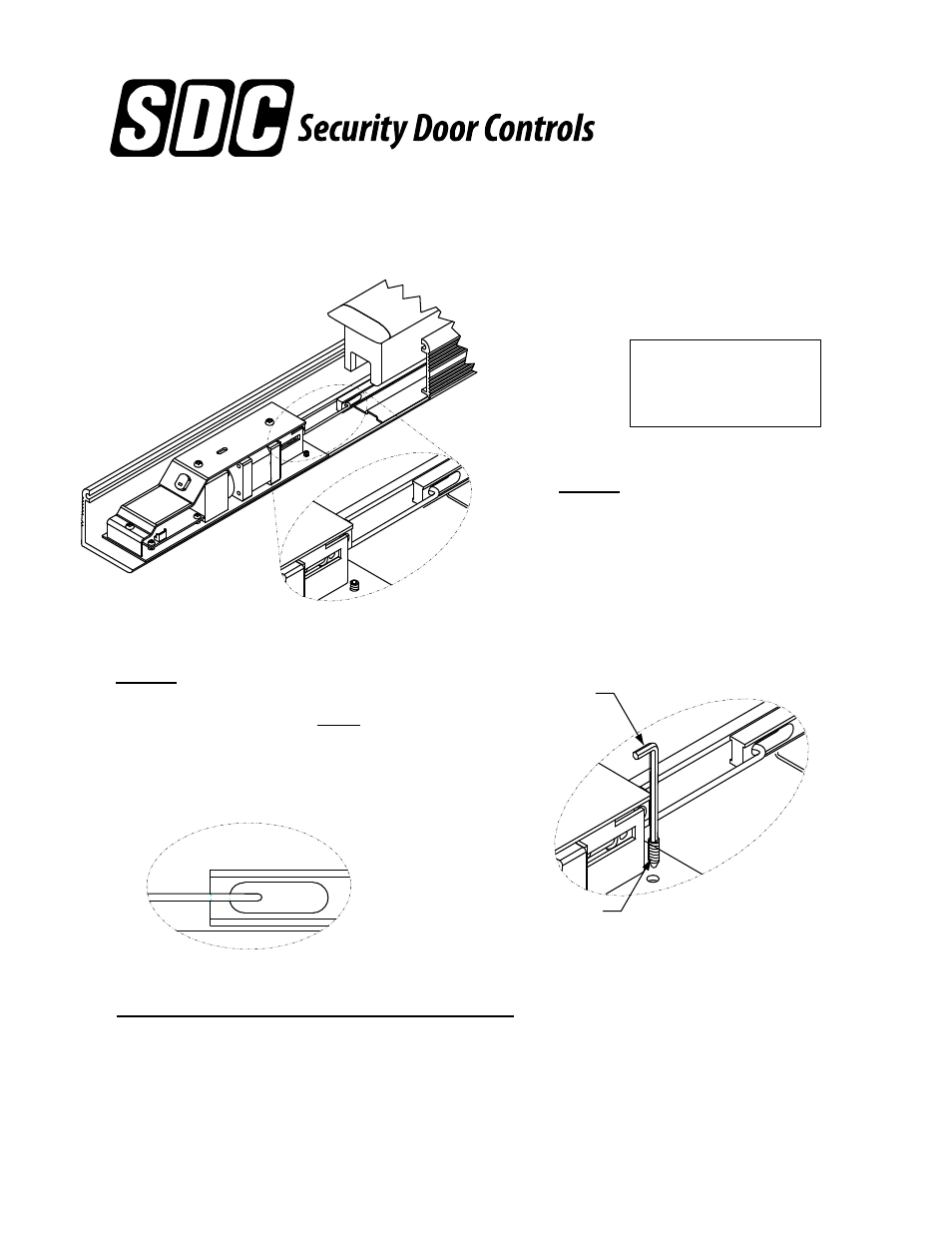

Step 1
Slide the Electric Latch Retraction
assembly into device and attach
the linkage to the latch retraction
rod.
Step 2
Carefully slide the assembly
back out until the linkage JUST
makes contact with the latch
retraction rod. Tighten set
screws.
ELECTRICAL DATA
24VDC @ 500/180mA
RED (+)
BLK (-)
PATENT PENDING
NOTE Retro-Fitting Vertical Rod Devices:
Before retro-fitting an electric latch assembly into a vertical device, the following must be done
to ensure proper alignment. Disconnect the vertical rods from the device. Install the electric
latch assembly as shown above. Once the ELR is properly installed energize it so that the
push pad is dogged down, by doing so it will allow for proper alignment for the vertical rods.
Finally reconnect the vertical rods to the device and make the proper adjusments.
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: [email protected]
SET
SCREWS
TIGHTEN SET
SCREWS TO
LOCK DEVICE
IN POSITION
