Bryant DURAPAC 551B User Manual
Page 20
20

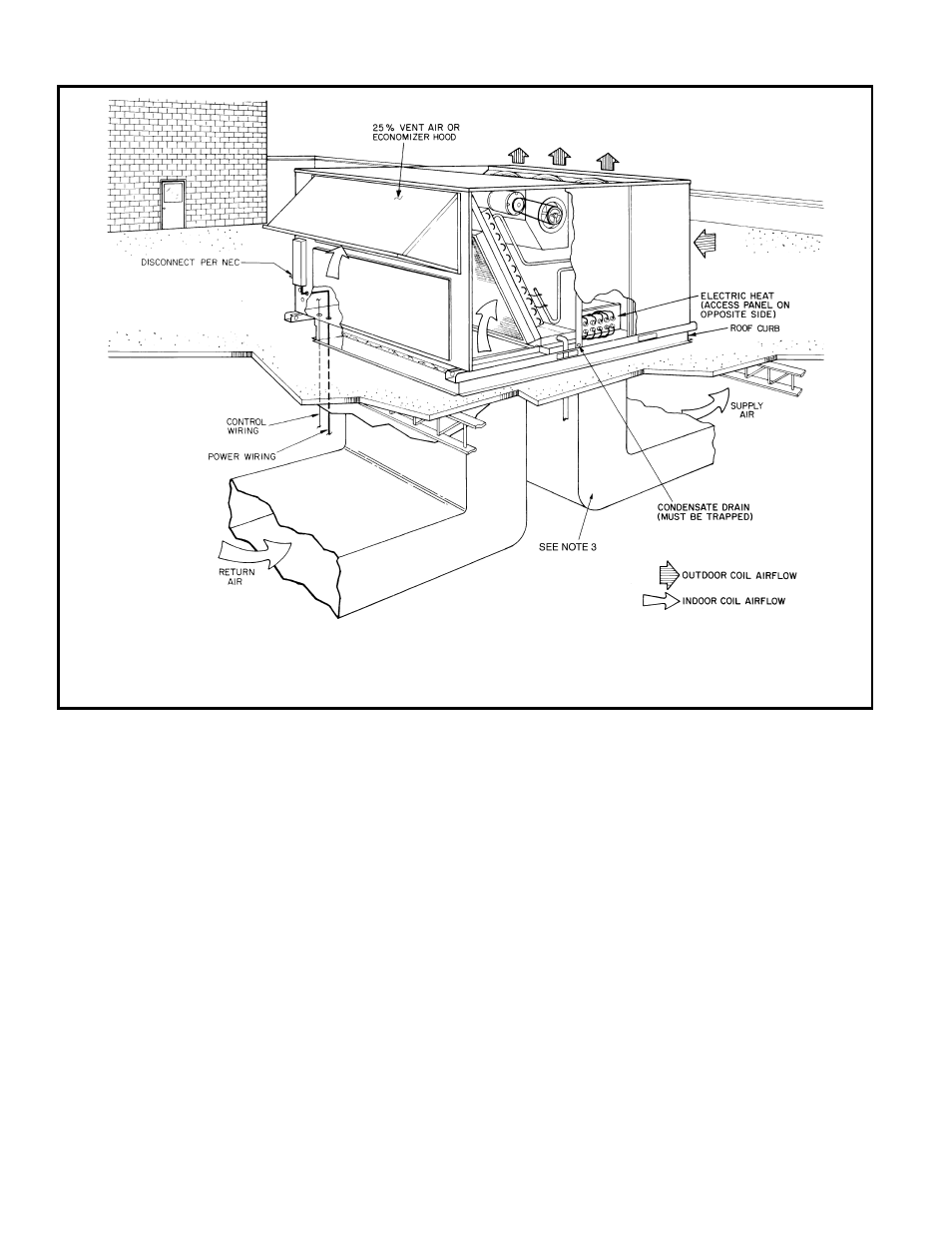

TYPICAL PIPING AND WIRING — SIZES 155-300
LEGEND
NOTES:
1. Illustration shown is a general guide only and is not intended to include all details for any specific installation.
2. Installation must comply with all applicable codes.
3. A 90-degree elbow must be installed on the supply duct connection for units equipped with electric heat.
NEC — National Electrical Code
