163

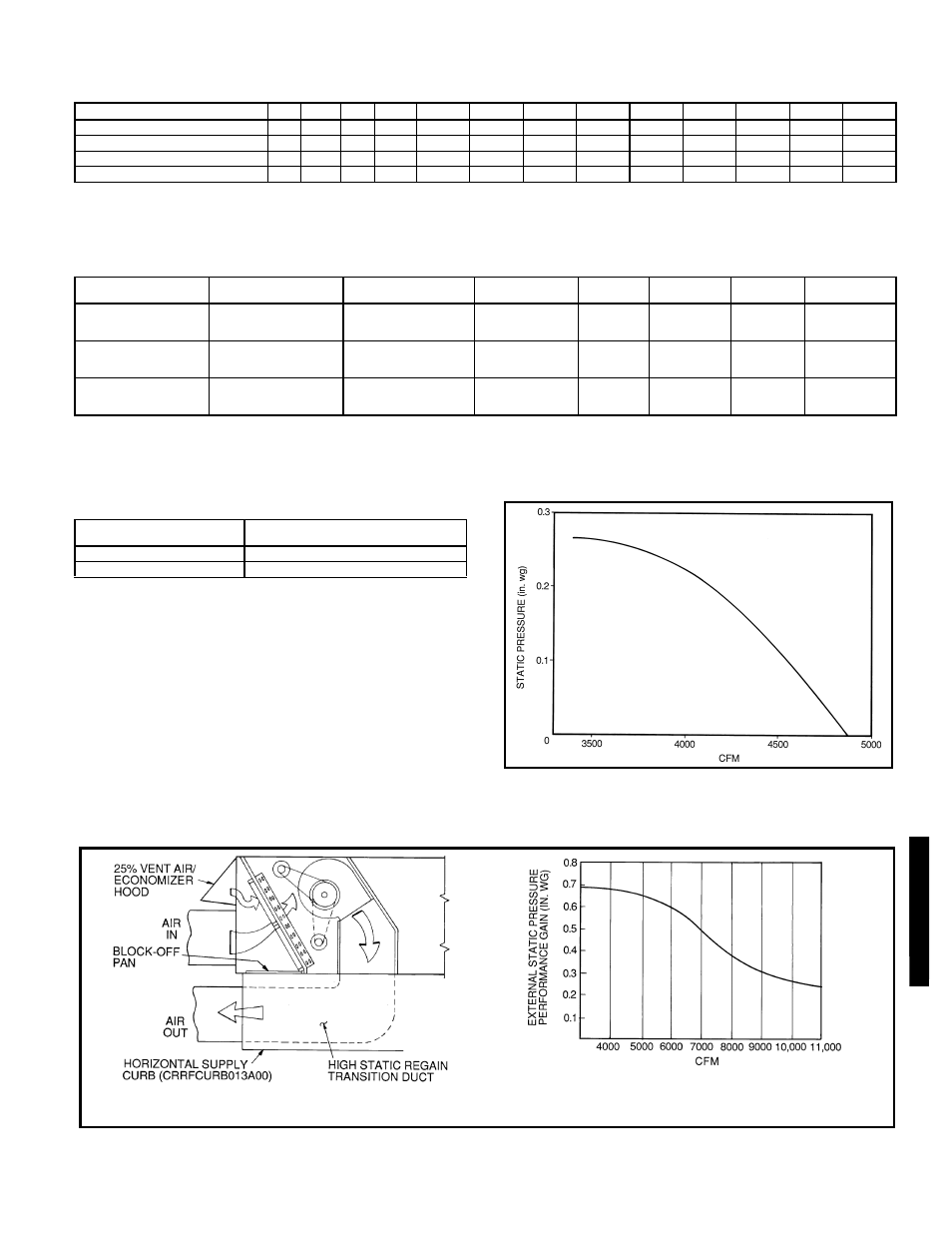

PERFORMANCE DATA (cont)
FAN RPM AT MOTOR PULLEY SETTINGS*
*Approximate fan rpm shown.
†Indicates standard drive package.
**Indicates alternate drive package.
††Due to belt and pulley style, pulley cannot be set to this number of
turns open.
EVAPORATOR FAN MOTOR PERFORMANCE
LEGEND
EVAPORATOR-FAN MOTOR EFFICIENCY
NOTE: All indoor-fan motors 5 hp and larger meet the minimum efficiency re-
quirements as established by the Energy Policy Act of 1992 (EPACT) effective
October 24, 1997.
551A 0 1 /
2
1 1 1 /
2
2 2 1 /
2
3 3 1 /
2
4 4 1 /
2
5 5 1 /
2
6
155 (208/230, 460 v)† †† †† †† †† 1064 1035 1006 978 949 920 891 863 834
155 (208/230, 460 v)** †† †† †† †† 1426 1393 1360 1327 1294 1261 1227 1194 1161
180† †† †† †† †† 1021 1002 984 965 947 928 910 891 873
180** †† †† †† †† 1200 1178 1156 1134 1112 1091 1069 1047 1025
UNIT
551A NOMINAL
HP
VOLTAGE
MAX
WATTS
EFF.
%
MAX
BHP
MAX
BkW MAX
AMPS
155
(Standard
Motor)
2.9 208 2700 85.8 3.13 2.34 9.46
2.9 230 2700 85.8 3.13 2.34 8.6
2.9 460 2700 85.8 3.13 2.34 4.3
155
(Optional
Motor)
3.7 208 3775 85.8 4.38 3.27 10.5
3.7 230 3775 85.8 4.38 3.27 10.5
3.7 460 3775 85.8 4.38 3.27 4.8
180
5 208 5180 87.5 6.13 4.57 15.8
5 230 5180 87.5 6.13 4.57 15.8
5 460 5180 87.5 6.13 4.57 7.9
BHP — Brake Horsepower
BkW — Brake Kilowatts
MOTOR
HORSEPOWER
MOTOR EFFICIENCY
(%)
2.9, 3.7 85.8
5.0 87.5
Fan Performance Using Accessory Power Exhaust
(551A155,180)
NOTE: The CRRFCURB013A00 high static regain adapter accessory may be
used to provide horizontal supply/return.
NOTE: The CRRFCURB013A00 horizontal supply/return adapter accessory
improves 551A155,180 fan performance by increasing external static pressure
by amount shown above. To convert from in. wg to Pa use the following formula:
in. wg x 249.1 = Pa
Horizontal Supply/Return Fan Performance with CRRFCURB013A00
High Static Regain Adapter
0
T
F
Q
0
04
-0
12
55
1A1
55-
18
0
