Bryant DURAPAC 551B User Manual
Page 18
18

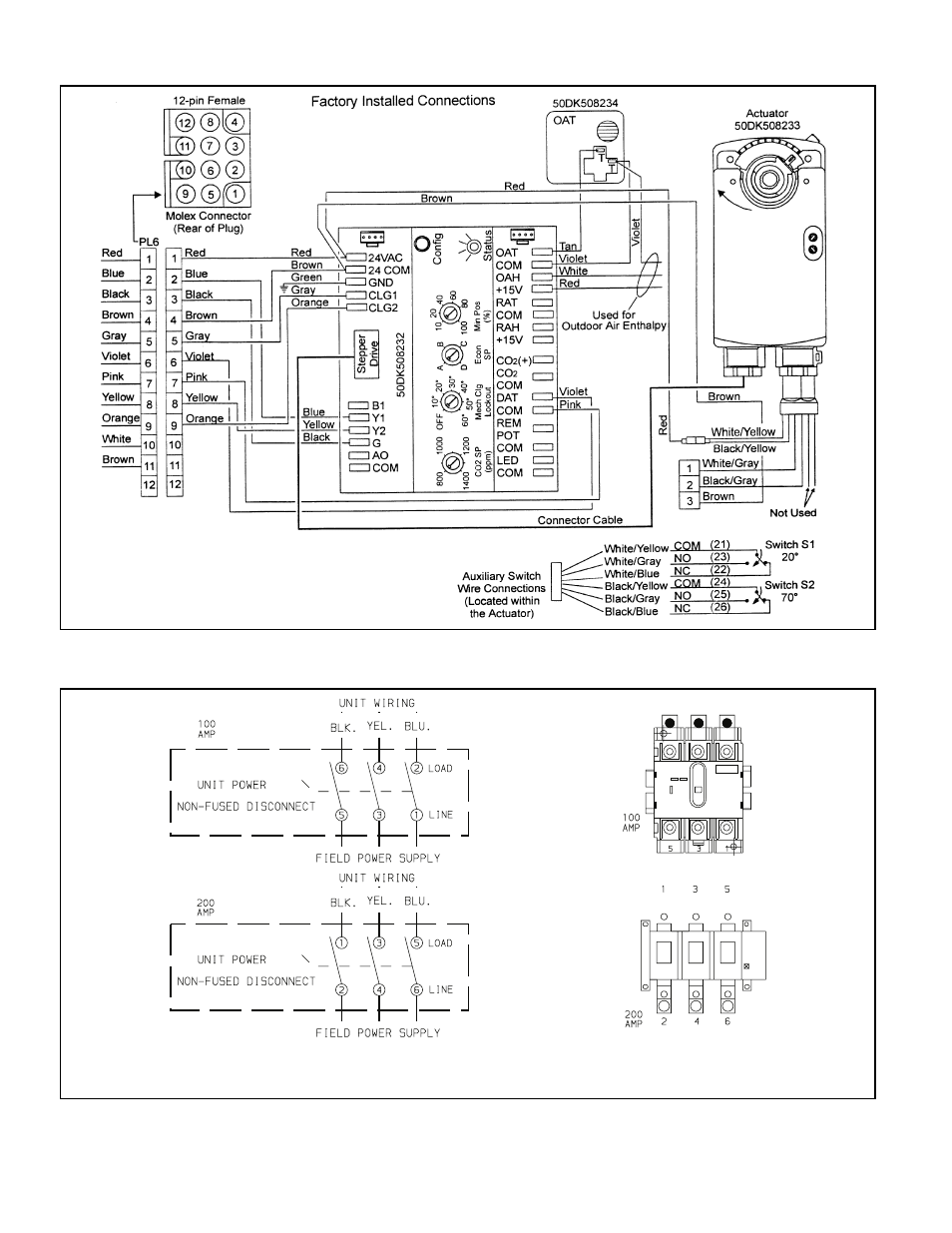

TYPICAL WIRING SCHEMATIC (cont)
LEGEND
OAT — Outdoor-Air Thermostat
EconoMi$er Wiring
Non-Fused Disconnect (Optional)
NOTES:
1. If the Non-Fused Disconnect Option is ordered, the Non-Fused Disconnect will be factory-installed.
2. The Disconnect takes the place of TB-1 as shown on the unit wiring diagram label and the component arrangement label.
