ACCESSORY DIMENSIONS (cont)
2'-1 5/8"
2'-2 1/16"
1'-6 5/16"

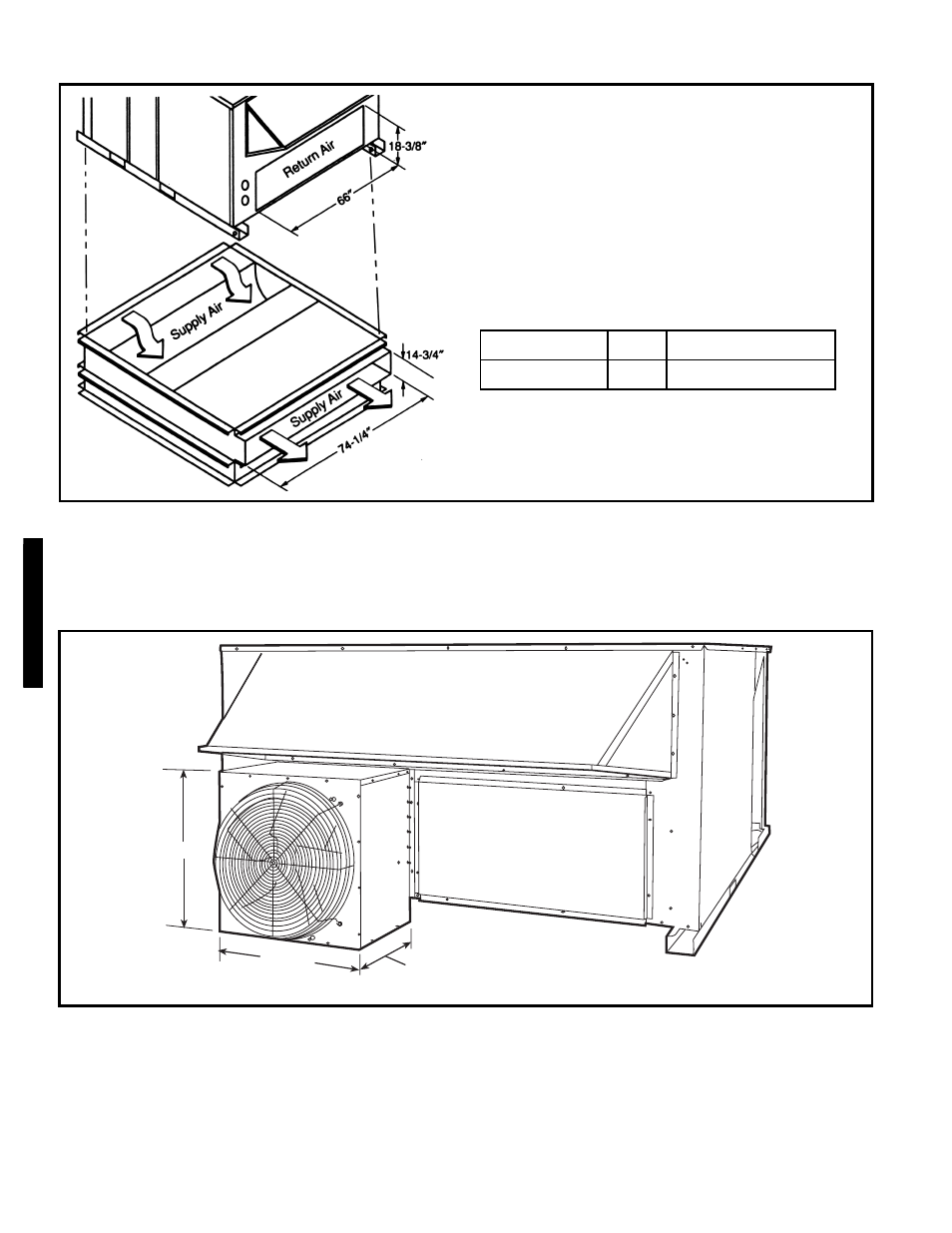

Horizontal Supply/Return Adapter Installation
NOTE: CRRFCURB013A00 is a fully factory preassembled horizontal
adapter and includes an insulated high static regain transition duct
which substantially improves fan static performance.
The Barometric Relief Damper and Power Exhaust accessories
must be installed in the Return Air Duct and are not available with the
horizontal adapter.
For Horizontal return applications: The power exhaust relief must be
installed in the return air duct.
ACCESSORY
PACKAGE NO.
CURB
HEIGHT
DESCRIPTION
CRRFCURB013A00
2 ′′′′-0″″″″
(610)
Pre-Assembled, High Static,
Horizontal Adapter
Barometric Relief/Power Exhaust
For Horizontal return applications: The power exhaust
relief must be installed in the return air duct.
