Form # 147069 Issue 09/06 73
Adapter Mounting Instructions
for Lexion Combines
PREPARING THE ADAPTER (cont’d.)

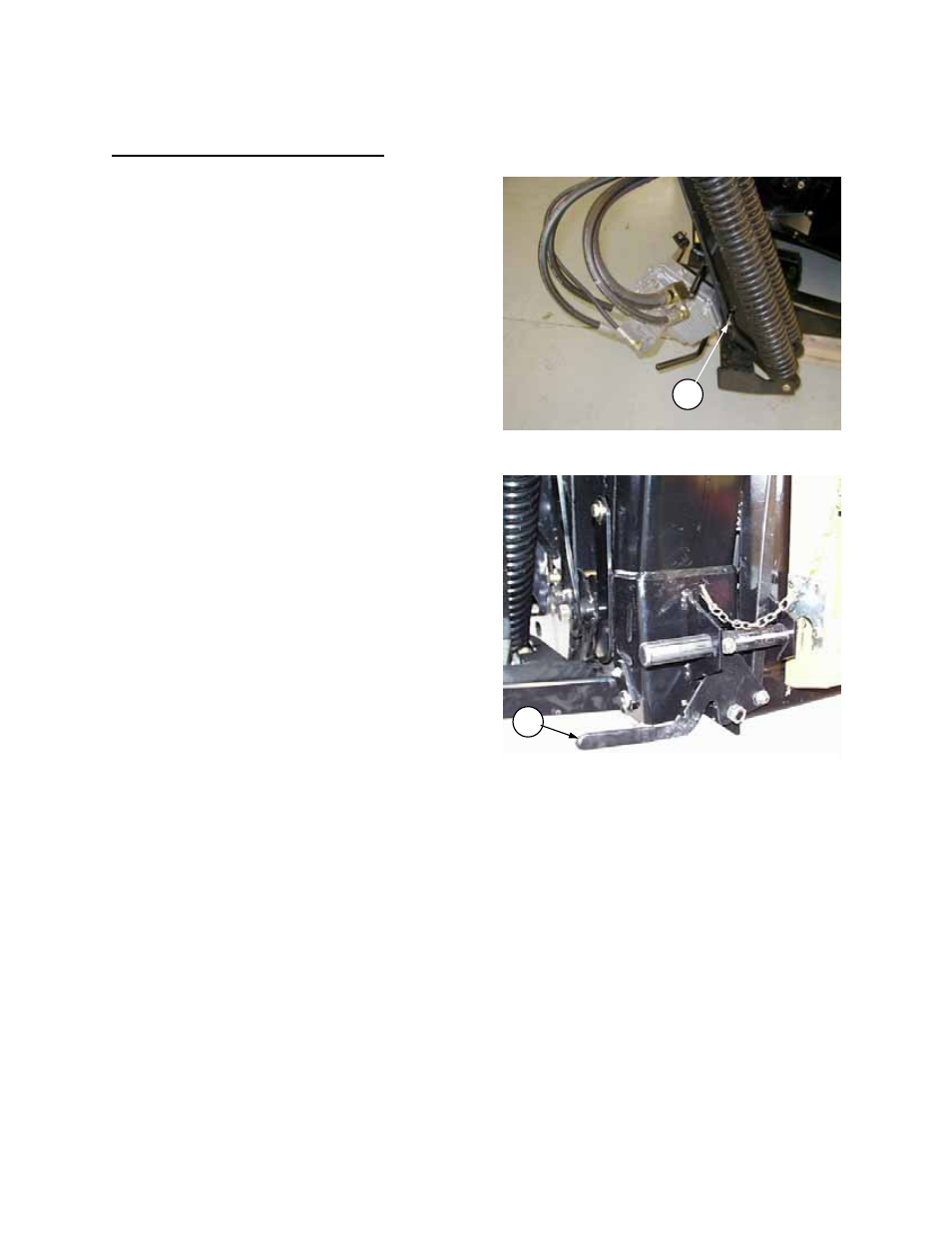

11. Secure pump in storage position on R/H side of
adapter frame using lynch pin (L).
NOTE: Fittings and hoses may need to be re-orientated
to secure for proper storage.
12. Lower latch handle (A) to retract lower pins. This also
rotates upper latches to raised position.
A
LOWER HANDLE TO RETRACT PINS
L
SECURE PUMP IN STORAGE POSITION
