Form # 147459 Issue 11/06 Web Rev_01 45
OPERATION

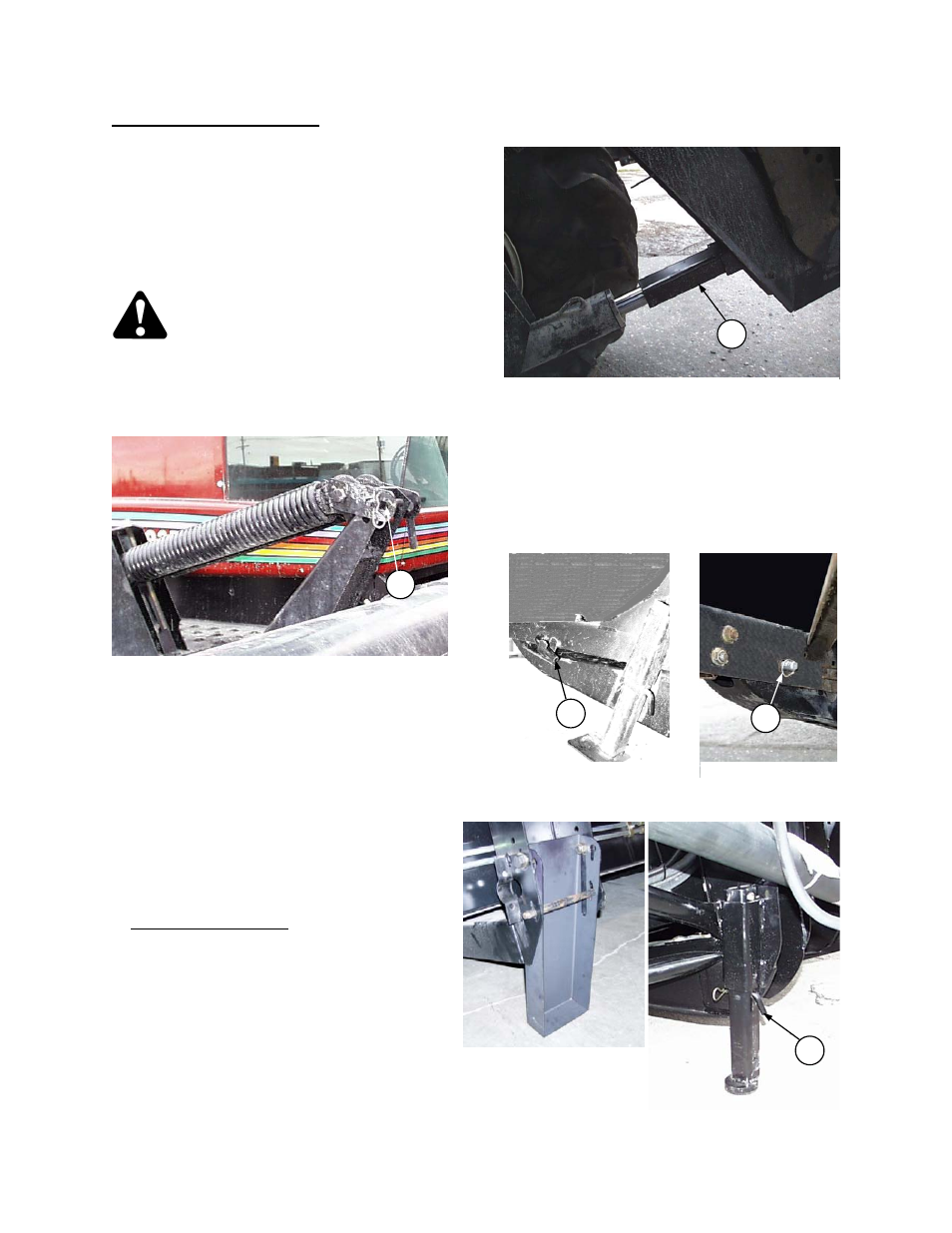

Detaching the Header
1. Activate header lift cylinders (switch on ground
speed lever) to raise header fully. For units with
Header Express Down option, use switch on
side console to bypass the feature. Lower the
reel (second switch on lever). Stop engine and
remove key.
2.
DANGER: To avoid bodily injury from
fall of raised header, always engage
header lift cylinder stops (A) when
working on or around raised header.
3. Remove "L" pin (B), both sides and detach float
springs.
4. Remove pin (C) from lower header leg, both
sides.
5. Lower header stand into position (E).
942 Multi-Crop Header: Place 2 inch (50 mm)
blocks under cutterbar at both ends of header.
6. Disengage header lift cylinder stops.
7. Be sure area is clear of bystanders, then start
engine. Retract lift cylinders to fully lower
header. Stop engine and remove key from
ignition.
A
ENGAGE LIFT CYLINDER STOPS
B
DETACH FLOAT SPRINGS
C
L-PIN DESIGN CLEVIS PIN DESIGN
REMOVE HEADER PINS
C
E
HEADER STAND - DOWN POSITION
963 HEADER STAND
