Form 147141/147459

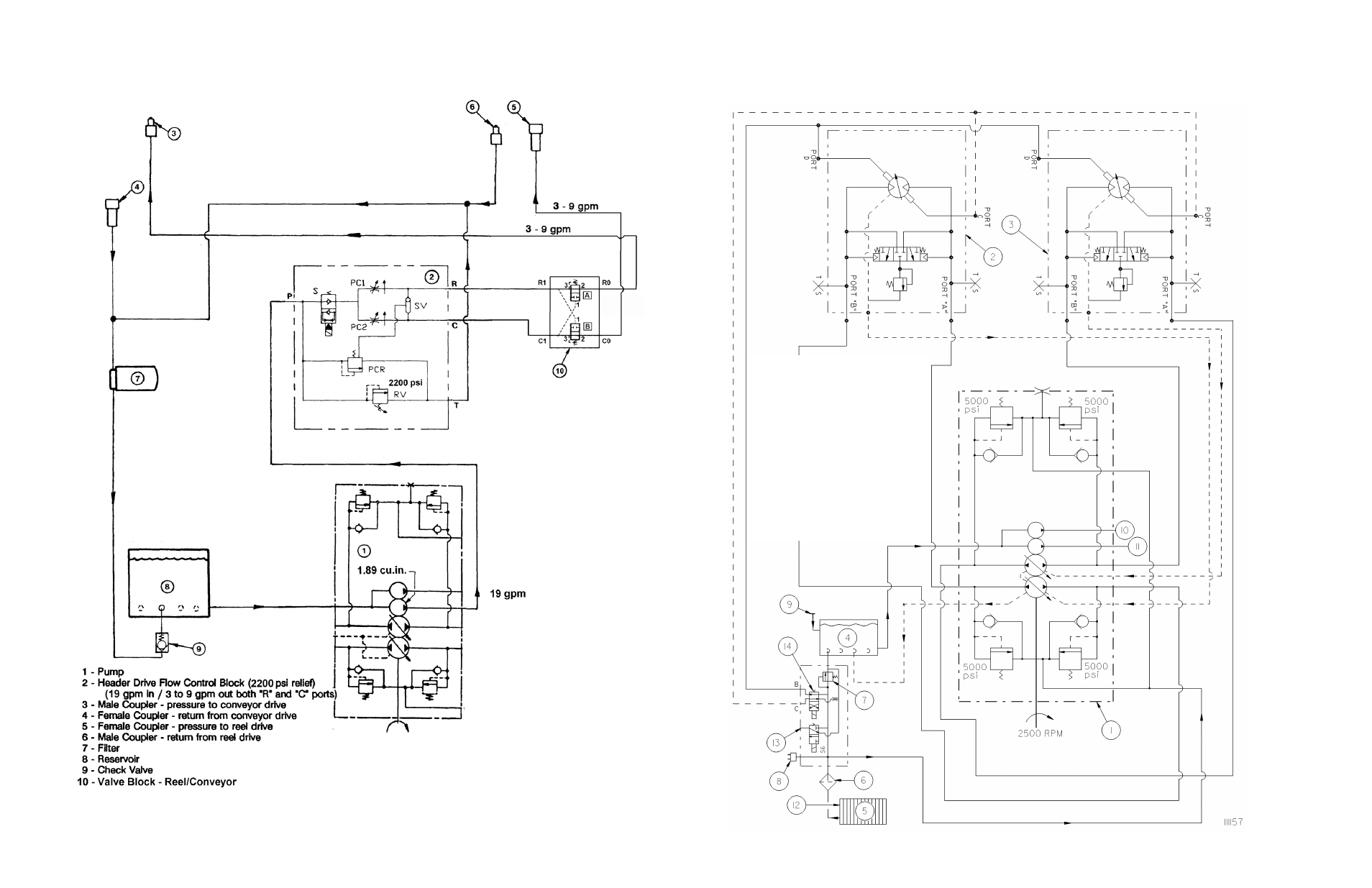

Header Drive: Hydraulic Schematic Traction Drive: Hydraulic Schematic
1 - Pump
2 - Left Wheel Motor
3 - Right Wheel Motor
4 - Reservoir
5 - Oil Cooler
6 - Filter (500 psi)
7 - Charge Pump Relief Valve (cracking
pressure): 250 psi
8 - Oil Pressure Switch (remove to attach
pressure gauge)
9 - Filler / Dipstick
10 - To Cylinder Control Valve (12 gpm)
11 - To Header Drive Control Block (19 gpm)
12 - Return from Cylinder Control Valve (see
Header & Reel Lift Schematic)
13 - To Header Clutch Cylinder
14 - 2 Speed Motor Control Valve
