132
ASSEMBLY
NOTE: The purpose of shipping preparations such
as having no battery is to better adapt the unit for
an extended non-active period. If the machine is to
remain non-active for a long period of time, do not
perform the following assembly work until
necessary. Also, further prepare the unit for storage
as instructed in this manual.

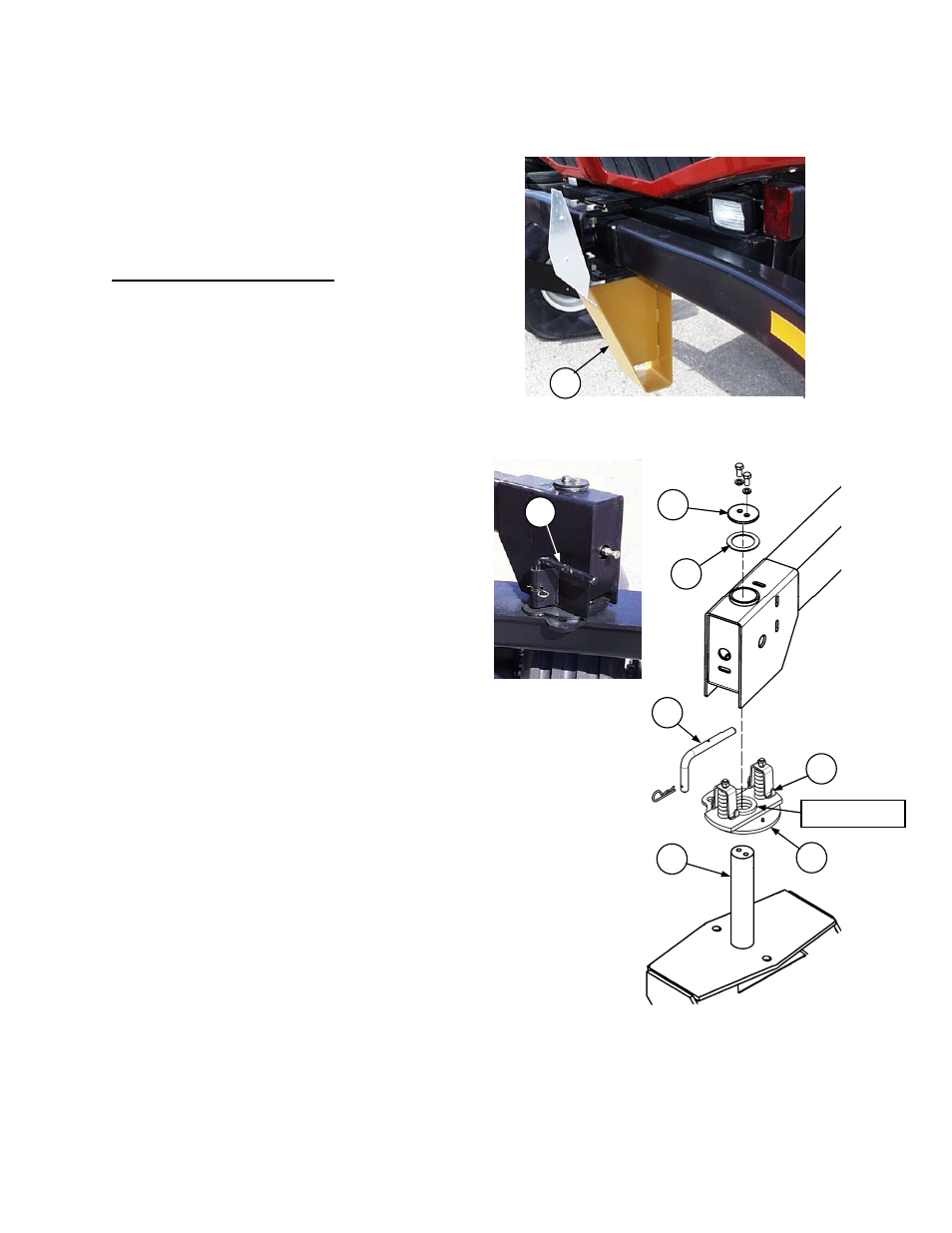

Install Tires
16.5, 11-16 or 7.5 REAR TIRES
1. Lift rear end of windrower with forklift and
remove yellow shipping support (B) from walking
beam. Replace bolts securing walking beam
pivot tube bracket and torque to 390 N
⋅m (290
ft.lbs.).
2. Liberally apply multi-purpose grease to bottom
surface of spring assembly (C). Install assembly
(C) over caster pivot shaft.
3. Install caster (E) into walking beam by raising
the caster and lowering walking beam onto pivot
shaft. NOTE: Ensure tabs (J) on spring
assembly engage slots in bottom of walking
beam.
NOTE: For 7.5 formed casters, elbow of caster
should be to the outside.
4. Grease both sides of thrust washer (F) before
assembly. Place greased washer (F) onto
walking beam.
5. Place cap (G) on top of washer (F) and secure
with two 1/2 x 1 inch hex head bolts, and lock-
washers, ensuring bolts engage threaded holes
in top of caster pivot shaft. Tighten bolts to 75 ft.
lbs. (102 N·m).
6. Place transport lock pin (H) into storage position
and secure with hairpin.
7. Repeat steps 2 to 7 at other caster.
8. IMPORTANT: Grease the caster pivots with
multi-purpose grease, continuing until grease is
forced out top of walking beam. (This may
require 60 to 70 pumps of grease gun.)
9. Place rear casters in the outboard position
(extending behind walking beam) and lower
windrower to ground.
10. Set caster tire pressure at 10 psi (70 kPa) for
16.5 or 11-16 tires and 19 psi (132 kPa) for 7.5
tire.
NOTE: For 16.5 and 11-16 rear tires, factory
set pressures are higher than recommended
operating pressure. Deflate to 10 psi.
REMOVE SHIPPING SUPPORT
B
REAR CASTER INSTALLATION
H
C
E
F
G
H
J
FOAM SEAL
