ASSEMBLY

Two-Way Radio Installation

At the rear of the side console (D), you will find two
auxiliary power points provided for accessories
such as a two-way radio.

To mount antenna to cab roof:

• Remove console lower panel (to right of

operator's seat) and route antenna cable (E)
from the radio into the console.

• Remove instrument panel on cab right post.

Follow cab wiring harness into headliner.

• Remove wiper motor cover and/or right radio

speaker for access to inside of headliner.

Tool Box

Hang the tool box on frame bracket as shown.

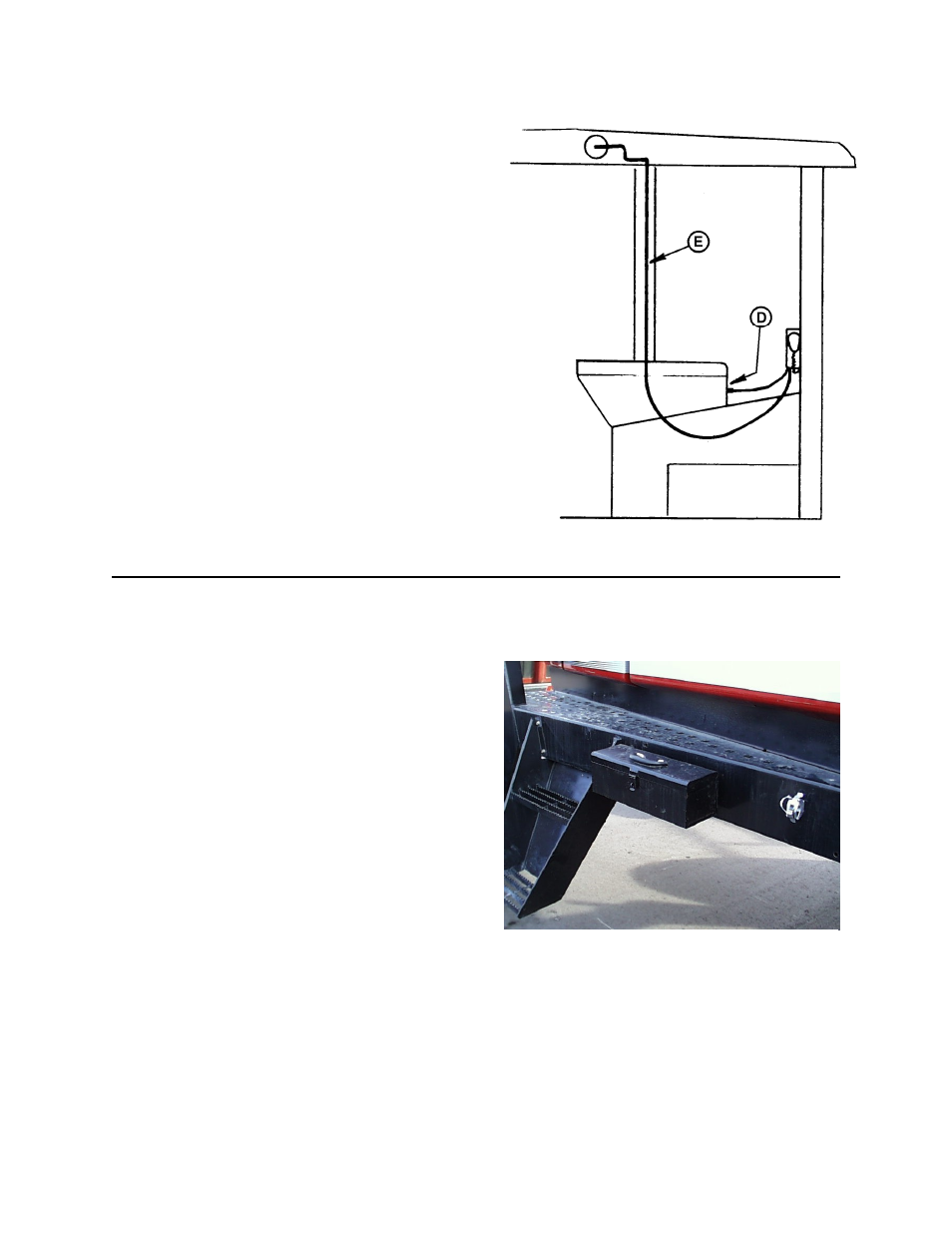

TWO-WAY RADIO ANTENNA ROUTING

ATTACH TOOL BOX
