Form # 147459 Issue 11/06 Web Rev_01 26

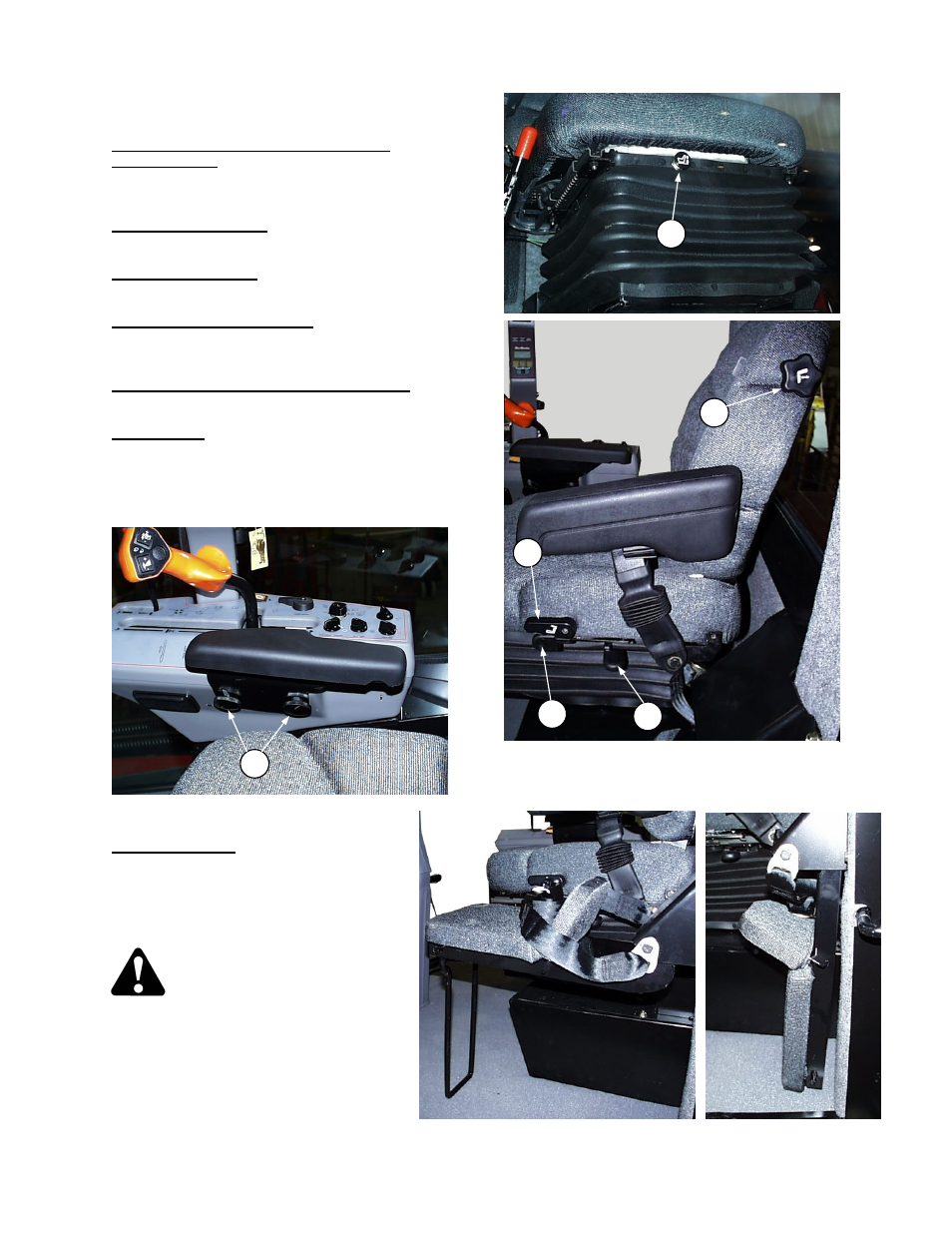

OPERATOR'S STATION
Seat Adjustments
OPERATOR WEIGHT & SEAT HEIGHT
ADJUSTMENT - Press knob (A) in to increase
suspension stiffness and seat height. Pull knob out
to decrease.
SEAT-BACK ANGLE - Pull up on lever (B),
position seat back as desired, and release lever.
LUMBAR SUPPORT - Rotate knob (C) to position
lumbar support as desired.
SEAT FORE-AFT POSITION - To adjust, pull out
on lever (D), move seat forward or rearward to
desired position and release lever.
SEAT FORE-AFT ISOLATOR LOCKOUT - To
lock out fore-aft isolator, push down on lever (E).
ARM RESTS – Left arm rest has two positions,
vertical and horizontal. Raise left hand arm rest
when leaving seat for easier exit and re-entry.
Right arm rest is mounted on side console and is
adjustable vertically at nuts (F) to operator
preference.
TRAINING SEAT – Retractable training
seat complete with seat belt is provided for
use as described below. To extend, raise
seat cushion and pivot front support down
as shown. For storage, collapse front
support and lower seat cushion.
WARNING: The training seat
is provided for an experienced
operator of the machine when
a new operator is being trained.
The training seat is NOT intended as a
PASSENGER SEAT or FOR USE BY
CHILDREN.
USE THE SEAT BELT whenever
operating the machine or riding as a
trainer.
KEEP ALL OTHER RIDERS OFF THE
MACHINE.
F
RIGHT ARM REST
A
D E
B
C
AIR SUSPENSION SEAT
TRAINING SEAT
