SPECIFICATIONS

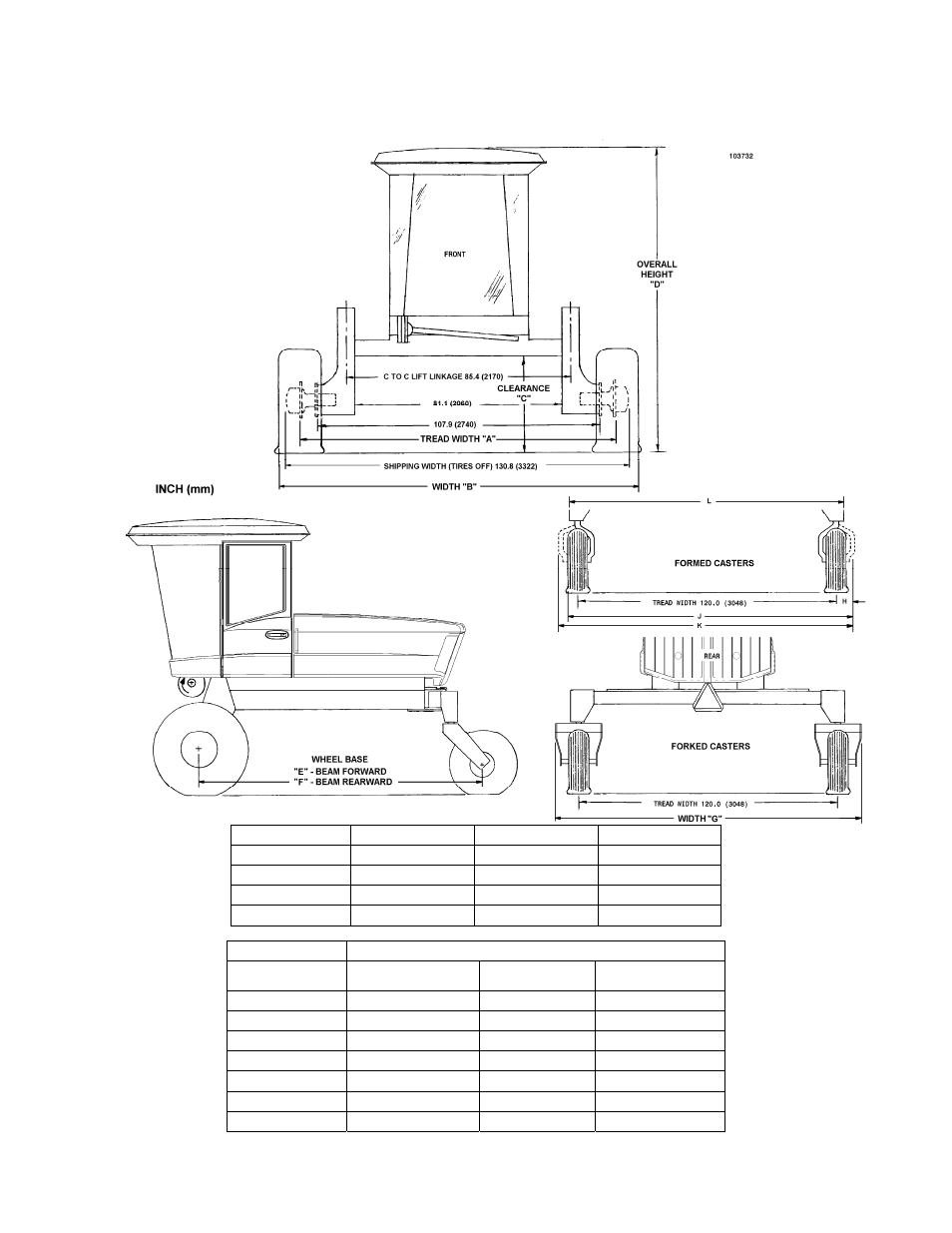

TRACTOR DIMENSIONS:
Weight (varies with tire size):
e.g. With 16.5L-16.1 forked casters & 500-70R24 radial bar tread drive tires.........................................................8516 lbs. (3863 kg)
Drive Tire 500-70R24 540 - 65R24 560 - 65D24
Tread Width A 117" (2972 mm)
117" (2972 mm) 117" (2972 mm)
Front Width B 136” (3455 mm)
137” (3480 mm) 139.3” (3538 mm)
Clearance C 43.4” (1102 mm)
42.1” (1070 mm) 43.0” (1092 mm)
Height D 127.6” (3240 mm)
126.3” (3210 mm) 127.2” (3230 mm)
Drive Tire 14.9 – 24, 500 – 70R24, 540 – 65R24, OR 560 – 65D24
Caster Tire 11.0 – 16 Forked
16.5L - 16.1
Forked
7.5L – 16 Formed
Wheel Base E 118.3" (3005 mm) 118.3" (3005 mm) 114.4" (2906 mm)
Wheel Base F 133.3" (3385 mm) 133.3" (3385 mm) 129.4” (3287 mm)
Rear Width G 142.3" (3615 mm) 142.3" (3615 mm) –
Dim. H (Formed) – – –
Rear Width J – – –
Rear Width K – – 143” (3632 mm)
Rear Width L – – 130.1” (3304 mm)
