Form # 147459 Issue 11/06 Web Rev_01 18
G H J
A
SI
INDICATOR
OPERATOR'S STATION
Mac-Monitor:
PROGRAMMING (continued)
4. Once the desired programming mode is
displayed, enter the selection mode by pressing
and holding switch (A) for more than 5 seconds.
(At 5 seconds there will be an audible tone.
Release switch at tone.)
5. In the “ENG/SI” selection mode the monitor
shows “ENG” or “SI”, whichever unit of measure
is active. To scroll between the two, momentarily
push switch (A). “SI” will cause cutting rate and
cut area totals to display in hectares. As well, the
speedometer will display in kilometers per hour.
When in “SI”, the small triangle at the top left
corner of the digital display will be illuminated.
“ENG” will cause cutting rate and cut area totals
to display in acres and the speedometer to
display in miles per hour. Shipping Position =
ENG.
6. To select either “ENG” or “SI” once it is
displayed, press and hold switch (A) for more
than 5 seconds. (At 5 seconds there will be an
audible tone. Release switch at tone.) This also
advances the monitor to the next programming
mode (CUT WIDTH).
7. Press switch (A) for 5 seconds again to enter the
“CUT WIDTH” selection mode. The monitor
shows the active cut width. To scroll through the
cut widths, momentarily press switch (A) to scroll
in 0.5 foot increasing increments through a
cutting range of 10.0 to 37.0 feet (3.05 to 11.28
meters). Display in feet will have an “F” following
the width, e.g. 24.5 feet cutting width would be
shown as “24.5F”. Shipping Position = 10.0F
NOTE: To advance the cut width in increments
of 5 feet instead of 0.5, turn the header drive
switch on and off again (see page 23).
8. To select a cut width once it is displayed, press
and hold switch (A) for more than 5 seconds. (At
5 seconds there will be an audible tone. Release
switch at tone.) This also advances the monitor
to the next programming mode (TIRE SIZE).
9. Press switch (A) for 5 seconds again to enter the
“TIRE SIZE” selection mode. The monitor shows
the active tire size. Momentarily press switch (A)
to scroll through tire options. This selection will
trigger the correct readout for speedometer,
based on rolling diameter of each tire size.
Shipping Position = 21.5. NOTE: For units with
500 series tires, select the “500” option.
10. To select a tire size once it is displayed, press
and hold switch (A) for more than 5 seconds. (At
5 seconds there will be an audible tone. Release
switch at tone.) This also returns the monitor to
the “ENG/SI” programming mode.
11. To save the settings into memory and return the
monitor into the normal working mode, turn the
key to the “off” position and back on again. This
can be done from any of the three main
programming modes (ENG/SI, CUT WIDTH,
TIRE SIZE), but not from the selection mode
within any of these.

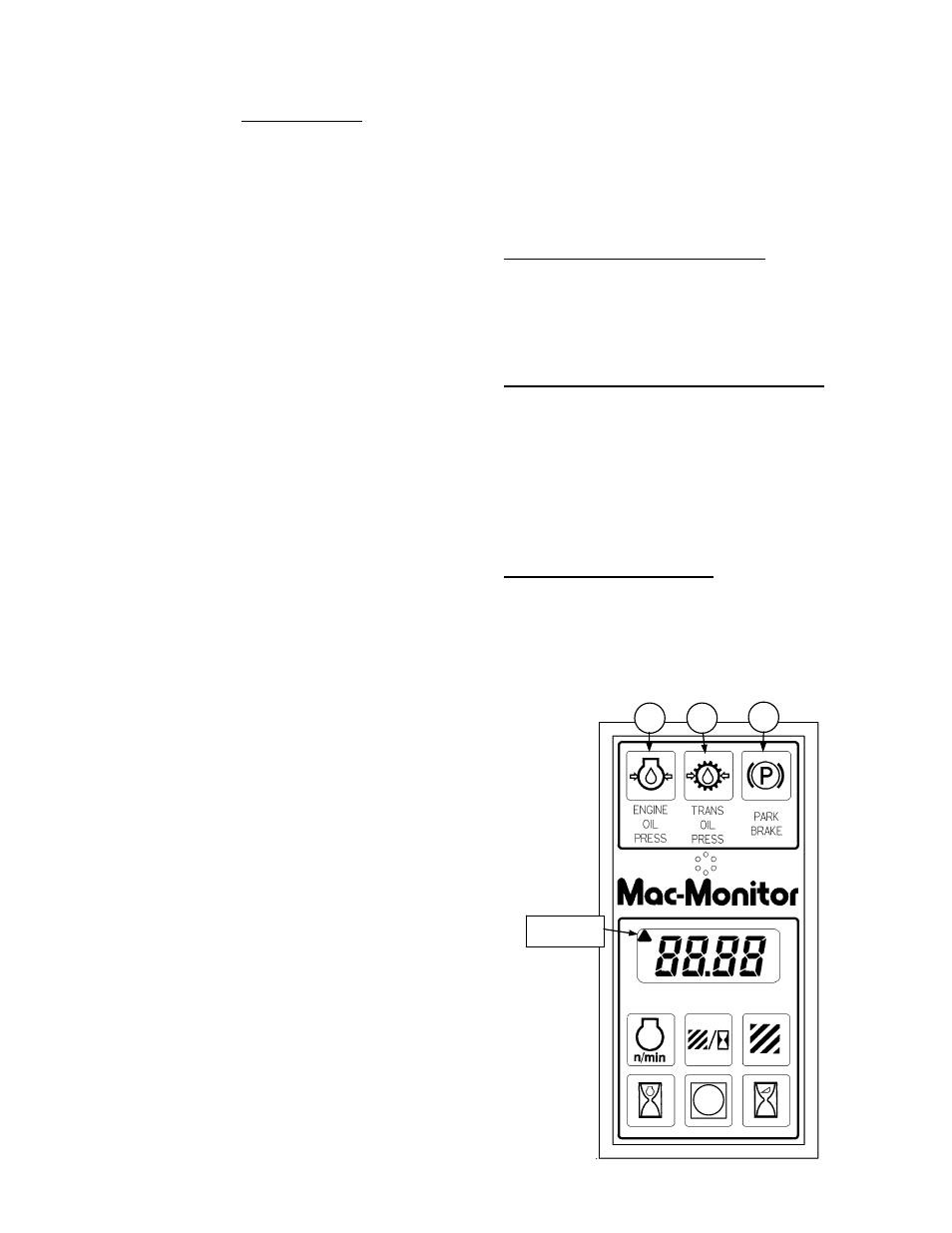

Mac-Monitor Machine Warning System:
Consists of individual lights to indicate low engine
oil pressure, low transmission oil pressure (and
park brake) on. An audible tone will sound
whenever one of the indicator lights is on. In
addition, the tone will sound when a high engine
coolant temperature is indicated.
ENGINE OIL PRESSURE LIGHT (G):
Both light and tone will be activated when ignition
switch is turned ON if engine oil pressure is below
14 psi (98 kPa). If light and tone stay on for more
than a few seconds after engine starts, or if they
activate while engine is running, shut engine off
and check engine oil level.
TRANSMISSION OIL PRESSURE LIGHT (H):
Both light and tone will be activated when ignition
switch is turned ON if transmission oil pressure is
below 150 psi (1035 kPa). Do not drive the
windrower until light and tone go off. If light and
tone stay on after engine starts, or if they activate
during operation, shut engine off and check
hydraulic oil level at reservoir. If oil level is
adequate, measure supercharge relief pressure.
See "Traction Drive: Hydraulics" in Maintenance/
Service section.
PARKING BRAKE LIGHT (J):
This windrower is equipped with hydraulically
activated disc brakes that are automatically
engaged when the ground speed lever and
steering wheel are locked in Neutral. Park brake
light will illuminate when brake is engaged. Brakes
disengage when lever and wheel are moved out of
neutral.
