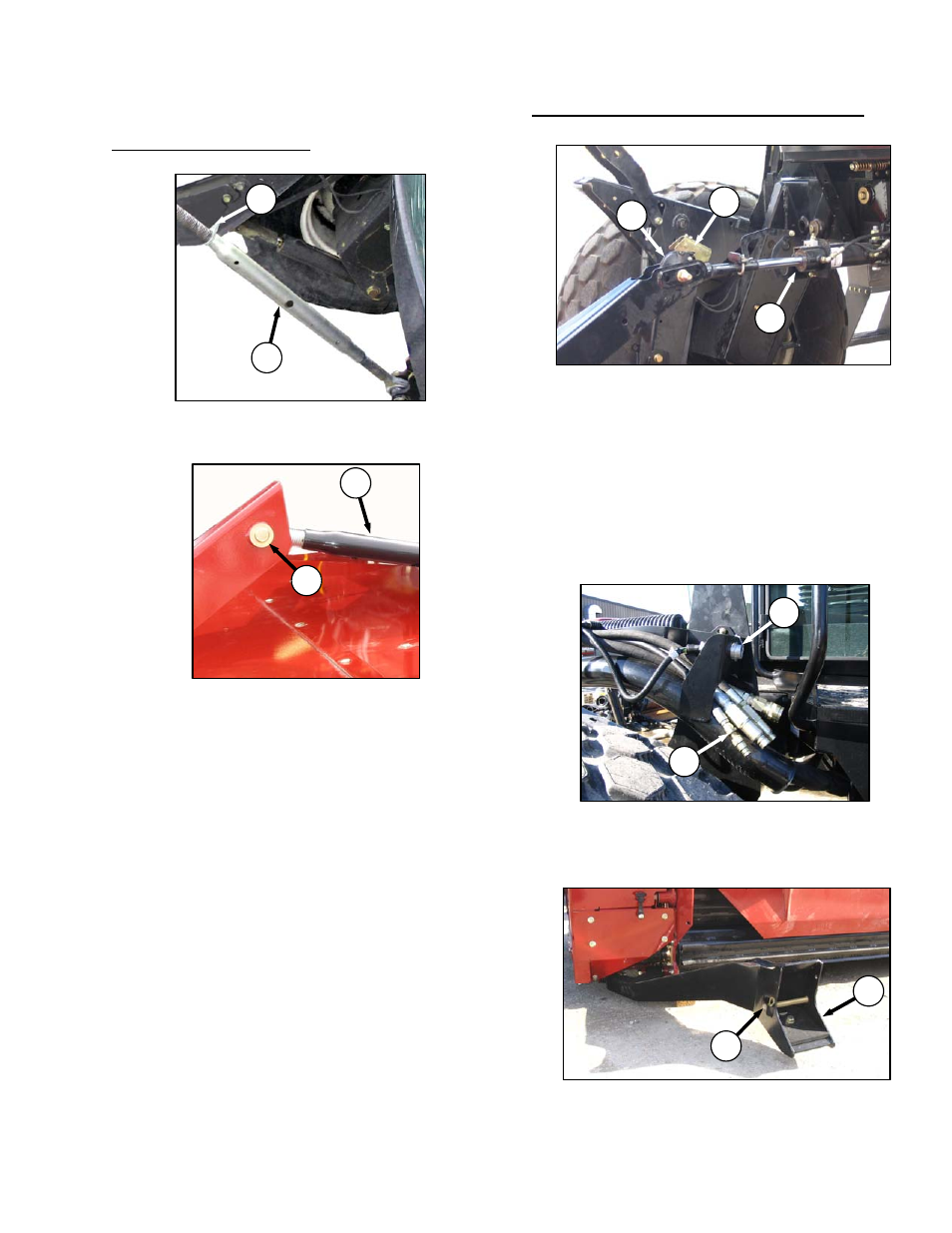

g. Disconnect center-link as follows:
MECHANICAL LINK - M150
1. Loosen nut (E), and rotate barrel (F), to
relieve load on link.
2. Remove cotter pin on pin (G), and remove pin
to disconnect from header. Reinstall pin in
header.
3. Tighten nut (E) against barrel (F). A slight tap
with a hammer is sufficient.
HYDRAULIC LINK - M200 STD, M150 OPTION
1. Activate HEADER TILT cylinder switch on
GSL to release load on center-link cylinder
(H).
2. Lift hook release (J), and lift hook (K), off
header pin.
NOTE
If optional center-link lift cylinder is installed,
lift release (J), and then operate the link lift
cylinder from the cab to disengage the
center-link from the header.
h. Disconnect header drive hydraulics (L) and
electrical harness (M). Refer to the R80 Header
Operator’s Manual.
i. Slowly back windrower away from header.
j. Reinstall pins (A) in header boots (B).
